RV Solution (2.56kWh | 5.12kWh | 7.68kWh)

SKU: RNG-RV-7KWH-US

Spring Sale: Log In and Add to Cart to Enjoy Members-Only Extra 12% OFF!

Limited Time: Mar. 3-31

$3,799.99
+   Renogy Rays after purchase.
Log In About Rays

  • All-in-one RV power kit — designed for a seamless, stress-free setup from start to finish
  • 2.56kWh | 5.12kWh | 7.68kWh battery storage with 400W | 600W N-type Panels
  • Power all your essentials with reliable 2000W | 3000w pure sine wave inverters
  • Every component is pre-tested for perfect compatibility
  • Smart and expandable design — grows with your travel needs

❓Need help before buying? Call Us: 1 (909) 287 7111

Solution
Quantity：
Payment Methods
Delivery Methods
Delivery time: 1-3 business days.Shipping Policy
Make an appointment
Lifetime Customer Support
Secure Payment with 0% APR Intallments
Description
Calculator
Diagram
Includes
Specification
Downloads
FAQ
Reviews
Renogy RV Solution
Unleash full potential of your next RV trip with one-stop solar suites

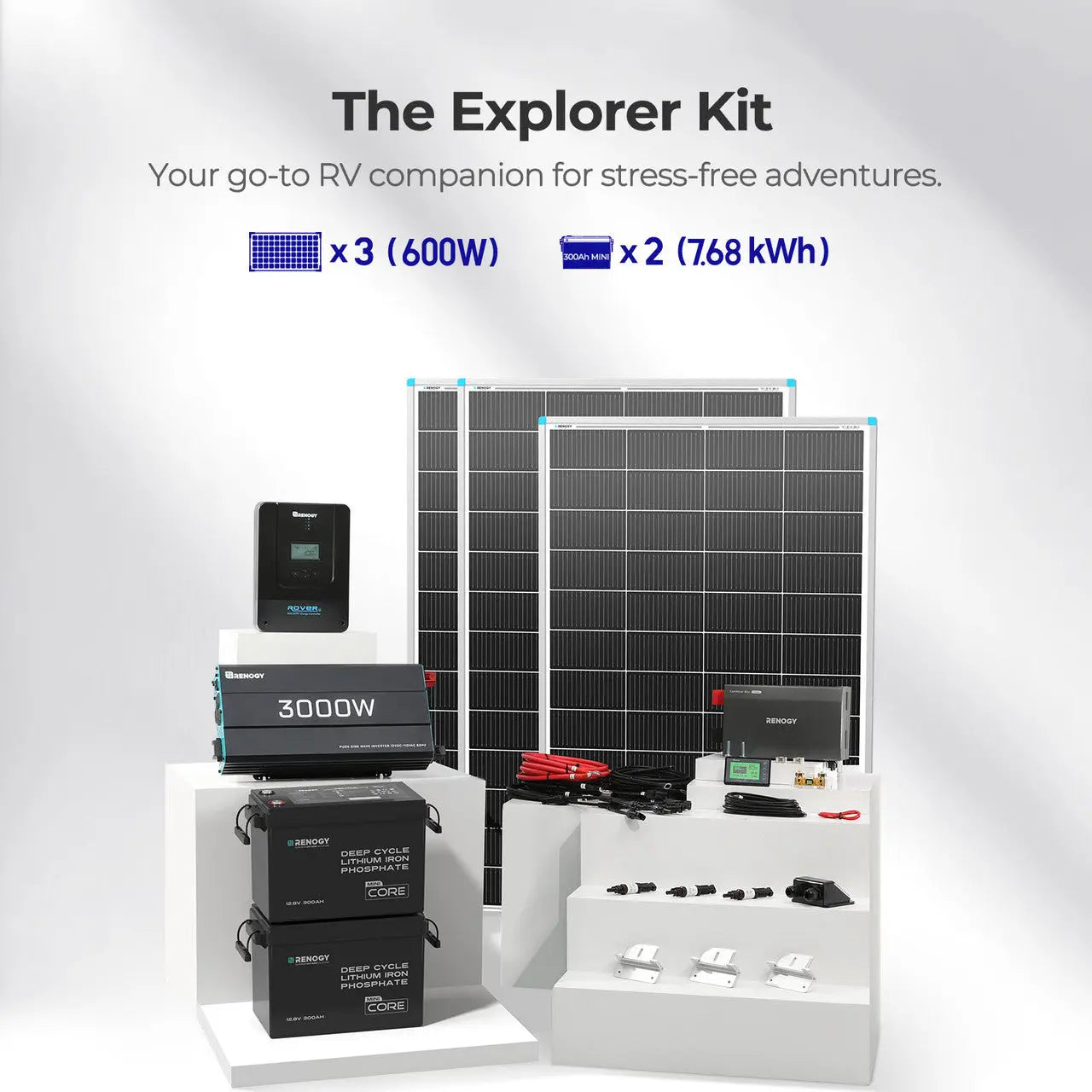

7.68kWh
5.12kWh
2.56kWh

One-stop Solution for Off-Grid Convenience

This comprehensive solution ensures you have all the necessary tools and resources to enjoy the convenience of a self-sustained lifestyle.

Right Capacity for Your Needs

Choose the exact capacity you need without overpaying for unused power. It’s efficiency meets affordability.

Tested Safety

Every part in the kit undergoes strict compatibility testing to ensure stable current and voltage output—eliminating risks of short circuits or overloads right from the start. Plus, standard expansion ports let you add extra panels or batteries later, scaling your power system effortlessly.

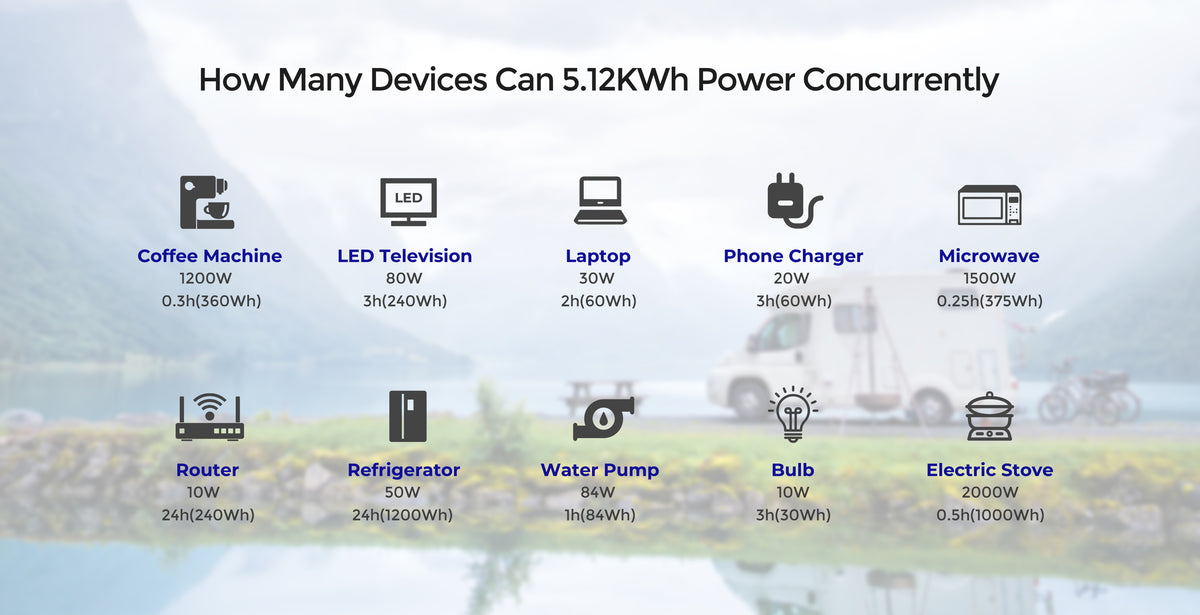

What They Can Power
Check out our handy reference of compatible devices
5.12kWh
2.56kWh

Which Kit is Right for You? Calculate Now

RV Power Configurator

Which RV fits your lifestyle?

Select your vehicle type to establish the baseline.

Customize your power.

Toggle appliances and adjust daily usage.

Roof Air Conditioner 1500W
Refrigerator 60W (Average)
Induction Cooktop 1800W
Starlink & Laptop 100W
Microwave 1200W
Lights & Pump 40W

Your Estimate

0 Wh
⚡️

Analyzing...

...

Daily Usage 0 Wh
View Pricing

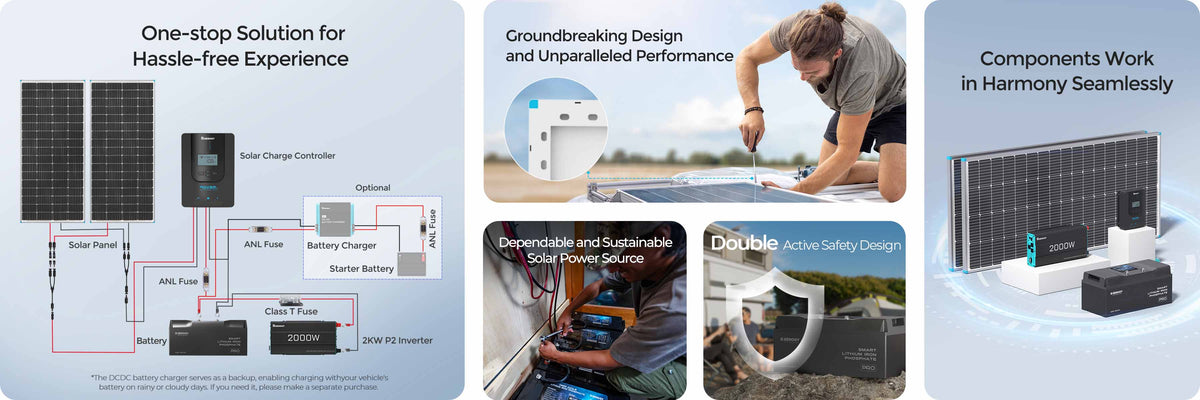

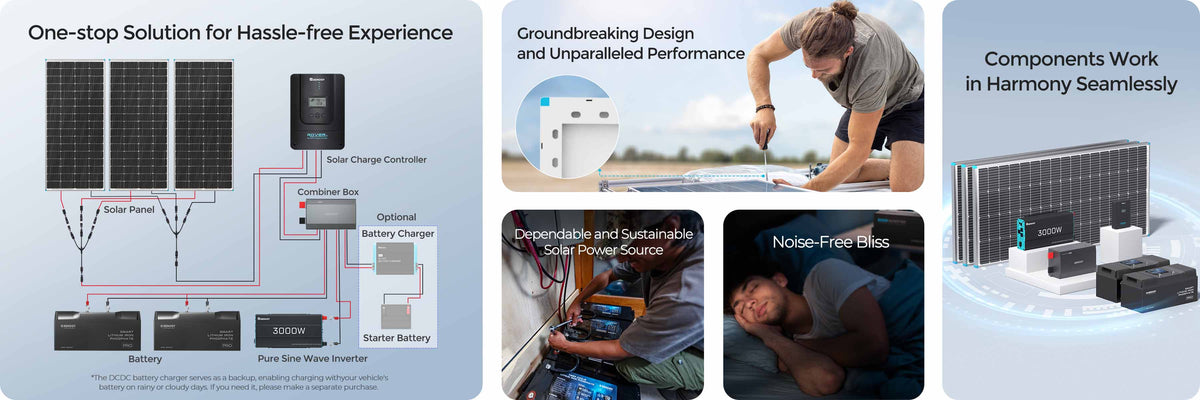

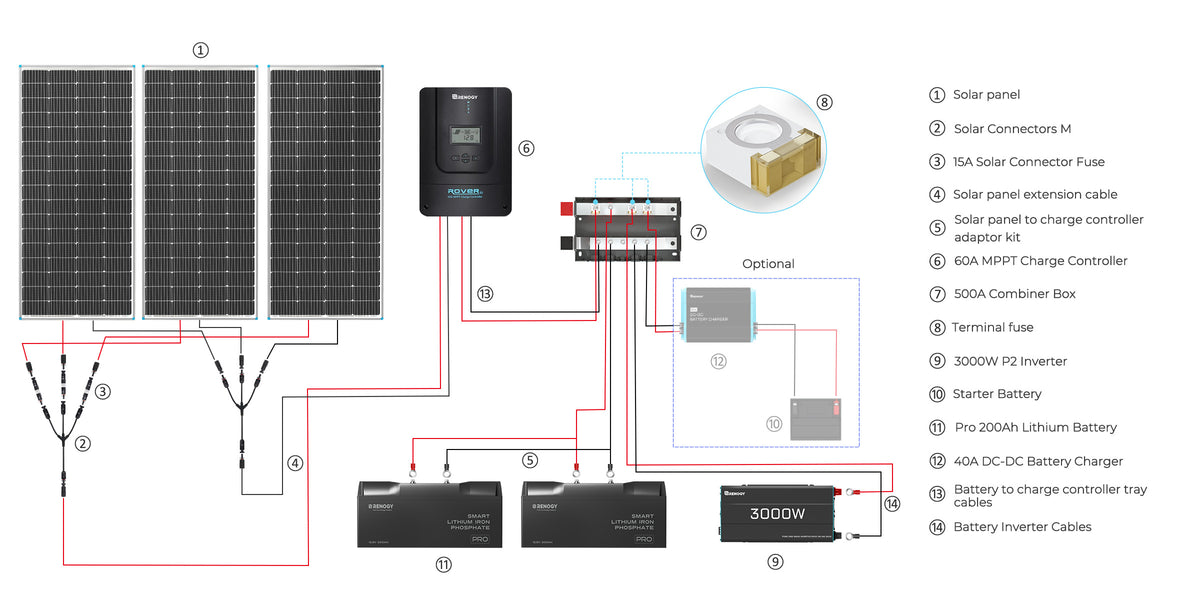

RV System Overview
Refer to the wiring diagram for step-by-step instructions.
5.12kWh
2.56kWh

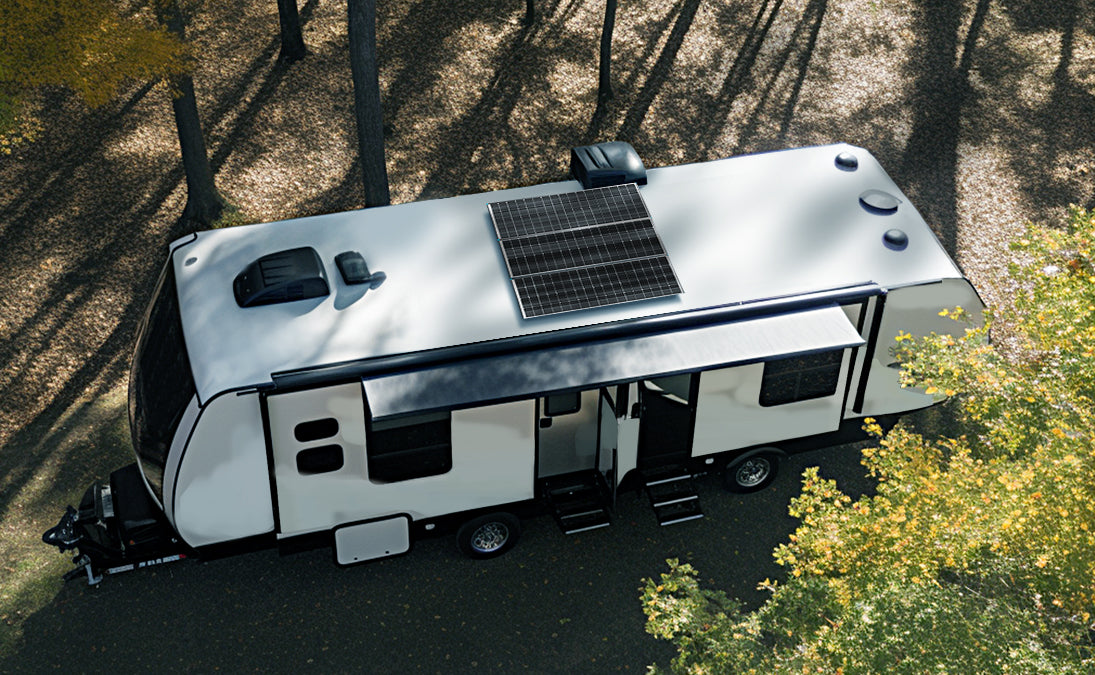

How They Explore

Any scenarios. Any conditions.

Upgrade Options for Future Expansion

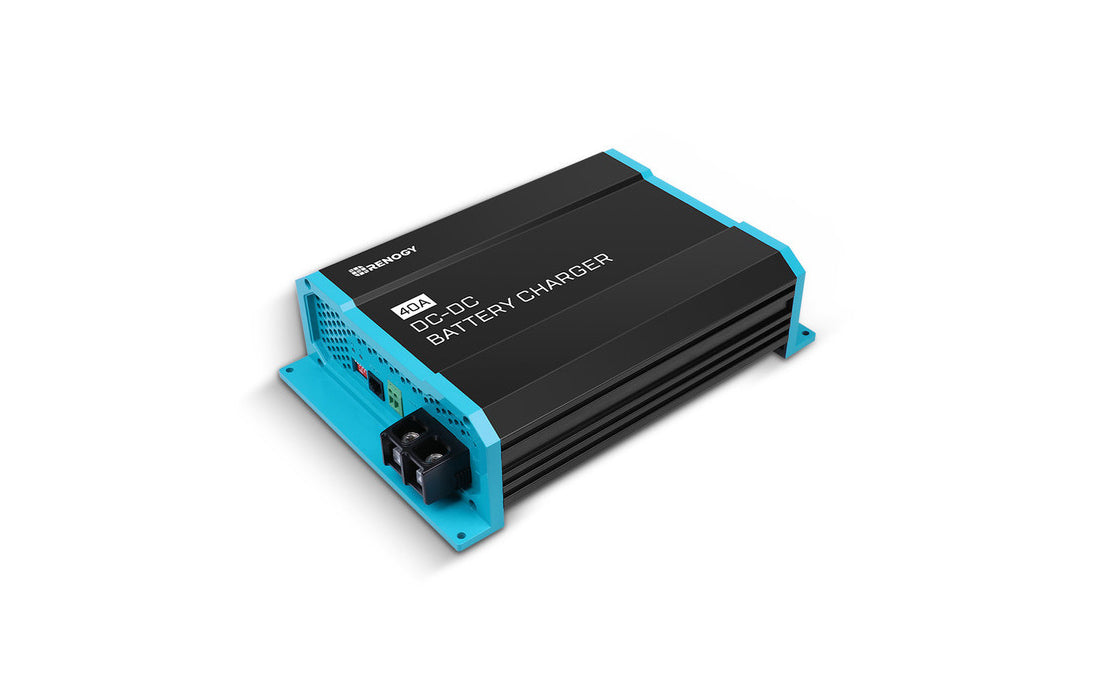

  • Add DC-DC Battery Charger

    Enjoy uninterrupted charging, even on rainy or cloudy days, with the DC-DC Battery Charger that directly harnesses energy from your vehicle's battery.

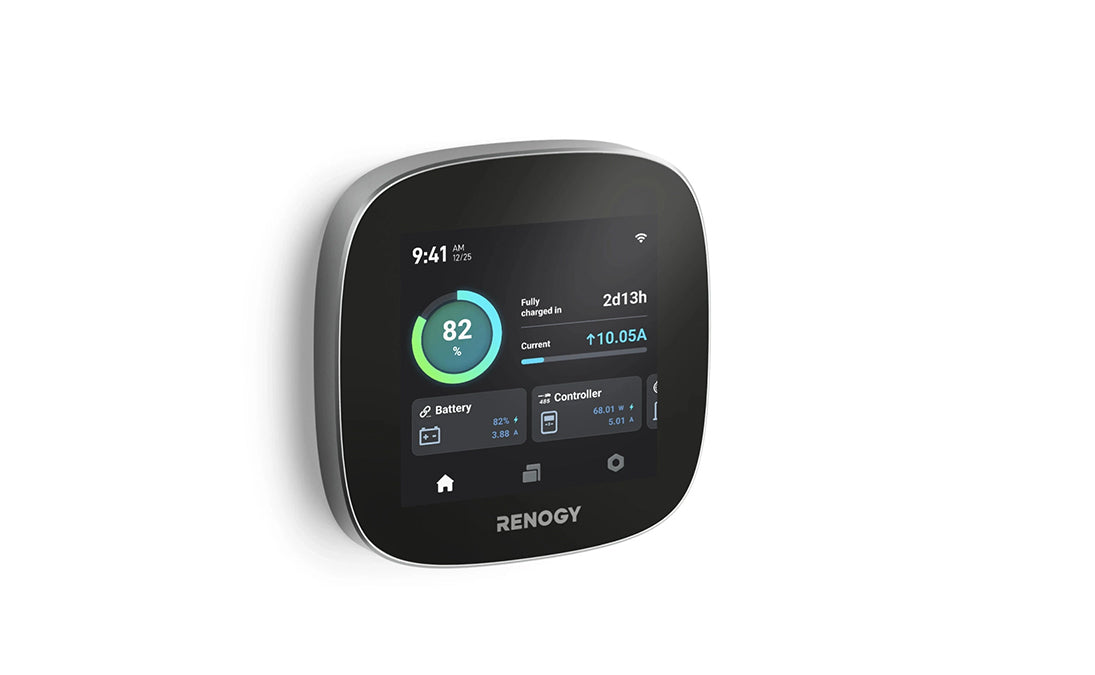

  • Add Bluetooth Module

    Stay connected and monitor your system's status in real-time with the Bluetooth Function.

  • N-Type 16BB 200W 175W 100W Rigid Solar Panel Renogy

    Expand Your Solar Output

    Expand your system's energy capacity by adding another 200W rigid solar panel, enabling faster battery charging.

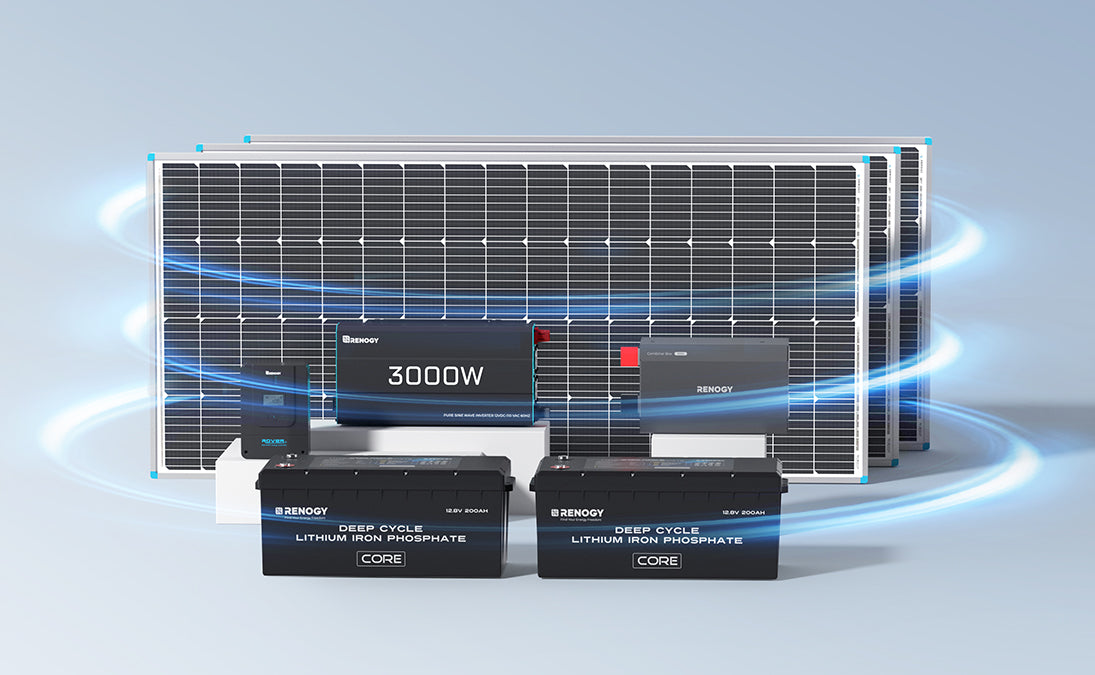

7.68KWh RV Solution

5.12KWh RV Solution

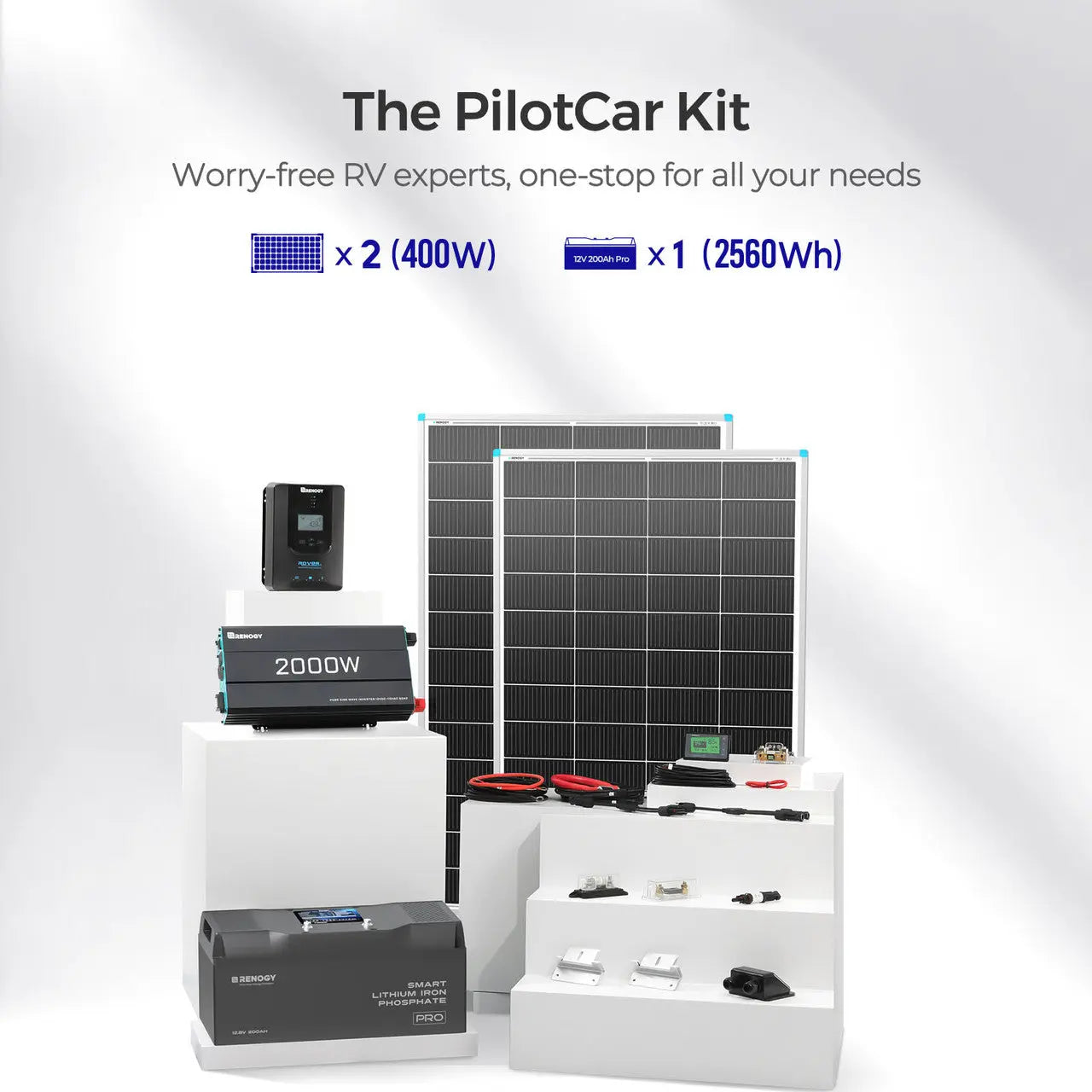

2.56KWh RV Solution

Specifications

200W-Specifications

Max Power at STC
200W
Open Circuit Voltage
37.44V
Short Circuit Current
6.85A
Optimum Operating Voltage
31.03V
Optimum Operating Current
6.45A
Maximum System Voltage
600VDC
Maximum Series Fuse Rating
15A
Module Efficiency
20.7%
Operating Temperature:
-40°F~185°F / -40℃~85℃
Dimensions:
1262x764x30mm/49.7x30.1x1.2in
Weight:
10.6kg/23.4lbs

ROVER 60A MPPT Solar Charge Controller

Nominal Voltage
12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
Rated Charge Current
60A
Rated Load Current
20A
Max. PV Input Power
800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Max. PV Input Voltage
140VDC
Terminals
25mm2 4AWG
Operating Temperature
-31 °F to 113 °F (-35 °C to 45 °C )
Temperature Compensation
-3mV/°C/2V (default)
Dimensions
285 x 205 x 102mm (11.22 x 8.07 x 4.00in)

ROVER LI 40A MPPT CHARGE CONTROLLER

Nominal System Voltage
12V/24V Auto Recognition
Max. PV Input Voltage
100 VDC
Max Battery Voltage
32V
Rated Charge Current
40A
Max. PV Input Power
12V/520W, 24V/1040W

Pro - Renogy 12V 200Ah Smart LiFePO4 Battery w/ Bluetooth & Self-Heating

Battery Type
Lithium Iron Phosphate
Nominal Voltage
12.8V
Rated Capacity
200Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Maximum Charge Current
200A
Maximum Discharge Current
200A
Peak Discharge Current
270A@30s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD, 80% EOL)
Charge Temperature Range
-4°F to 131°F (-20°C to 55°C)
Discharge Temperature Range
-4°F to 140°F (-20°C to 60°C)
Storage Temperature Range
-13°F to 149°F (-25°C to 65°C)
Operation Relative Humidity
10% to 95%
Connection Method
Parallel (Up to 8)
Communication Protocol
Bluetooth
Terminal Bolt
M8 x 1.25 x 12 mm
Long Terminal Bolt
M8 x 1.25 x 16 mm
Recommended Terminal Torque
70.8 inch·lbs / 8 N·m
Housing Material
PC/ABS
Protection Rating
IP67
Flame Retardancy
UL94 V-0
Dimensions
18.4 x 8.4 x 8.2 in (467 x 212 x 208 mm)
Weight
50.7 lb (23 kg)
Material and Workmanship Warranty
7-year prorated material and workmanship warranty
Certifications
UL, MSDS, UN38.3, FCC, CE, PSE, and UKCA
Terminal Bolts (2)
2 x M8 x 1.25 x 12 mm
Long Terminal Bolts (2)
2 x M8 x 1.25 x 16 mm

Core Mini - 12.8V 300Ah Lithium Iron Phosphate Battery

Battery Type
Lithium Iron Phosphate
Voltage
12V
Rated Capacity
300Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Maximum Charge Current
150A
Maximum Discharge Current
200A
Peak Discharge Current
380A@10s
Cycle Life (0.5C, 25℃)
5000 Cycles (80% DOD)
Connection Method
Series & Parallel (4S4P)
Terminal Bolt Size
M8 x 1.25 x 12 mm & M8 x 1.25 x 16 mm
Dimensions
15.12 x 7.64 x 9.96 in / 384 x 194 x 253 mm
Weight
55.1 lbs / 25.0 kg

2000W Pure Sine Wave Inverter

Continuous Output Power
2000W
Output Voltage
120V
AC Output Sockets
3
USB Power Port
5V/2.1A
Peak Power Rating
4000W
Output Frequency
60 Hz ± 0.1%
AC Terminal Block
1
Power Output Control
AC On/Off Switch, and Remote Control
Dimensions
17.8 x 8.6 x 4 in
Weight
11.7 lb

3000W Pure Sine Wave Inverter

Continuous Output Power
3000W
Peak Power Rating
6000W
Output Voltage
120V
Output Frequency
60 Hz ± 0.1%
AC Output Sockets
3
AC Terminal Block
1
USB Power Port
5V/2.1A
Power Output Control
AC On/Off Switch, and Remote Control
Dimensions
18.9 x 9.0 x 4.0 in
Weight
12.5 lb

Downloads

Warranty

Download

Solution Handbook

Download

5.12kWh Manual

Download

Frequently Asked Questions

How will these solar kits be shipped?

Due to different logistics standards for different products, we will ship them at the same time, but they may be split into different packages. We appreciate your understanding and patience. For more details, you can read more about our shipping policy here. If you have any questions about your order or need further assistance, please contact us.

What is the warranty of the system?

The warranty of the system varies depending on its individual components. Specifically, our solar panels come with a 10-year craftsmanship warranty and a 25-year warranty for 80% of their original output. The 200Ah core battery is backed by a 5-year warranty, while the inverter enjoys a 2-year warranty. We strive to provide the most comprehensive and reliable warranty policy to ensure that your system operates at its best at all times.

If I want to expand my system in the future, what advice can you give me?

If you plan to expand your system in the future, here are a few recommendations to consider:

DC-DC Battery Charger: Consider adding a DC-DC battery charger that can harness energy directly from your vehicle's battery. This will ensure that you have a backup power source, even during rainy or cloudy days when solar panels may not generate enough energy.

Renogy One Core: The Renogy One Core is a great addition to your system. It allows you to stay connected and monitor your system's status in real-time using Bluetooth functionality. This provides valuable insights into your system's performance and helps you make informed decisions.

Remember to consult with a professional or the manufacturer's guidelines to ensure that your system's components are compatible and can be safely integrated.

What if there is a rainy day and the solar panel cannot produce electricity?

You have two backup options:

1. You can utilize a DC-to-DC battery charger to charge from your car battery as a backup power source.
2. Alternatively, you can consider purchasing a transfer switch that enables the seamless transfer of power from the grid to ensure continuous energy supply.

Is it necessary to have the Bluetooth Module?

The Bluetooth module is not strictly necessary as an upgrade. However, it provides a function that allows you to monitor your system in real-time.

What should I do if my solar kit fails to work properly?

We’ve prepared a step-by-step troubleshooting checklist to help you resolve common issues efficiently. Please follow the checklist for systematic diagnosis. If the problem persists after completing all troubleshooting steps, feel free to contact our customer support team.
