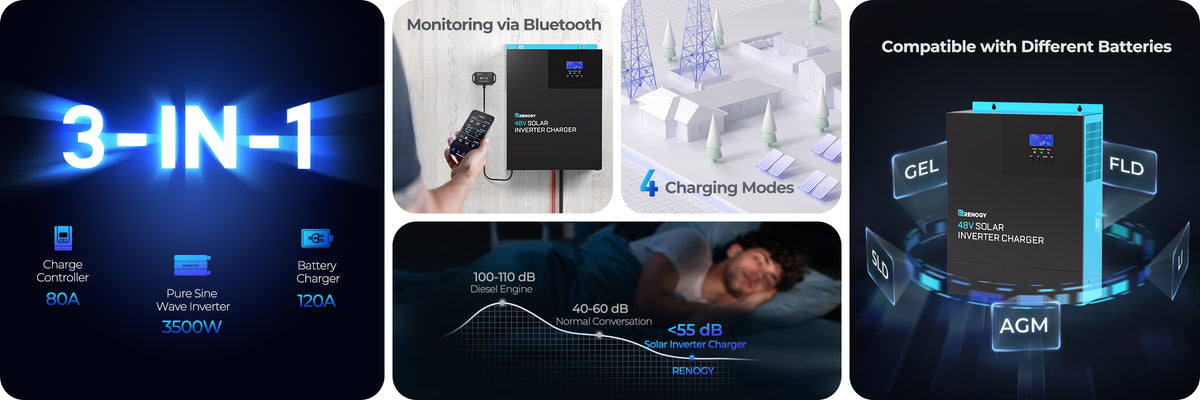

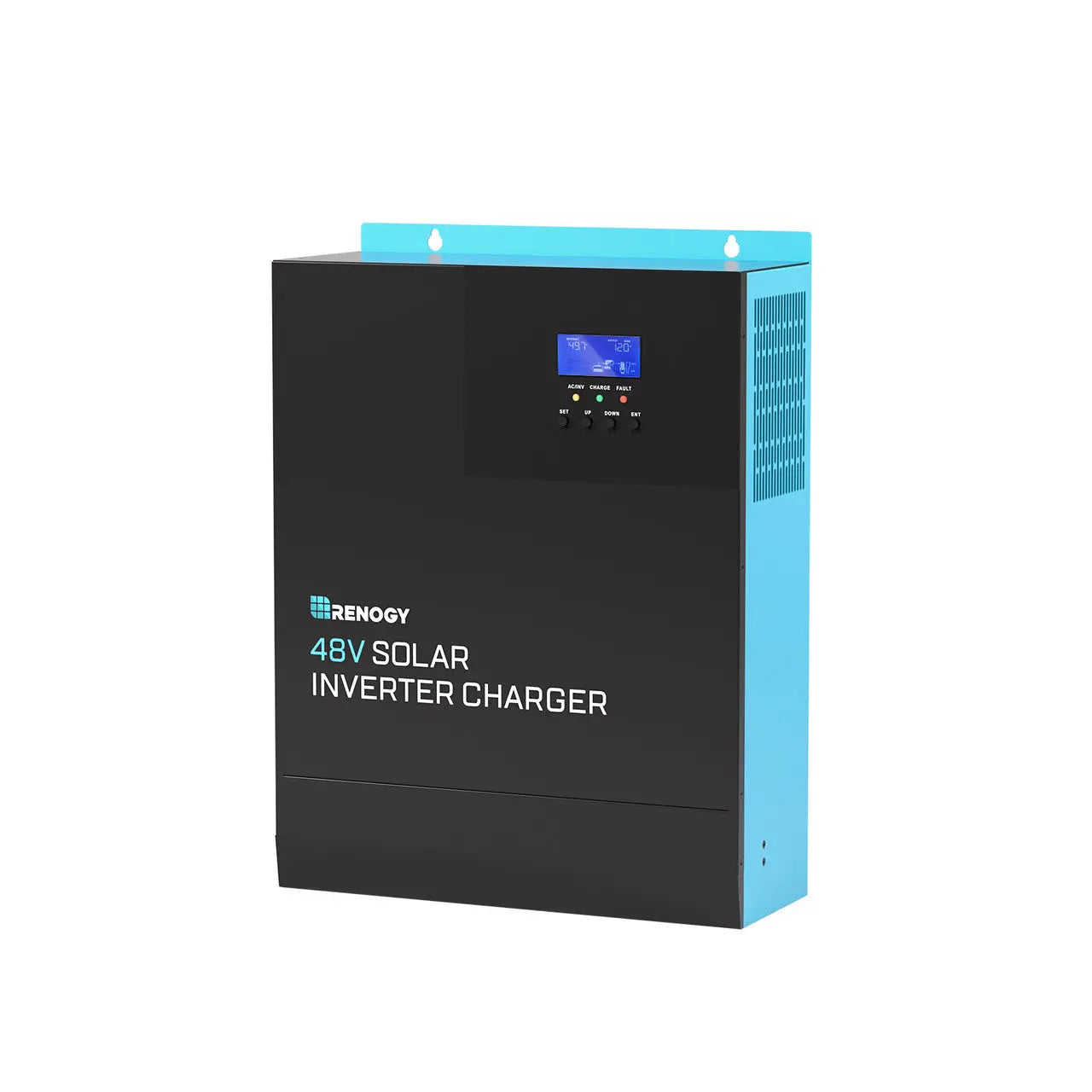

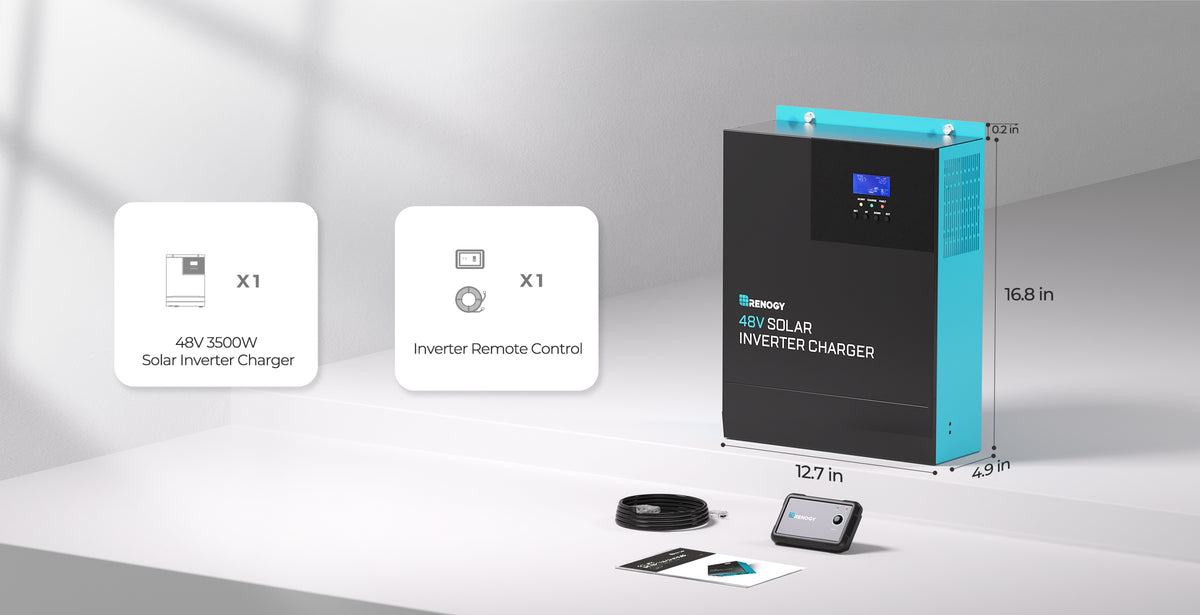

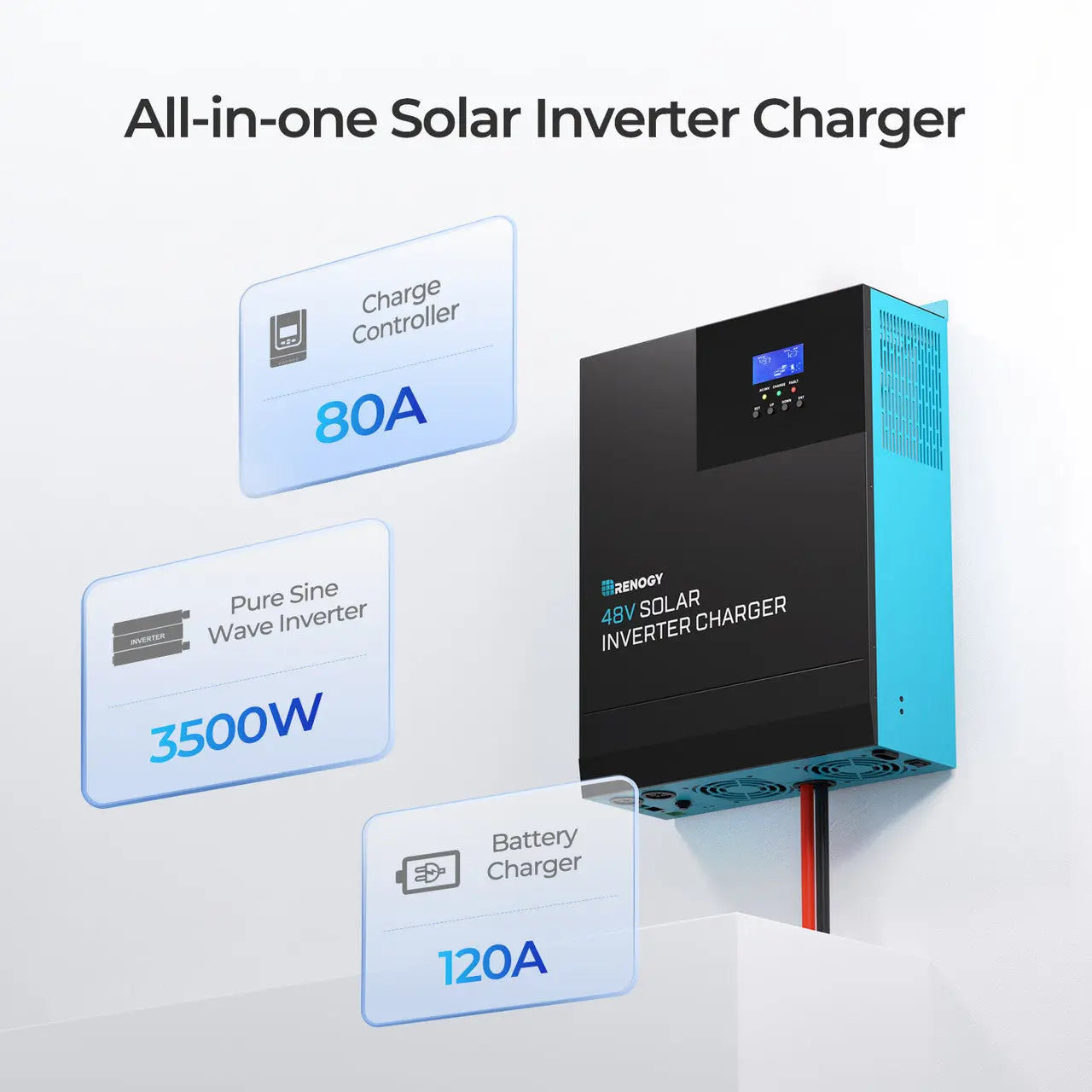

An inverter charger with MPPT (Maximum Power Point Tracking) is an integrated unit that combines a pure sine wave inverter, MPPT solar charge controller, and battery charger into one compact solution. This allows you to enjoy stable power from both solar energy and the utility grid, ensuring your system stays powered in any situation. The Renogy 3500W 48V Solar Inverter Charger offers solar charging, AC/generator battery charging, and battery inverting in a single, efficient unit to elevate your off-grid system to a hybrid level.

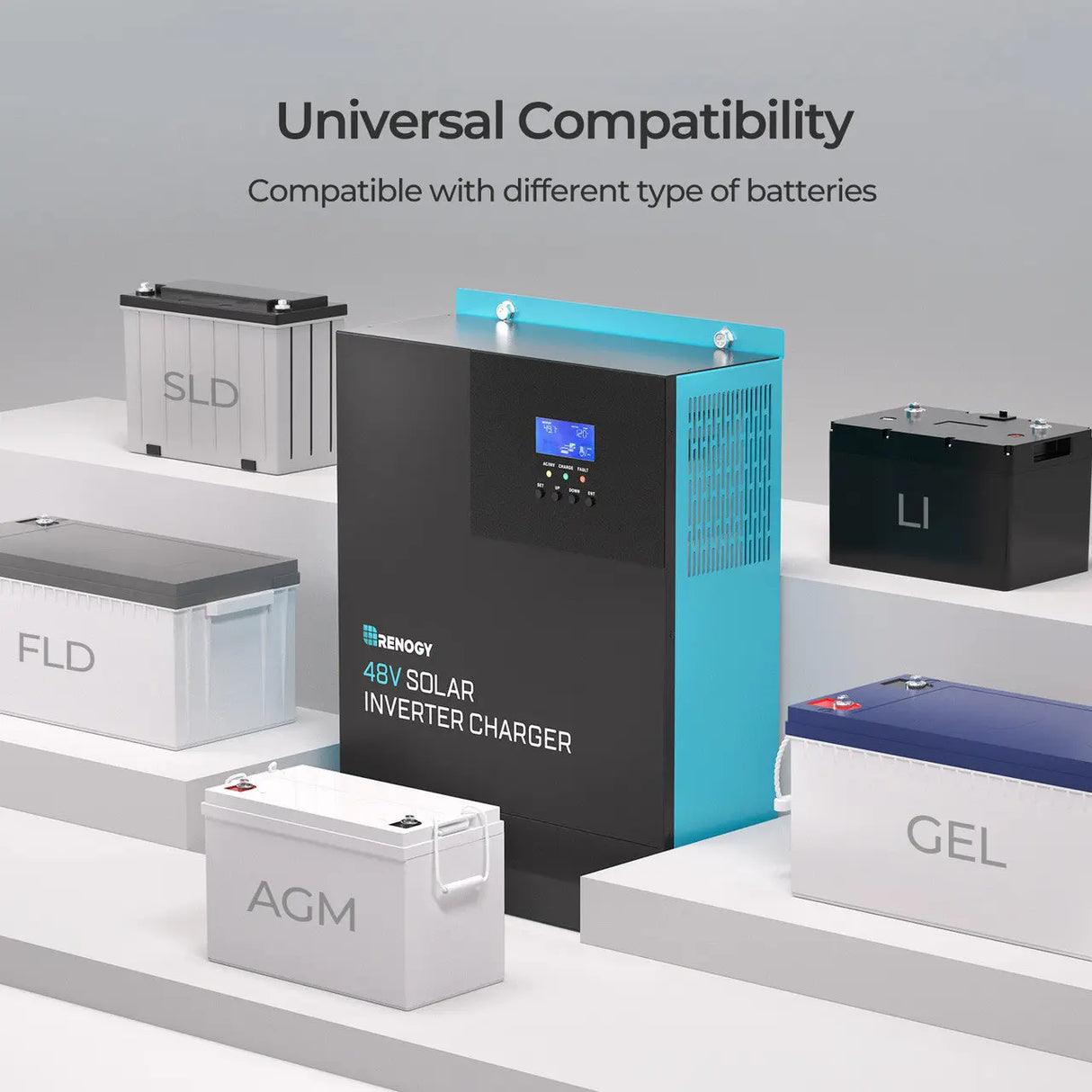

Yes, this inverter is compatible with 48V battery banks and will charge your batteries using solar panels and AC/generator power, ensuring your system remains charged and operational.

No, this inverter is designed to work specifically with 48V battery systems and is not compatible with 24V systems.

1. Sizing the Right Power Output:

• Ensure your inverter can handle at least 1½ times the continuous load you expect to use regularly.
• Add up the wattage of each device you plan to run simultaneously to determine the right inverter size.

2. Check Your Battery Voltage:

• Match the inverter to the voltage of your battery bank.
• Example: A 48V battery bank requires a 48V inverter.

3. Size Your Installation Space:

• Ensure the inverter fits in the designated space with enough room for proper ventilation and safety.

4. Remote Operation:

• Renogy pure sine inverters offer convenient remote control options, including the BT-2 and DC HOME APP, allowing you to monitor and control the unit remotely.

Modified Sine Wave: These are older, less expensive inverters suitable for basic appliances. They may cause issues with delicate electronics or audio equipment and can lead to equipment running hotter than usual.

Pure Sine Wave: These inverters are more versatile and provide cleaner power with very low harmonic distortion, similar to utility-supplied electricity. They are ideal for running inductive loads like microwaves and motors more efficiently, and they reduce electrical noise in devices such as computers, fans, fluorescent lights, and audio equipment. They also prevent crashes and glitches in sensitive electronics.

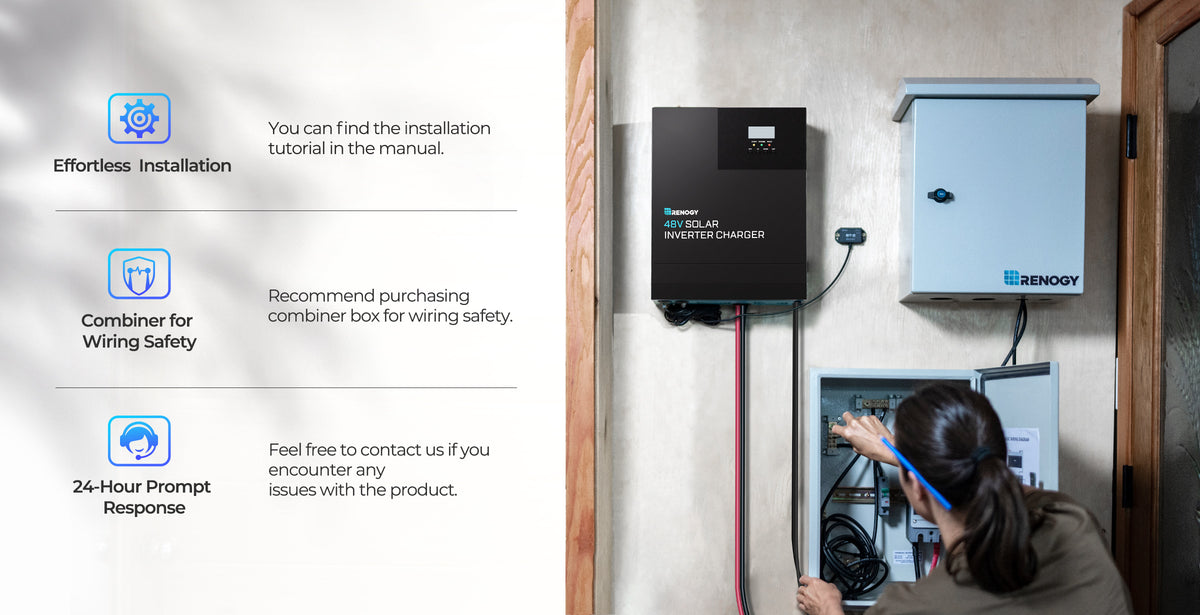

When connecting the inverter to the battery and solar panels, refer to the manual for proper instructions. The minimum recommended wire gauges are:

Battery wiring: 2AWG

PV wiring: 4AWG

AC input/output wiring: 8AWG

Incorrect wiring can cause excessive heat, insulation melting, and even fire, so ensure all connections are tight and properly made.

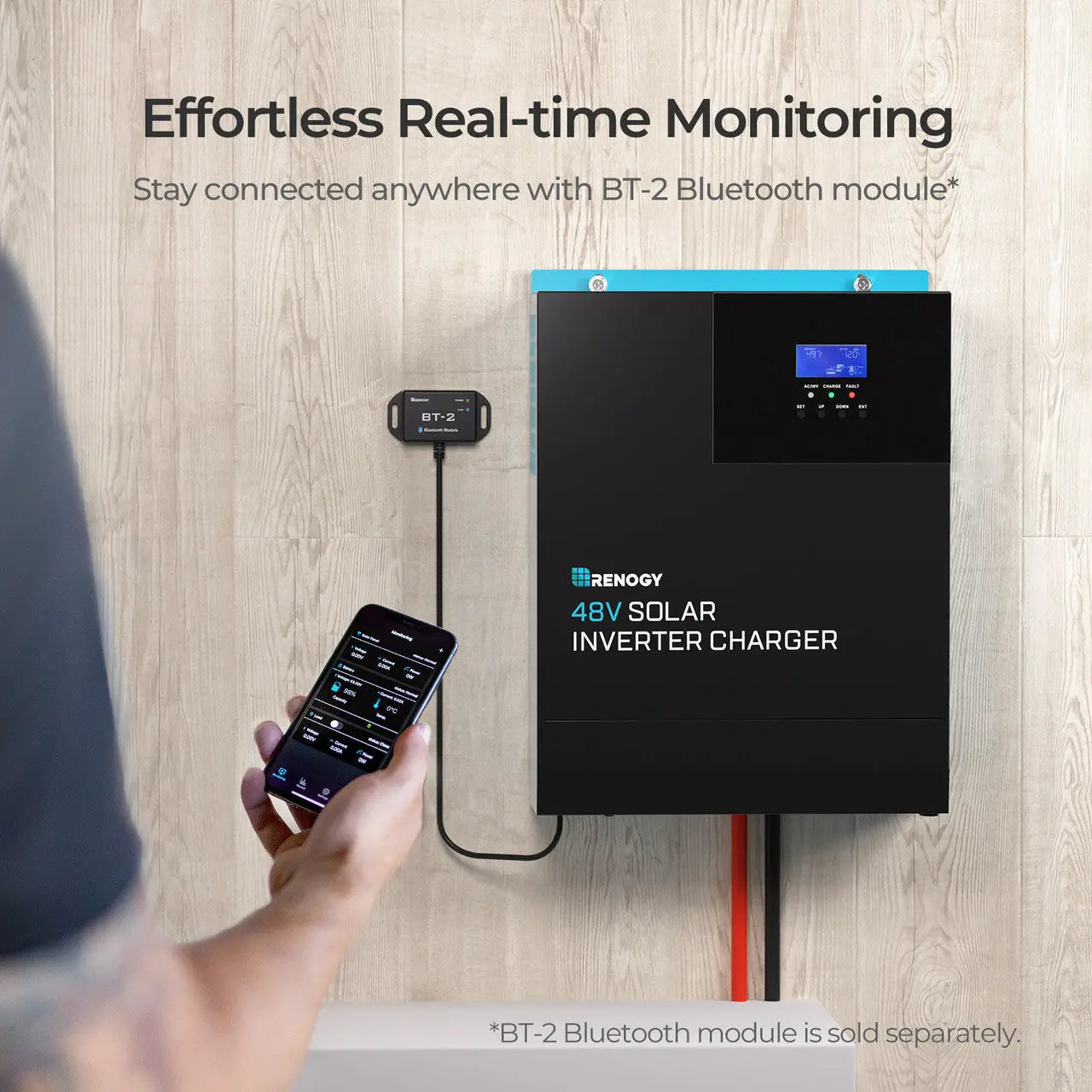

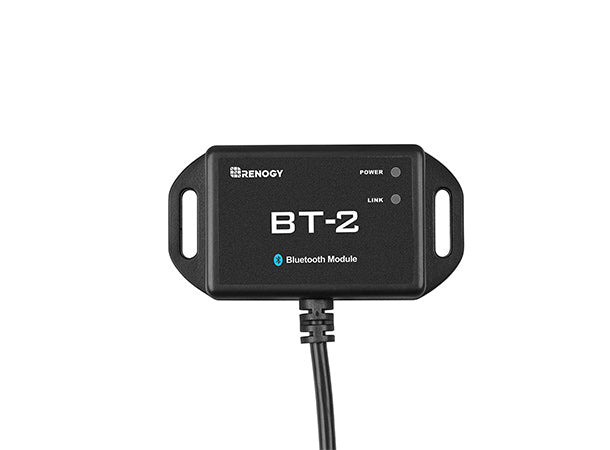

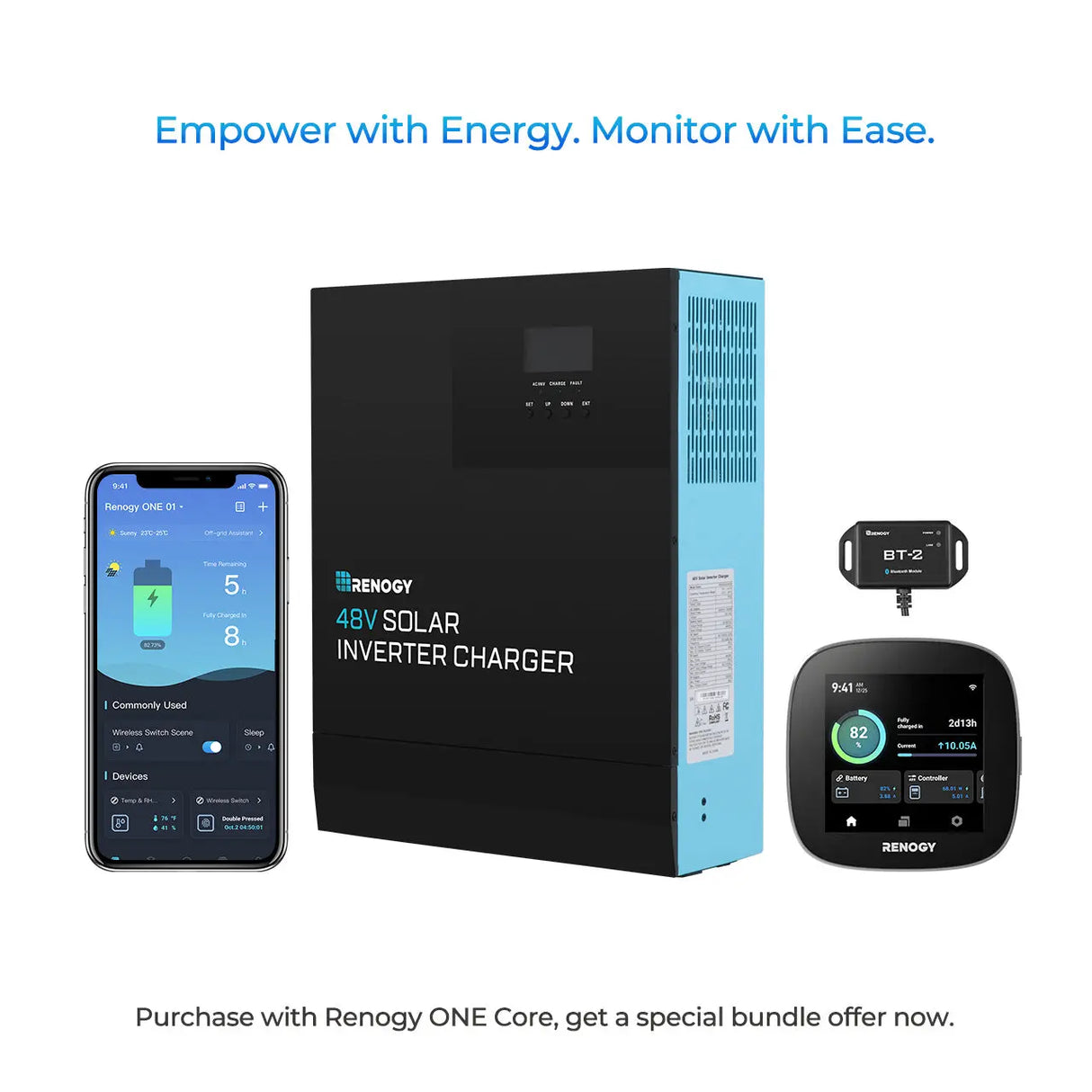

Yes, the Bluetooth 2 Module (Model: RCM-BT2) is compatible with this inverter. When paired with the DC Home APP, it allows you to monitor system information from your tablet or smartphone.

No, you must have batteries connected to the inverter for it to function properly. The inverter cannot operate without batteries in the system.

To ensure you're getting the full power output from your solar system, check the settings for Program 36 (PV Charging Current) and Program 7 (Maximum Charge Current). Set both to their maximum values to prevent any clipping of the PV current and ensure optimal performance.
