REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller

SKU: RCC30REGO-US
$430.99
+   Renogy Rays after purchase.
Log In About Rays

  • Supports 150V PV input; compatible with 12V-48V systems.
  • Error-proof connections with Amphenol connectors.
  • Built-in Bluetooth and RV-C for easy connection and control.
  • 13 safety protections, incl. low-temperature protection.
  • FCC, RoHS, CE, RCM, UL1741 certified. 5-year warranty.
5% OFF Coupon for New Subscriber
30-Day Return and Refund Service
Lifetime Customer Support
Show More Benefits Show Less
Quantity：
Payment Methods
Delivery Methods
Delivery time: 1-3 business days.Shipping Policy
Description
Includes
Specs
Downloads
FAQ
Reviews

RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller

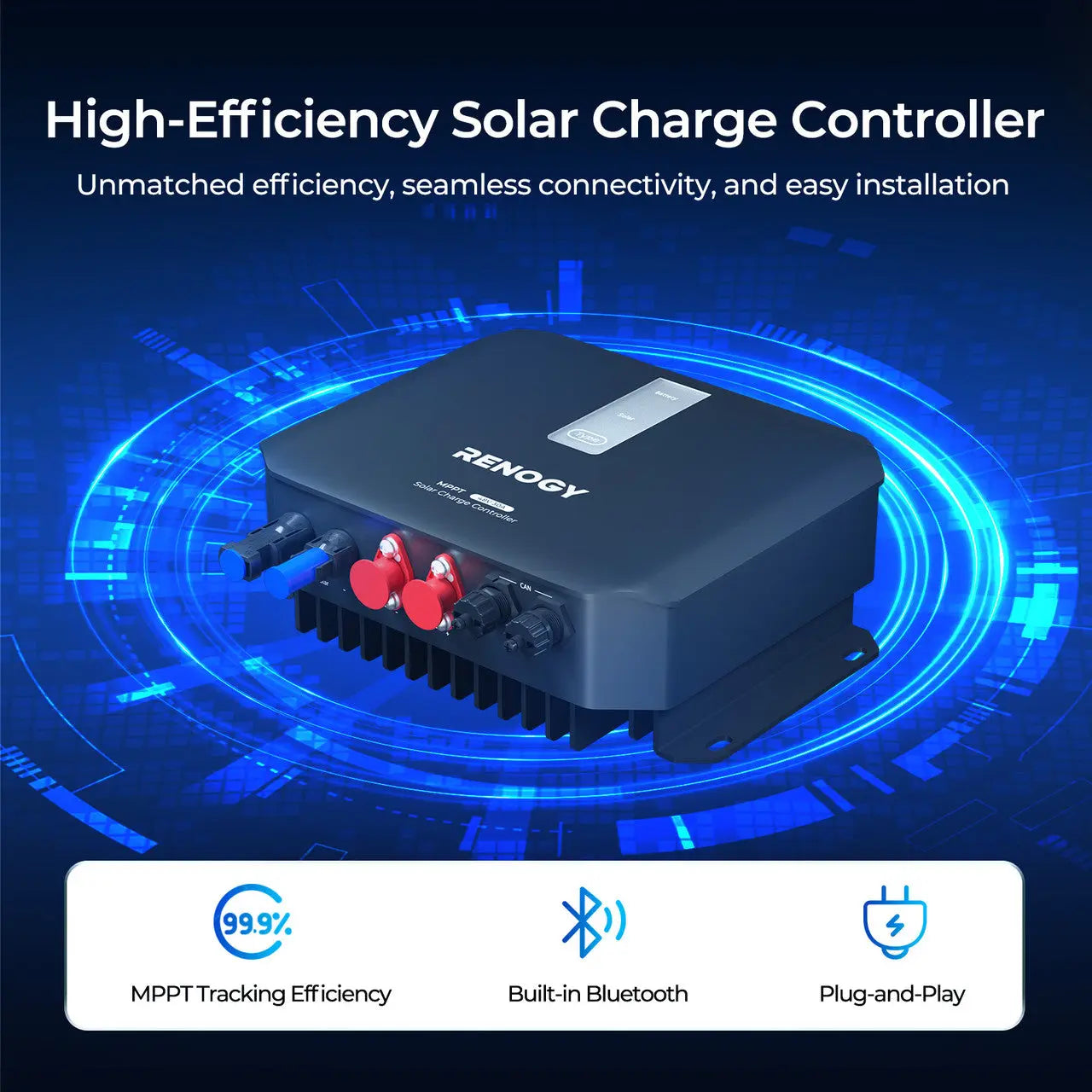

The REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller offers outstanding performance with up to 99.99% tracking efficiency, 97% charging efficiency, and built-in Bluetooth for effortless monitoring and control.

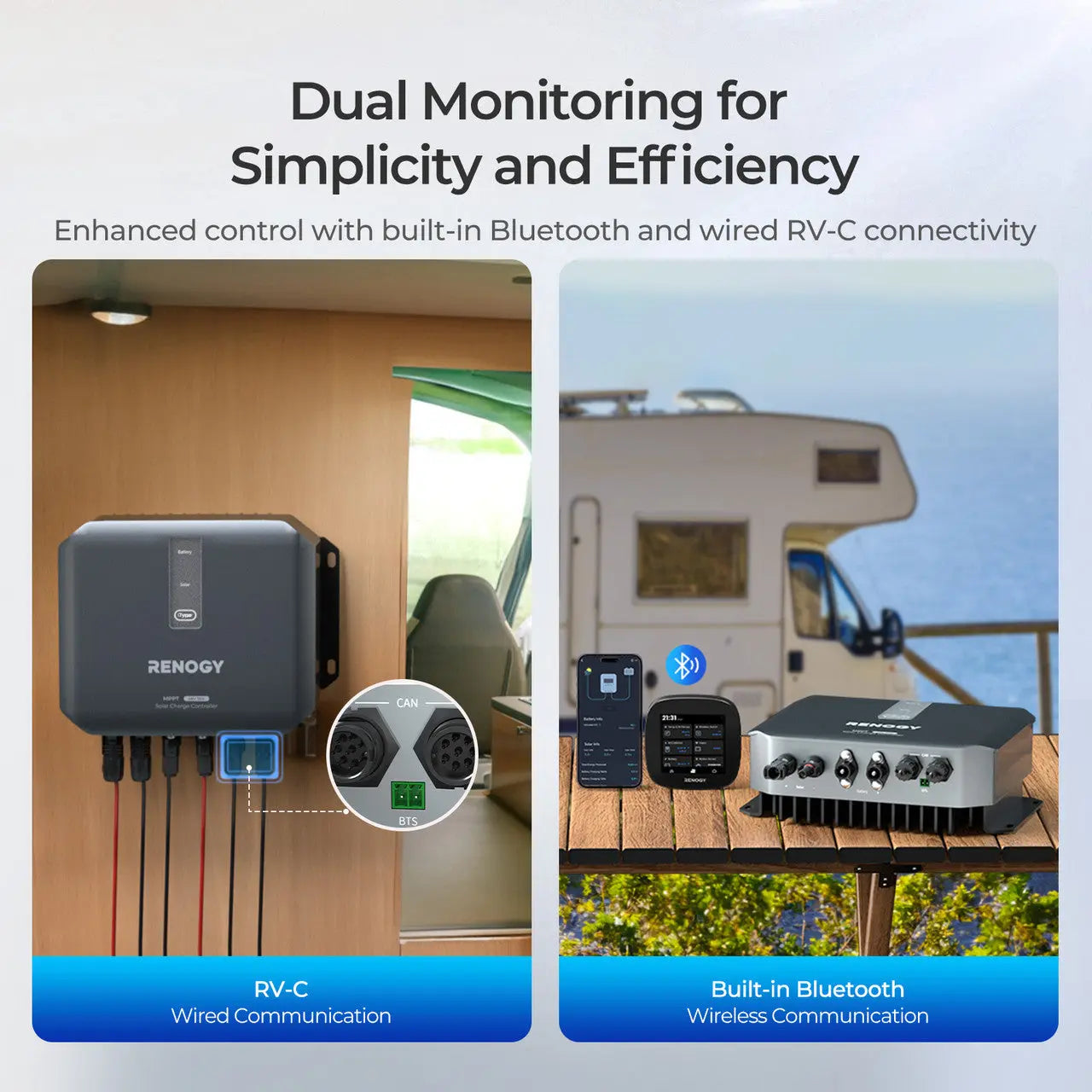

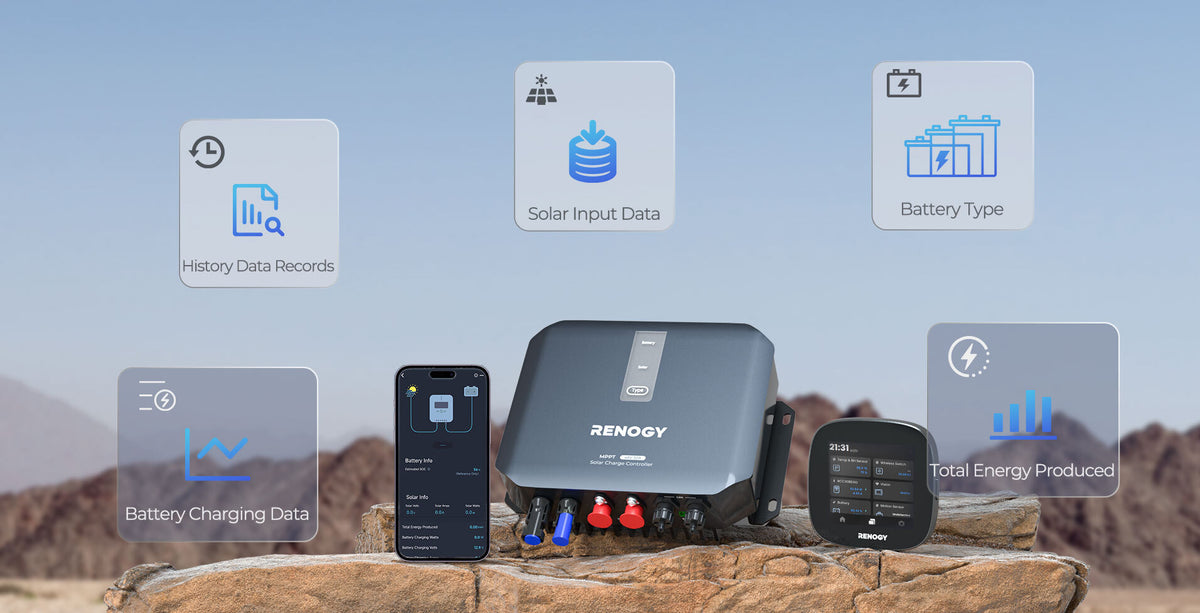

Dual Monitoring, Simple yet Efficient

The REGO 30A Controller takes monitoring to the next level with RV-C and Bluetooth connectivity, allowing you to track daily power generation with precision. Plus, its real-time clock captures a full year of data, giving you valuable insights into your solar performance anytime.

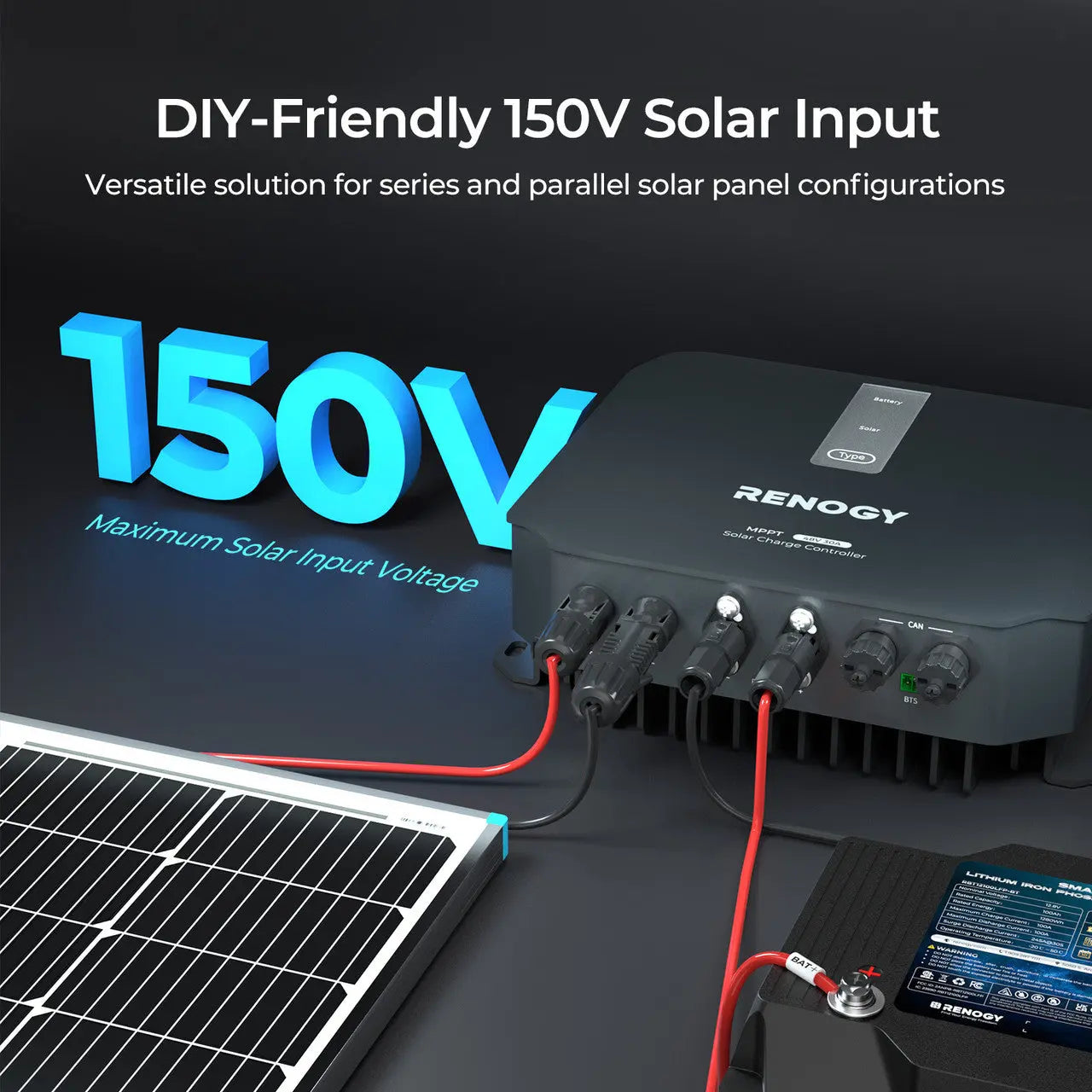

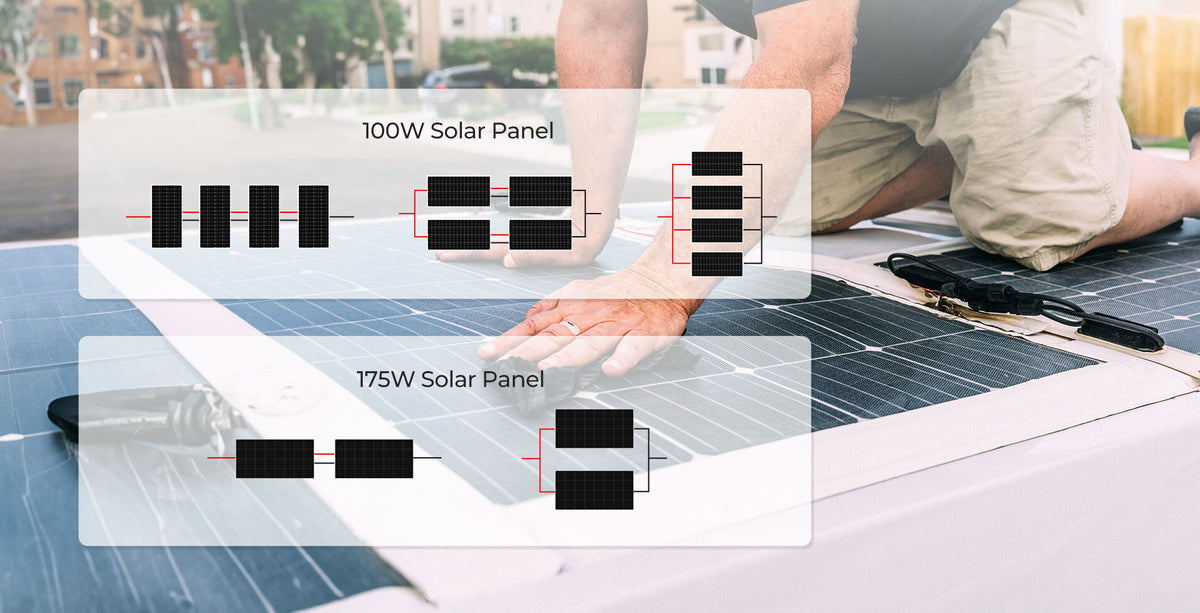

Unleashing the Potential for High-Power DIY Systems

By supporting up to 150V input voltage, the controller enables versatile series and parallel configurations of solar modules, broadening your DIY options.

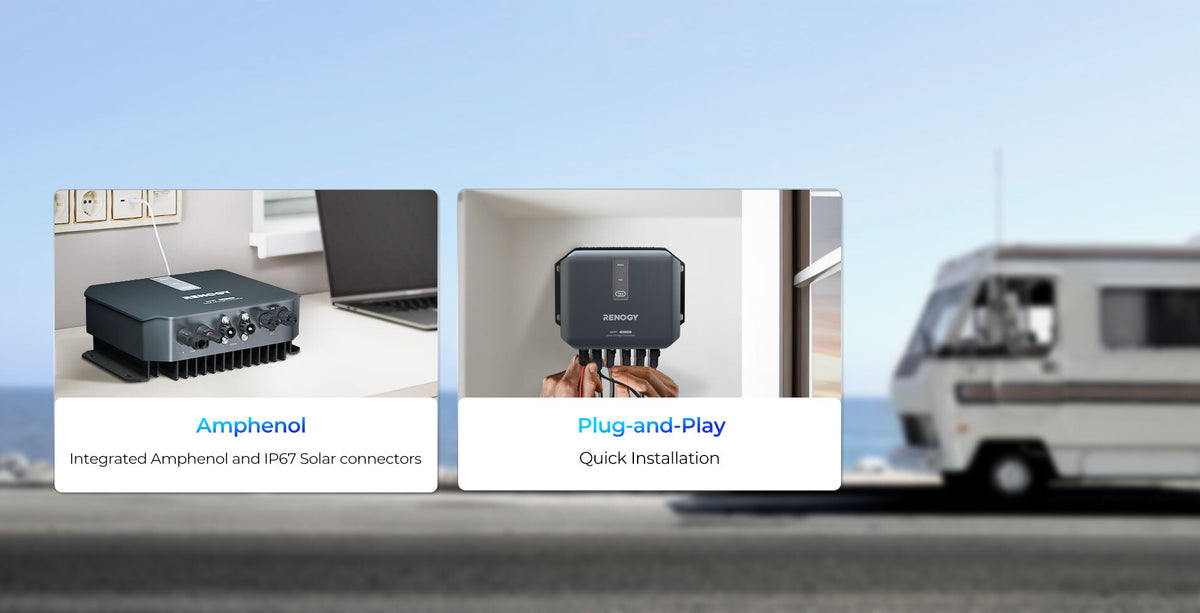

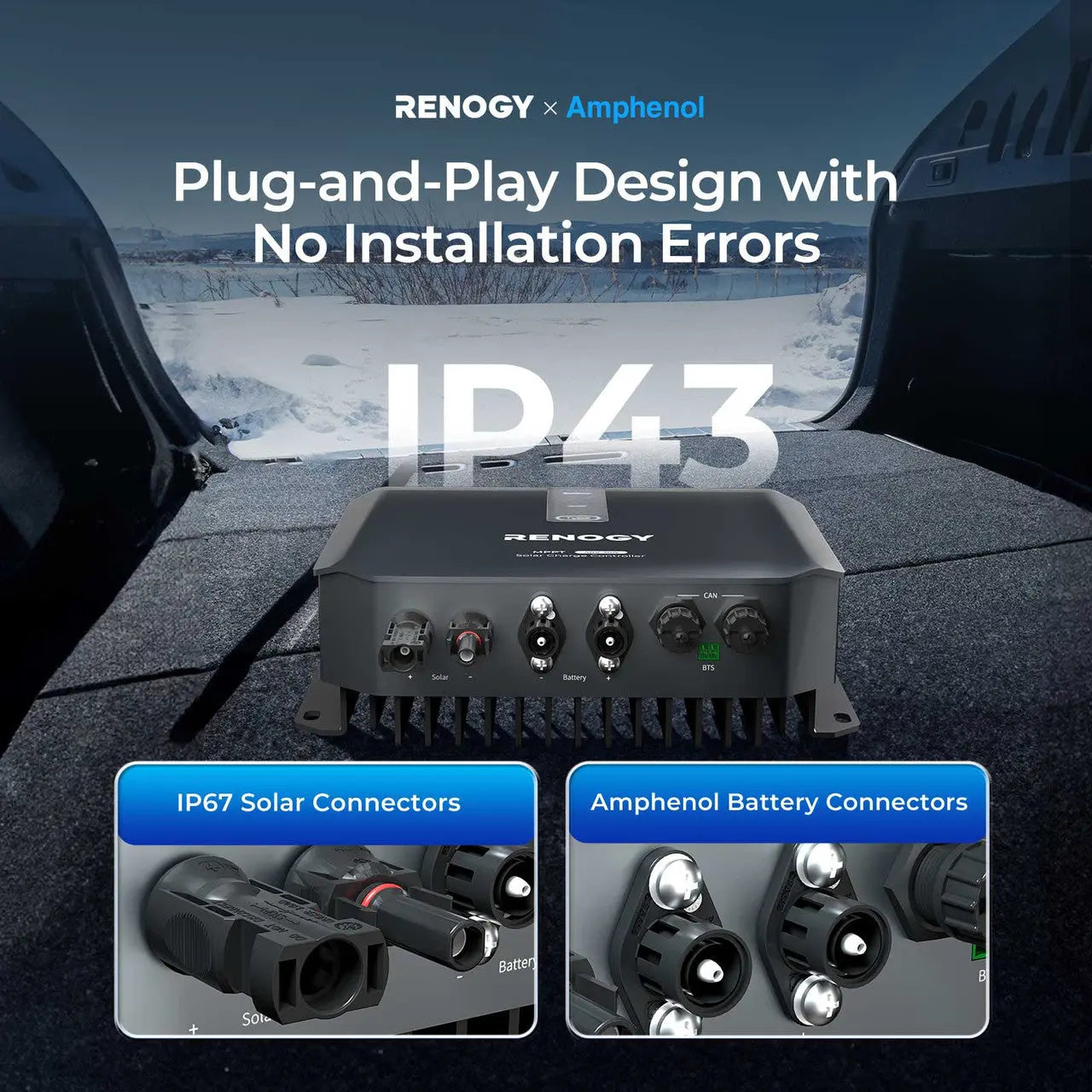

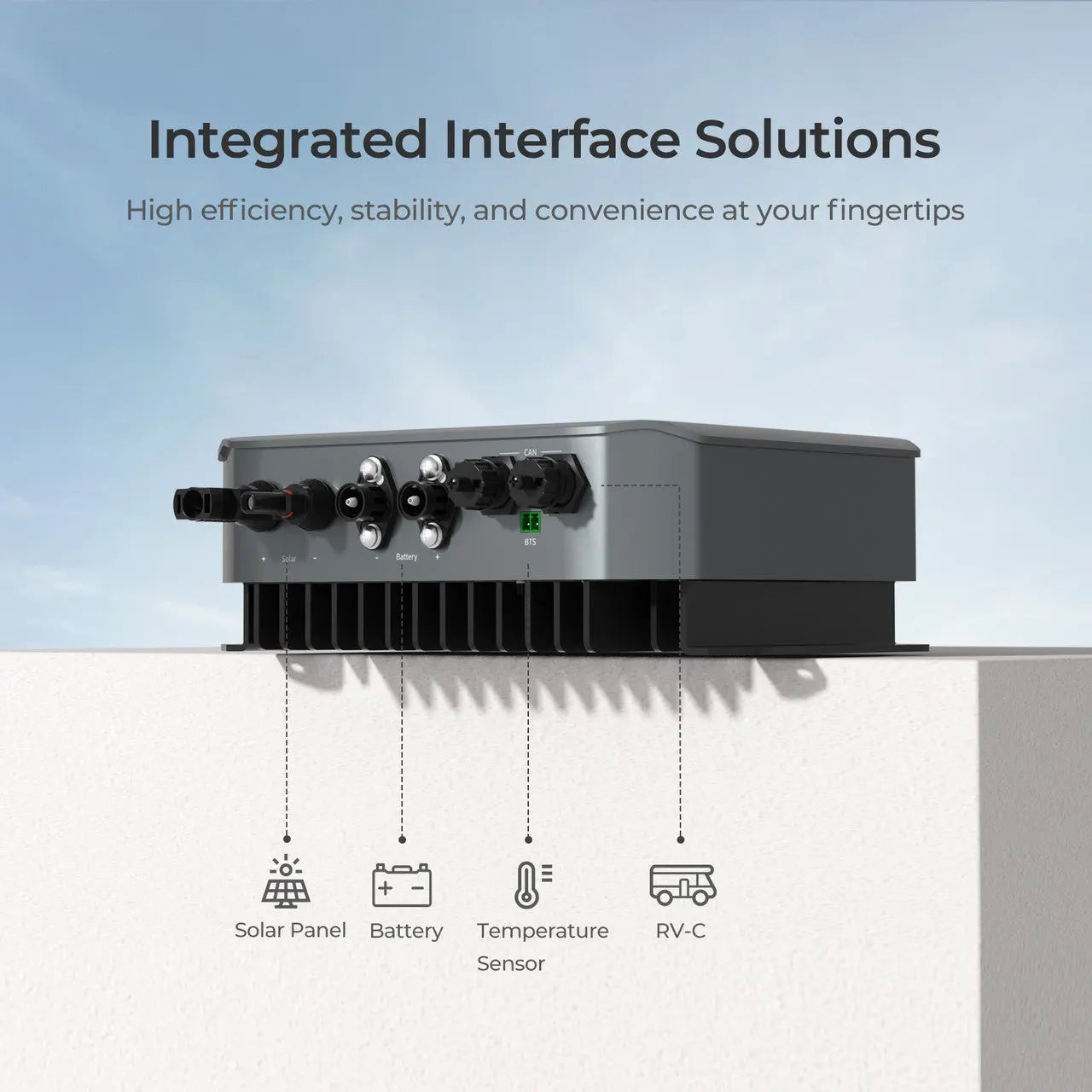

Seamless Installation

Enjoy hassle-free plug-and-play connections with Amphenol and IP67 solar connectors, designed for easy operation and fast installation. These secure connections eliminate the risk of loosening or slipping, ensuring reliable performance.

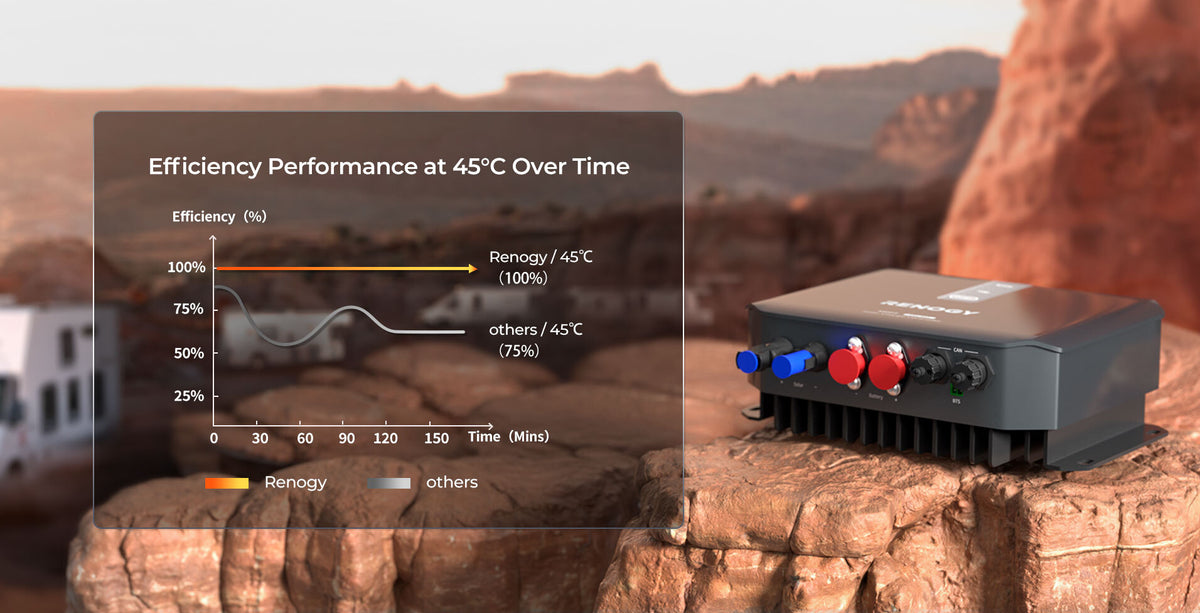

Unmatched Stability in Extreme Conditions

The REGO controller maintains full output current at 45°C (113℉) and 3000m altitude, ensuring consistent performance and exceptional heat dissipation for reliable operation.

Comprehensive Protection for Your Energy System

With 13 built-in protection features, this controller guarantees both system safety and efficiency. It also provides customizable settings, allowing for optimal performance across a range of conditions.

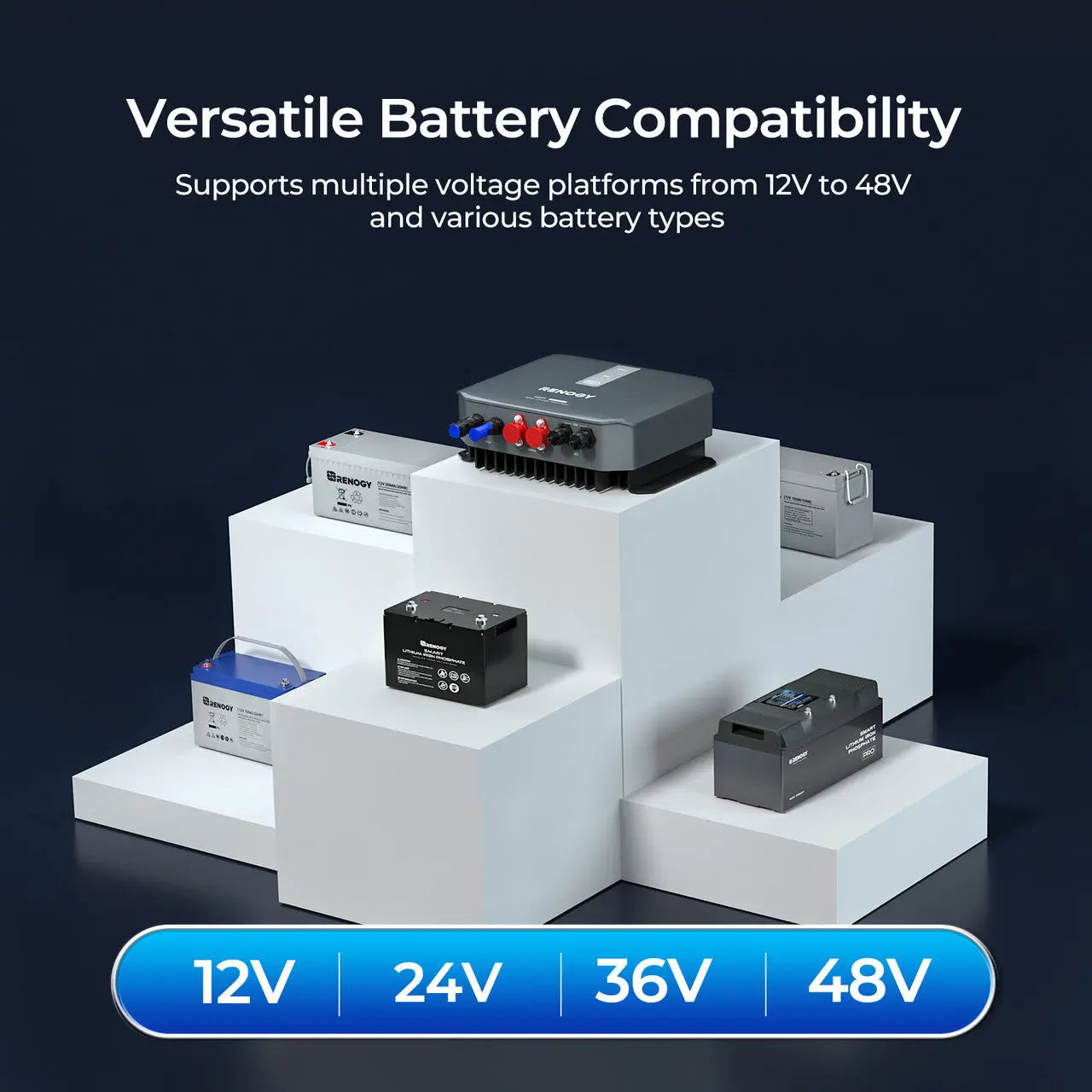

Versatile Voltage Compatibility

The REGO 30A Controller is compatible with 12V to 48V systems and automatically detects battery voltage, making it an ideal choice for RVs, homes, and various off-grid applications.

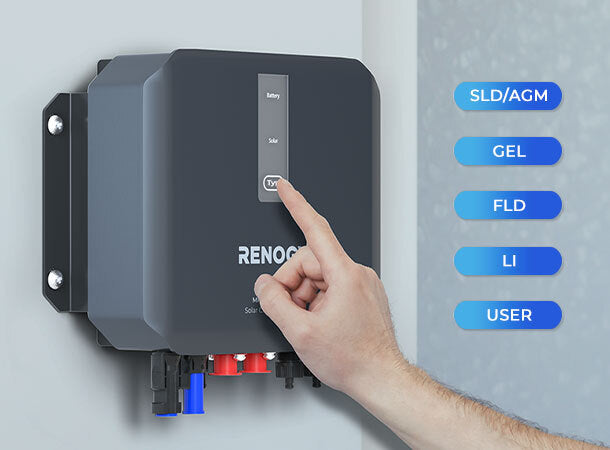

Effortless Battery Type Selection

The battery type can be easily selected between SLD/AGM, GEL, FLD, LI, or USER mode using the Battery Type Setting button. You can also adjust this setting conveniently through the DC HOME APP.

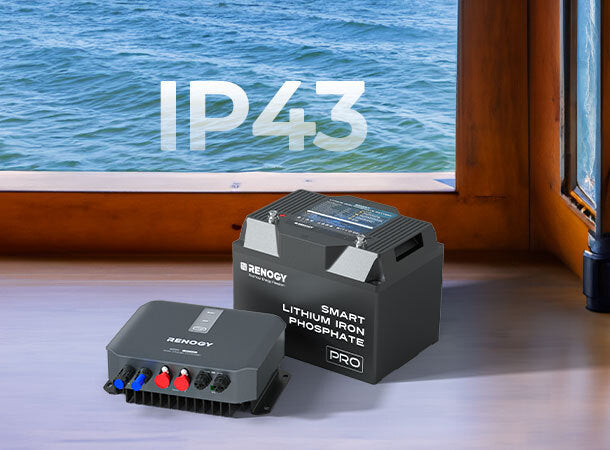

IP43 for Humid Environments

The integrated design boosts the protection level to IP43, making it ideal for use in a wide range of environments.

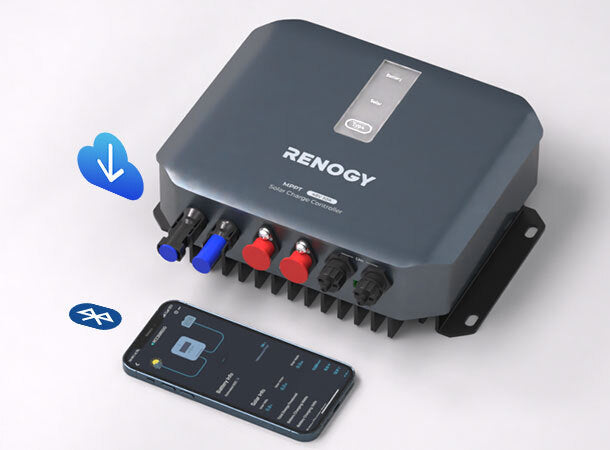

Over-the-Air Update

With built-in OTA functionality, you can easily perform remote software upgrades. It also includes a rollback mechanism for secure usage.

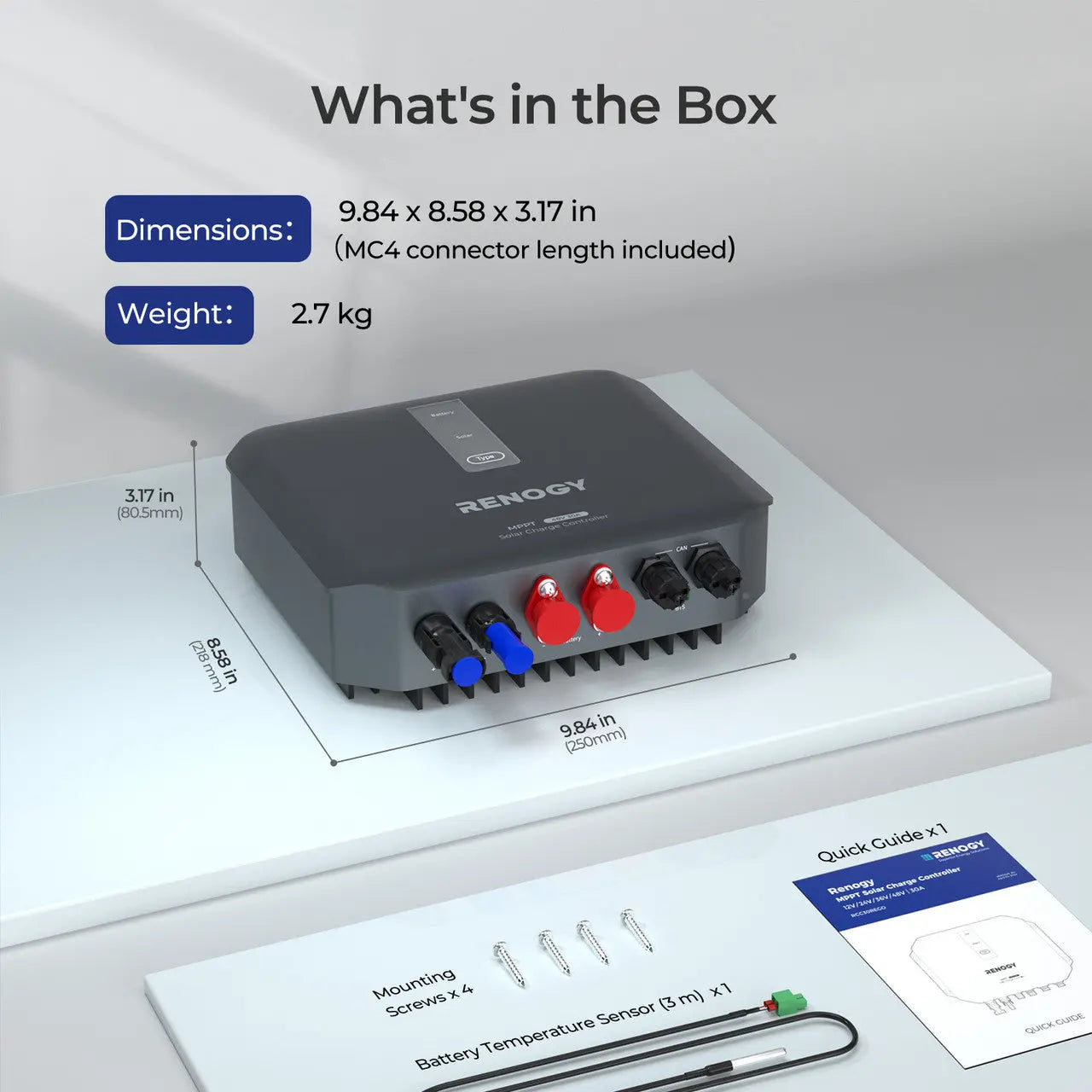

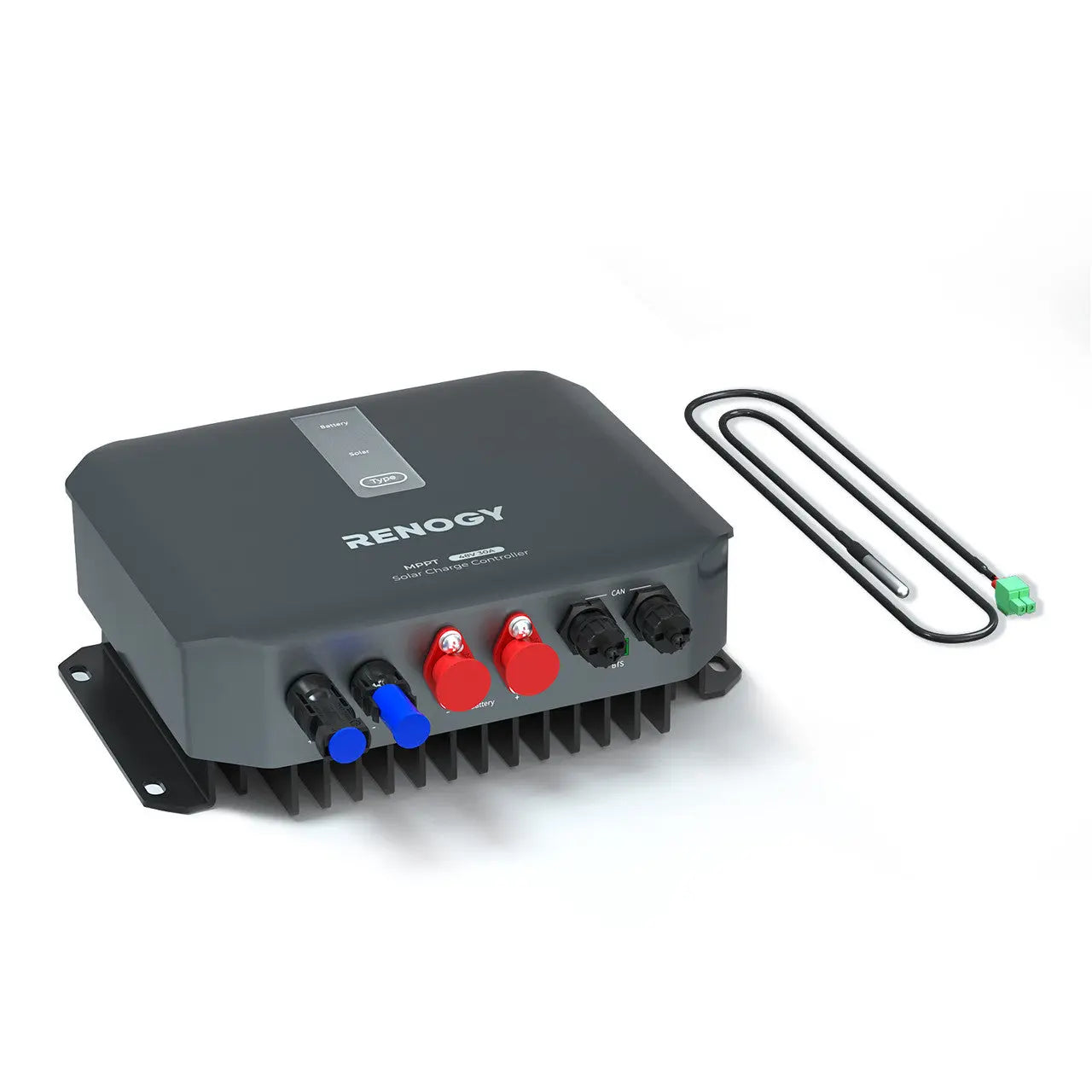

Package Includes

Solar Charge Controller

x 1

Quick Guide

x 1

Battery Temperature Sensor

x 1

Mounting Screws

x 4

RENOGY REGO 12V/24V/36V/48V 30A MPPT Solar Charge Controller

General Data

Grounding
Common Negative
Communication
RS485；RENOGY CAN
Operating Temperature
-31°F to 149°F / -35°C to 65°C
Storage Temperature
-31°F to 176°F / -35°C to 80°C
Humidity
0%~95% RH
Cooling
Heat Sink
Enclosure Rating
IP43
Dimensions (LxWxH)
9.84 x 7.40 x 3.17 in / 250 x 188 x 80 mm (Solar connector length not included); 9.84×8.58 X 3.17 in / 250 x 218 x 80 mm (Solar connector length included)
Weight
2.7 kg /5.95 lb
Regulatory and Safety Specifications
FCC, RoHS, CE, SAA, RCM, and UL 1741

Charger Data

Rated Battery Input Voltage
Non-Lithium :12VDC / 24 VDC / 36 VDC /48 VDC (Auto Recognition)
Battery Operating Voltage Range
8V to 64V
Rated Charge Current
30A
Maximum Solar Input Power
440 W (12V Battery);880W (24V Battery);1314 W (36V Battery);1700W (48V Battery)
Maximum Solar Input Voltage (Voc)
150VDC
Power Consumption
＜0.57W (12V Battery);＜0.67W (24V Battery);＜0.97W (36V Battery);＜1.34W (48V Battery)
MPPT Tracking Efficiency
>99%
Conversion Efficiency
＞97%
Temperature Compensation
3mV / ℃ / 2V (Non-Lithium); 0mV / ℃ / 2V, no compensation (Lithium)
Charger Algorithm
3-stage Lead Acid, Bulk, Boost, Float, Equalize*; 2-Stage Lithium, Bulk, Boost
Charger Preset
AGM/Gel/SLD/FLD/LI (four cell groups) and User Mode

WARRANTY INFORMATION

Accessories
5-year material warranty

Resources Download

Quick Guide

Download

User Manual

Download

Warranty

Download

Frequently Asked Questions

1. How should I wire my panels with an MPPT charge controller?

The panels can be wired either in series or parallel or a combination of series/parallel.

2. What is the max wattage input on the REGO 30A Charge Controller?

The Renogy REGO 30A Charge Controller can handle up to 440W for a 12V system, 880W for a 24V system, 1314W for a 36V system, and 1700W for a 48V system.

3. Does the REGO 30A Charge Controller have a built-in 30A fuse for the rated 30A load output?

No. Please always add a fuse between the charge controller and batteries. To determine the fuse size, you can match it to the amperage rating of the charge controller. If you have one of our 30A charge controllers, we recommend using a 30A ANL fuse.

4. What are the advantages of Renogy MPPT technology?

Renogy REGO 30A Charge Controllers uses Power Catcher MPPT algorithm to always ensure the charge controller converts most energy by locking to the most optimal maximum power point.

5. How many watts can Renogy REGO 30A Charge Controller handle?

The Renogy REGO 30A Charge Controller can work with standard off-grid 12/24V/36/48V solar panels with high voltage or multiple panels with voltage up to 150V. And the maximum combined input solar power is 440W for a 12V battery system, 880W for a 24V system, 1314W for a 36V system, or 1700W for a 48V system. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.

6. What is a Solar Charge Controller and what is MPPT?

The Charge Controller takes the power made by the solar panels and transform the ‘solar panel power’ into a form of power that the batteries can use. MPPT stands for Maximum Power Point Tracking, and it relates to the solar cell itself. Each solar cell has a point at which the current (I) and voltage (V) output from the cell result in the maximum power output of the cell. MPPT ensures that you get the most power possible from your solar panels at any point in time. It is particularly effective during low light level conditions.

7. What does 30A on MPPT charge controller mean?

30A represents the max amount of amps the controller can output going INTO THE BATTERIES.

8. What are the advantages of Renogy MPPT technology?

Renogy REGO Charge Controller uses the most advanced Maximum Power Point Tracking (MPPT) technology to track solar panels' maximum power voltage point as it varies depending on sunlight exposure and temperature. This technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers. Another benefit of MPPT technology is the wide solar input voltage range. This controller can work with standard off-grid 12/24V/36/48V solar panels and with high voltage or multiple panels with voltage up to 150V.
