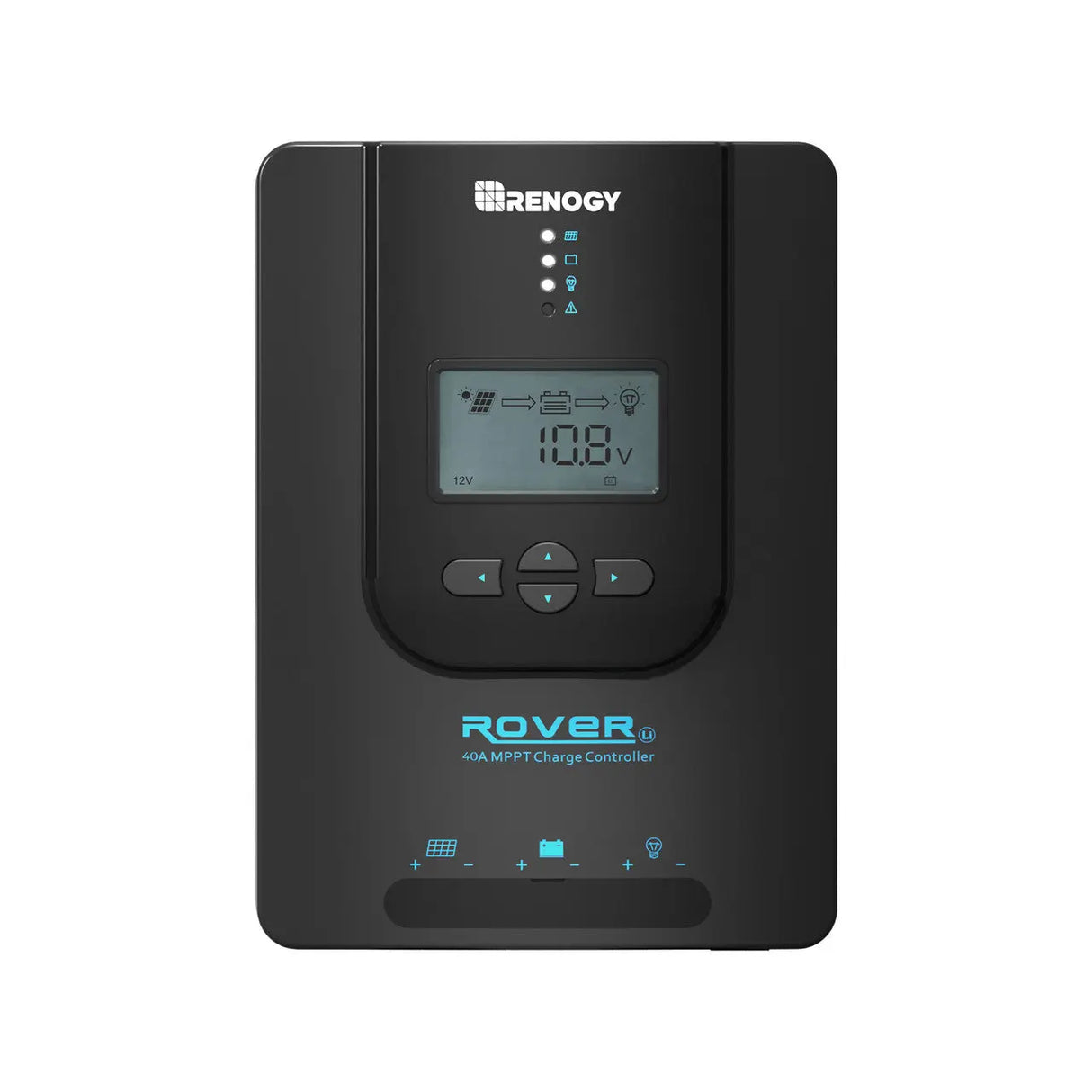

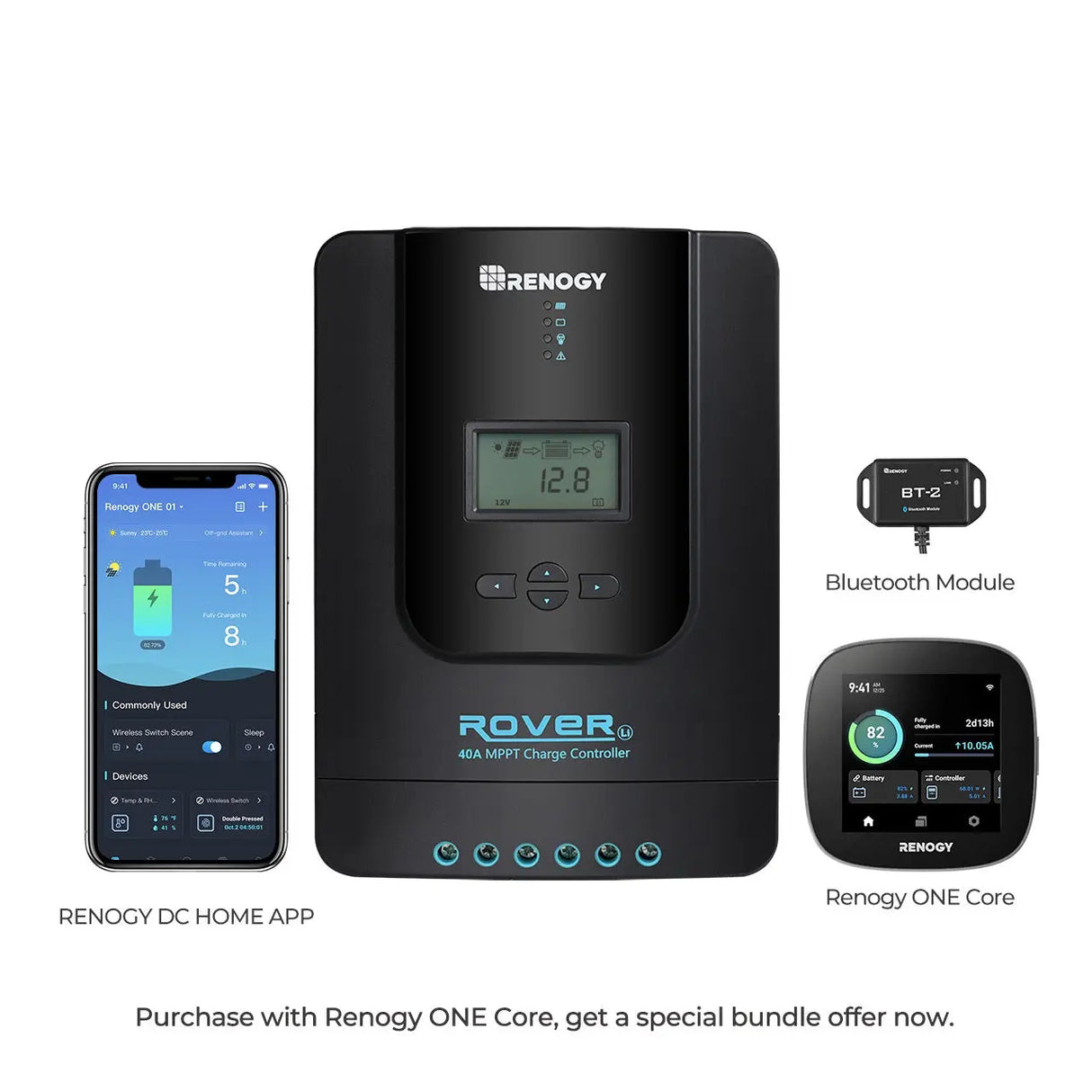

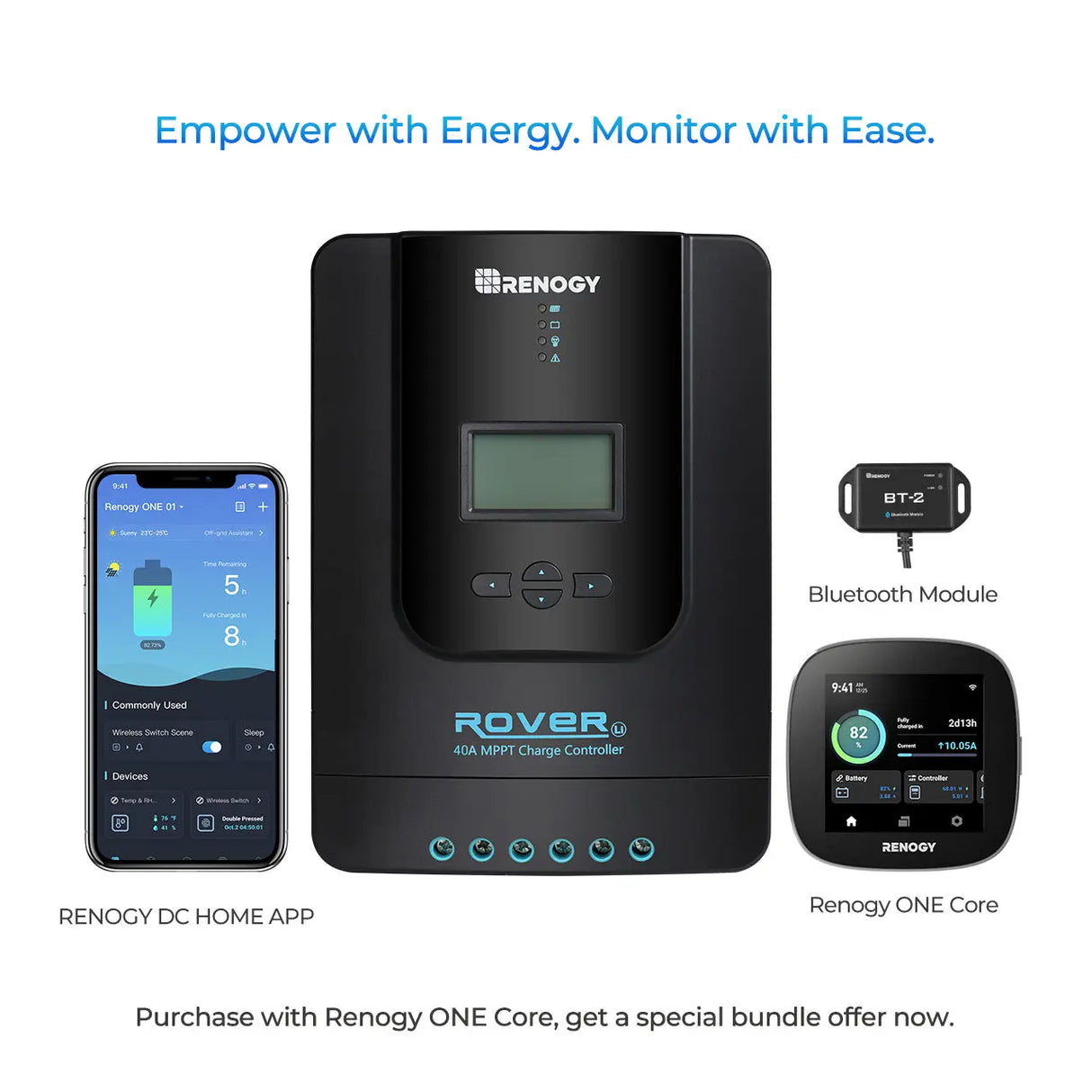

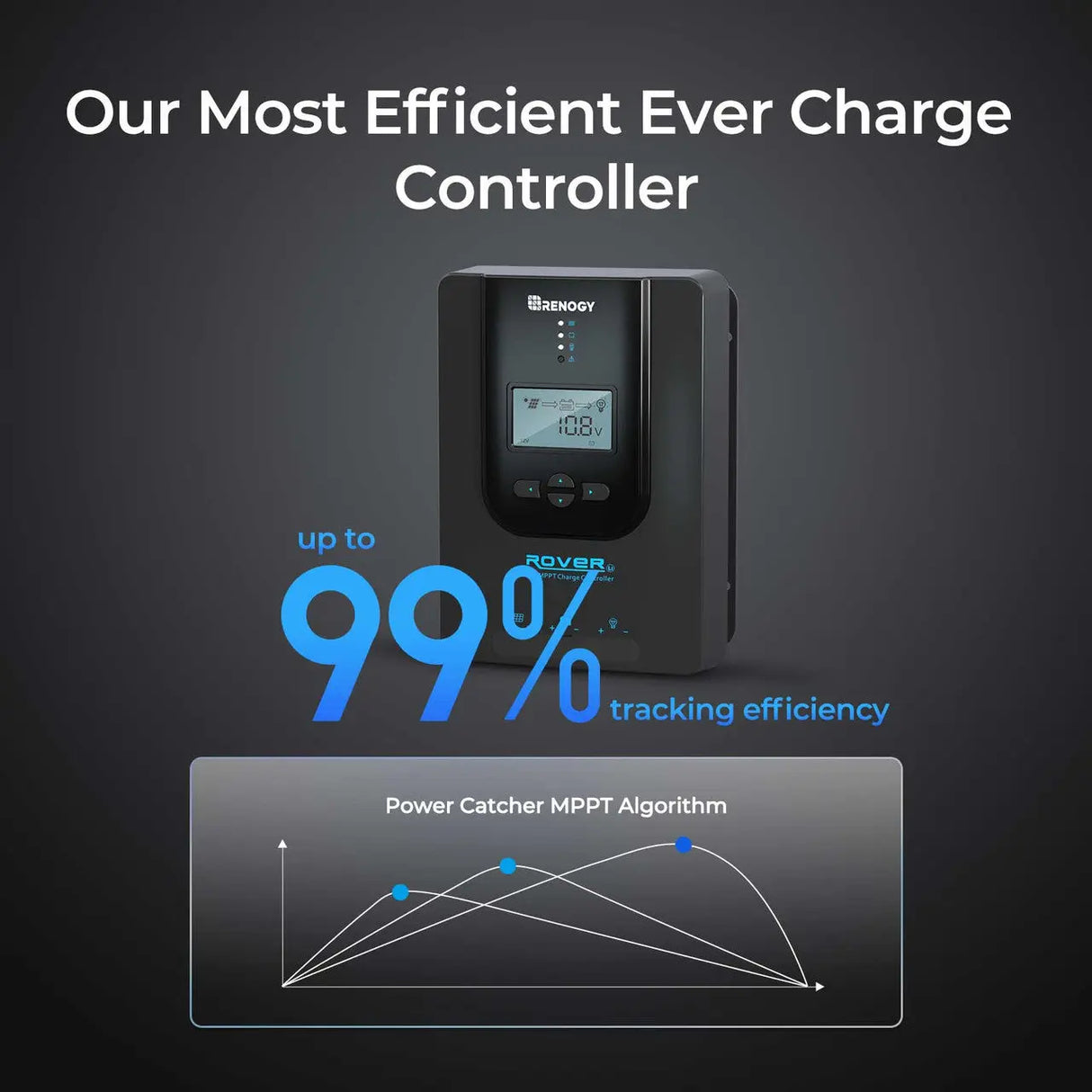

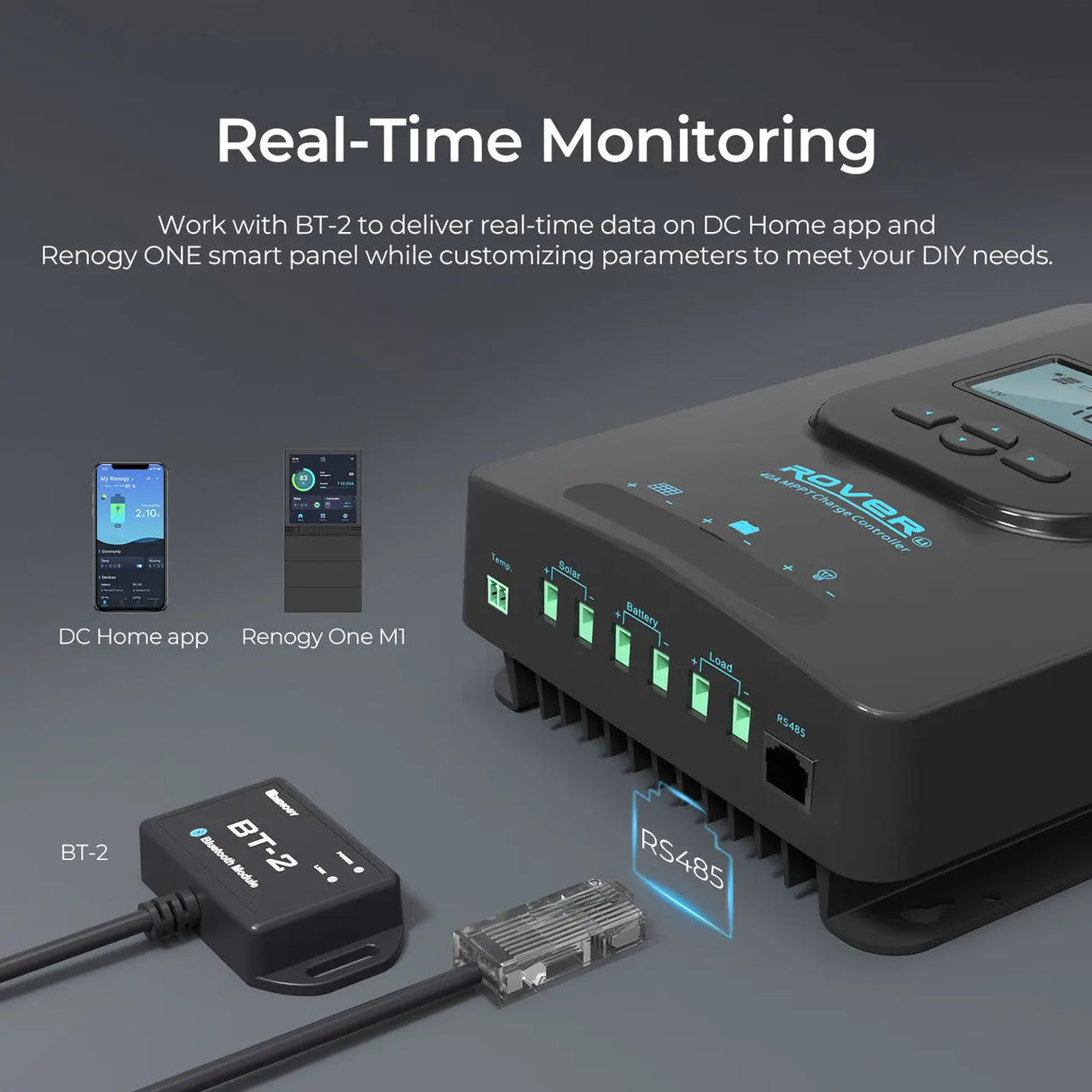

The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded (wet cell), and Sealed batteries(manual setting is required for 24V Lithium battery). When paired with the Renogy BT-1 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up!
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
Rover Li 40 Amp MPPT Charge Controller 1 x
|
Remote Temperature Sensor 1 x
|
Mounting Brackets 4 X
|
Options: BT-1 Bluetooth Module 1 x
|
RENOGY ROVER 40 AMP MPPT SOLAR CHARGE CONTROLLER (RNG-CTRL-RVR40) | |||
---|---|---|---|
Electrical Parameters | Environmental Data | ||
Nominal System Voltage | 12/24V Auto-Detect | Protection Level | IP32 |
Rated Charge Current | 40A | Operating Temperature Range | -35°C to 45°C; -31°F to 113°F |
Max. PV Input Voltage | 100 VDC | Storage Temperature Range | -35°C to 75°C; -31°F to 167°F |
Max. PV Input Power | 12V/520W, 24V/1040W | Operating / Storage Humidity | ≤ 90%, No Condensation |
Power Consumption | <100mA/12V; <58mA/24V | Temperature Compensation | -3mV/°C/2V |
Max Battery Voltage | 32V | Accessories | |
Ground Type | Negative | Temperature Sensor | 9.8ft cable length |
Electrical Protection | Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries. | Certifications | |
Mechanical Specifications | CE | YES | |
Dimensions | 238 x 173 x 72.5 mm; 9.37 x 6.81 x 2.85 in | FCC Class B Part 15 Compliant | YES |
Weight | 2.0kg / 4.41 lb | Warranty | |
Max. Terminals Size | 8 AWG 10mm2 | Material and workmanship warranty | 2 Year |
RENOGY BT-1 BLUETOOTH MODULE (RCM-BT1) | |||
Compatibility | Operation Specifications | ||
Compatible PWM Charge Controller | RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI | Communication Protocol | RS232 |
Compatible MPPT Charge Controller | RNG-CTRL-RVR20/RNG-CTRL-RVR30/RNG-CTRL-RVR40/ RNG-CTRL-RVR60S/RNG-CTRL-RVR100 | Port Type | RJ12 |
Compatible App | Renogy DC Home App available in both the App Store and Google Play | Input Voltage | 5V |
Protection Grade | IP54 | ||
Standby Power Consumption | 0.04W | ||
Mechanical Specifications | Operating Power Consumption | 0.05W | |
Communication Range | ≤82ft (25m) | Serial Baud Rate | Fixed Baud Rate 9600bps |
Cable Length | 16.4 ft (5.00m ) | Certifications | |
Dimensions | 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) | FCC Class B Part 15 Compliant | YES |
Weight | 4.58oz (130g ) | Warranty | |
Operation Temperature | -4°F to 185°F ('-20℃~85℃) | Material and workmanship warranty | 2 Year |
1. How should I wire my panels with an MPPT charge controller?
2. What is the max wattage input on the Rover 40?
The Renogy Rover 40A MPPT Solar Charge Controller can accept input of up to 520W for a 12V system, and up to 1040W for a 24V system.
3. Does the Rover 40A MPPT charge controller have a built-in 40A fuse for the rated 40A load output?
4. What are the advantages of Renogy MPPT technology?
6. What is a Solar Charge Controller and what is MPPT?
7. What does 40A on MPPT charge controller mean?
8. What are the advantages of Renogy MPPT technology?
More questions about your off-grid power system? Learn more from Renogy Learning Center!
Please click the links below to download Manual: | |||
Renogy BT-1 Bluetooth Module | |||
Renogy DC-Home App for Renogy products with communication ports |
