I'd Like to Have...
2.5 kWh The PilotCar Kit
5 kWh The Navigator Kit
Renogy RV Solution The PilotCar Kit 2.5 kWh
Unleash full potential of your next RV trip with one-stop solar suites
Let's Explore the RV World
Designed for RV enthusiasts, the solar panel mounts on the RV roof (or a suitable surface) to efficiently power devices and provide reliable energy for your adventures. This innovative solution offers a sustainable energy source that reduces reliance on traditional power supply systems, allowing RV travelers to explore without worrying about power interruptions.
At-a-Glance RV System Overview
Refer to the wiring diagram for step-by-step instructions. The wiring diagram provides detailed steps for safely integrating the solar panel with your RV's electrical system.
Consumption Patterns of Applicants for Your Reference
When considering the 2.5 kWh solar power system for your RV, refer to information on the power consumption of various appliances to assess whether the 2.5 kWh system meets your needs.
Performance You can Count on
One-stop Solution for Off-Grid Convenience
This comprehensive solution ensures you have all the necessary tools and resources to enjoy the convenience of a self-sustained lifestyle.
Seamless Charging & Ultimate Safety
The solution includes the use of high-quality, certified components and equipment that meet safety standards, as well as the provision of detailed safety guidelines and instructions.
Get Max. 6% More Power than Rated Capacity
Renogy battery delivers max. 6% more capacity to brace for the unexpected storms, hurricane, wildfire, and other challenges whenever you need.
Expand Your System's Options with More Choices
If you plan to expand your system in the future, here are a few recommendations to consider:
Upgrade Plan One：Enjoy uninterrupted charging, even on rainy or cloudy days, with the DC-DC Battery Charger that directly harnesses energy from your vehicle's battery.
Upgrade Plan Two：Add Bluetooth Module. Stay connected and monitor your system's status in real-time with the Bluetooth Function
Remember to consult with a professional or the manufacturer's guidelines to ensure that your system's components are compatible and can be safely integrated.
Recommended Products to Upgrade

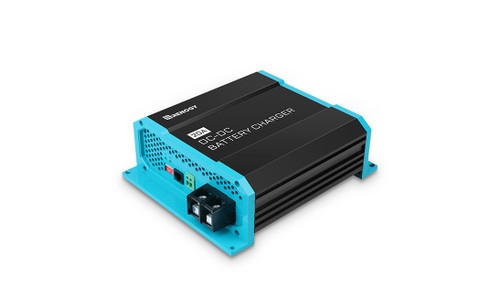

20A DC-DC Battery Charger
DC-DC Battery Charger for direct energy transfer from your vehicle's battery. Note: this module should also be equipped with a 30A ANL fuse and a 10AWG wire with ANL fuse.

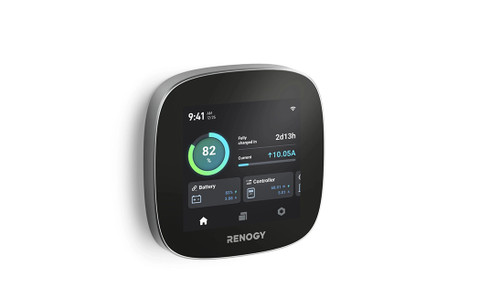

Renogy One Core
Experience real-time monitoring and control. Note: It is recommended to equip this module with BT2 as well.

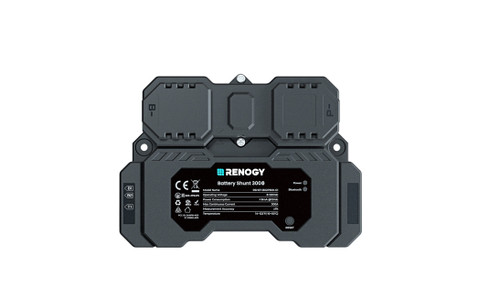

300A Smart Shunt
Track battery data performance over time.
Renogy RV Solution The Navigator Kit 5 kWh
Unleash full potential of your next RV trip with one-stop solar suites
Let's Explore the RV World
Designed for RV enthusiasts, the solar panel mounts on the RV roof (or a suitable surface) to efficiently power devices and provide reliable energy for your adventures. This innovative solution offers a sustainable energy source that reduces reliance on traditional power supply systems, allowing RV travelers to explore without worrying about power interruptions.
At-a-Glance RV System Overview
Refer to the wiring diagram for step-by-step instructions. The wiring diagram provides detailed steps for safely integrating the solar panel with your RV's electrical system.
Consumption Patterns of Applicants for Your Reference
When considering the 5 kWh solar power system for your RV, refer to information on the power consumption of various appliances to assess whether the 5 kWh system meets your needs.
Performance You can Count on
One-stop Solution for Off-Grid Convenience
This comprehensive solution ensures you have all the necessary tools and resources to enjoy the convenience of a self-sustained lifestyle.
Seamless Charging & Ultimate Safety
The solution includes the use of high-quality, certified components and equipment that meet safety standards, as well as the provision of detailed safety guidelines and instructions.
Get Max. 6% More Power than Rated Capacity
Renogy battery delivers max. 6% more capacity to brace for the unexpected storms, hurricane, wildfire, and other challenges whenever you need.
Expand Your System's Options with More Choices
Upgrade Plan One：Enjoy uninterrupted charging, even on rainy or cloudy days, with the DC-DC Battery Charger that directly harnesses energy from your vehicle's battery.
Upgrade Plan Two：Add Bluetooth Module. Stay connected and monitor your system's status in real-time with the Bluetooth Function.
Upgrade Plan Three：Expand Your Solar Output. Expand your system's energy capacity by adding another 200W rigid solar panel, enabling faster battery charging.
Recommended Products to Upgrade

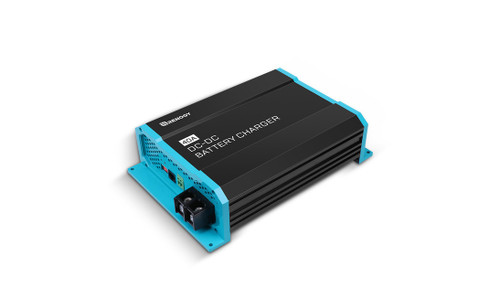

40A DC-DC Battery Charger
DC-DC Battery Charger for direct energy transfer from your vehicle's battery. Note: this module should also be equipped with a 30A ANL fuse and a 10AWG wire with ANL fuse.
Renogy One Core
Experience real-time monitoring and control. Note: It is recommended to equip this module with BT2 as well.
300A Smart Shunt
Track battery data performance over time.
Package Includes
RV 2.5KWh Solution Product Basic
- 200W Rigid Solar Panel200W Rigid Solar Panel x 2
- 40A MPPT Charge Controller x 1
- Core 200Ah Lithium Battery x 1
- 2KW P2 Inverter x 1
- Solar Panel Mounting Z Bracket -- Set of 4 x 1
- Solar Entry Gland x 1
- Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair x 1
- 12AWG 10FT Solar Panel to Charge Controller Adaptor Kit x 1
- 10AWG 8FT Battery to Charge Controller Tray Cables x 1
- 250A Class T Fuse x 1
- 2/0 AWG 1FT ANL Fuse Cable, 2/0 AWG 1Ft x 1
- 60A ANL Fuse Set w/ Fuse x 1
- 30A Solar Connector Fuse x 1
- 2ft ANL Fuse Cable x 1
- 500A Battery Monitor With Shunt x 1
RV 2.5KWh Solution Upgrade Plan
- RV 2.5KWh Solution Product Basic
- 20A DC-DC Battery Charger x 1
- 4AWG 8FT Double Ring Tray Cables x 4
- 30A ANL Fuse Set w/ Fuse x 2
- 10AWG ANL Fuse Cable x 2
RV 5KWh Solution Product Basic
- 200W Rigid Solar Panel200W Rigid Solar Panel x 3
- 60A MPPT Charge Controller x 1
- Core 200Ah Lithium Battery x 2
- 3000W P2 Inverter x 1
- Solar Panel Mounting Z Bracket -- Set of 4 x 3
- Solar Entry Gland x 1
- Solar Connectors Y Branch Parallel Adapter Cable MMF+FFM Pair x 1
- 12AWG 10FT Solar Panel to Charge Controller Adaptor Kit x 1
- Battery Interconnect Cables x 2
- 500A Combiner Box x 1
- 8AWG 8FT Tray Cables (controller-busbar) x 1
- 350A MRBF Fuse x 1
- 4/0 AWG 5FT Battery Inverter Cables (inverter-busbar) x 1
- 4/0 AWG 5FT Battery Cables (battery-busbar) x 1
- 75A MRBF Fuse x 1
- 15A Solar Connector Fuse x 3
- 500A Battery Monitor With Shunt x 1
RV 5KWh Solution Upgrade Plan
- RV 5KWh Solution Product Basic
- 40A DC-DC Battery Charger x 1
- 4AWG 8FT Double Ring Tray Cables (DC-DC - Busbar) x 4
- 60A MRBF Fuse x 1
- 60A ANL Fuse Set w/ Fuse x 1
- 8AWG ANL Fuse Cable x 1
Renogy 2.5 kWh The PilotCar Kit
Renogy 5 kWh The Navigator Kit
FAQ
1.How will these solar kits be shipped?
Due to different logistics standards for different products, we will ship them at the same time, but they may be split into different packages. We appreciate your understanding and patience. For more details, you can read more about our shipping policy here. If you have any questions about your order or need further assistance, please contact us.
2.What is the warranty of the system?
The warranty of the system varies depending on its individual components. Specifically, our solar panels come with a 10-year craftsmanship warranty and a 25-year warranty for 80% of their original output. The 200Ah core battery is backed by a 5-year warranty, while the inverter enjoys a 2-year warranty. We strive to provide the most comprehensive and reliable warranty policy to ensure that your system operates at its best at all times.
3. If I want to expand my system in the future, what advice can you give me?
If you plan to expand your system in the future, here are a few recommendations to consider:
DC-DC Battery Charger: Consider adding a DC-DC battery charger that can harness energy directly from your vehicle's battery. This will ensure that you have a backup power source, even during rainy or cloudy days when solar panels may not generate enough energy.
Renogy One Core: The Renogy One Core is a great addition to your system. It allows you to stay connected and monitor your system's status in real-time using Bluetooth functionality. This provides valuable insights into your system's performance and helps you make informed decisions.
Remember to consult with a professional or the manufacturer's guidelines to ensure that your system's components are compatible and can be safely integrated.
4. What if there is a rainy day and the solar panel cannot produce electricity?
You have two backup options:
1. You can utilize a DC-to-DC battery charger to charge from your car battery as a backup power source.
2. Alternatively, you can consider purchasing a transfer switch that enables the seamless transfer of power from the grid to ensure continuous energy supply.
5. Is it necessary to have the Bluetooth Module？
The Bluetooth module is not strictly necessary as an upgrade. However, it provides a function that allows you to monitor your system in real-time.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
