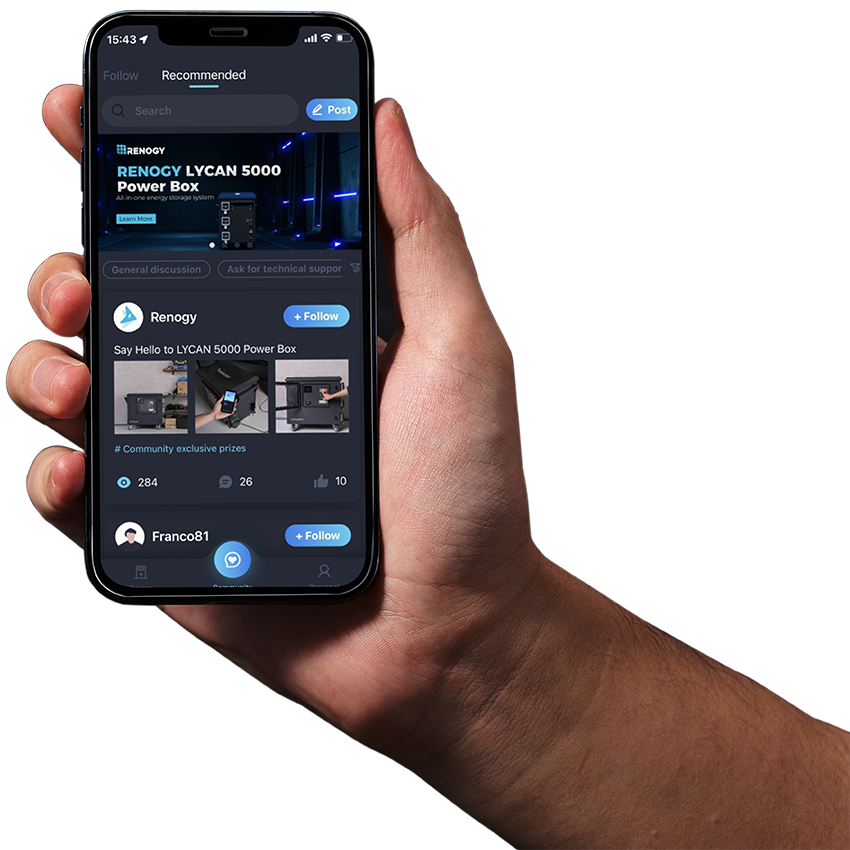

DC HOME APP
Monitor the LYCAN's charging and discharging status with accuracy and convenience in real time.
The Renogy LYCAN 5000 Power Box is the most powerful all-in-one energy storage system ever, specially designed for emergencies,
power outages, and off-grid homes.
power outages, and off-grid homes.

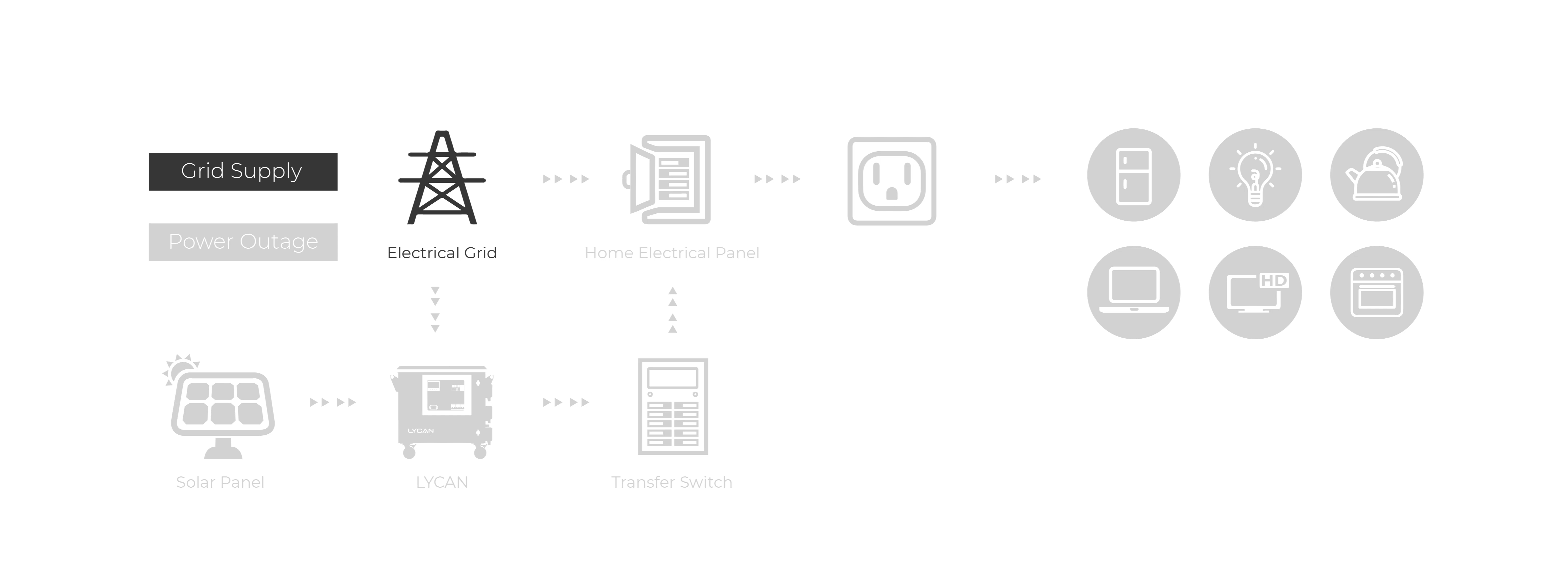

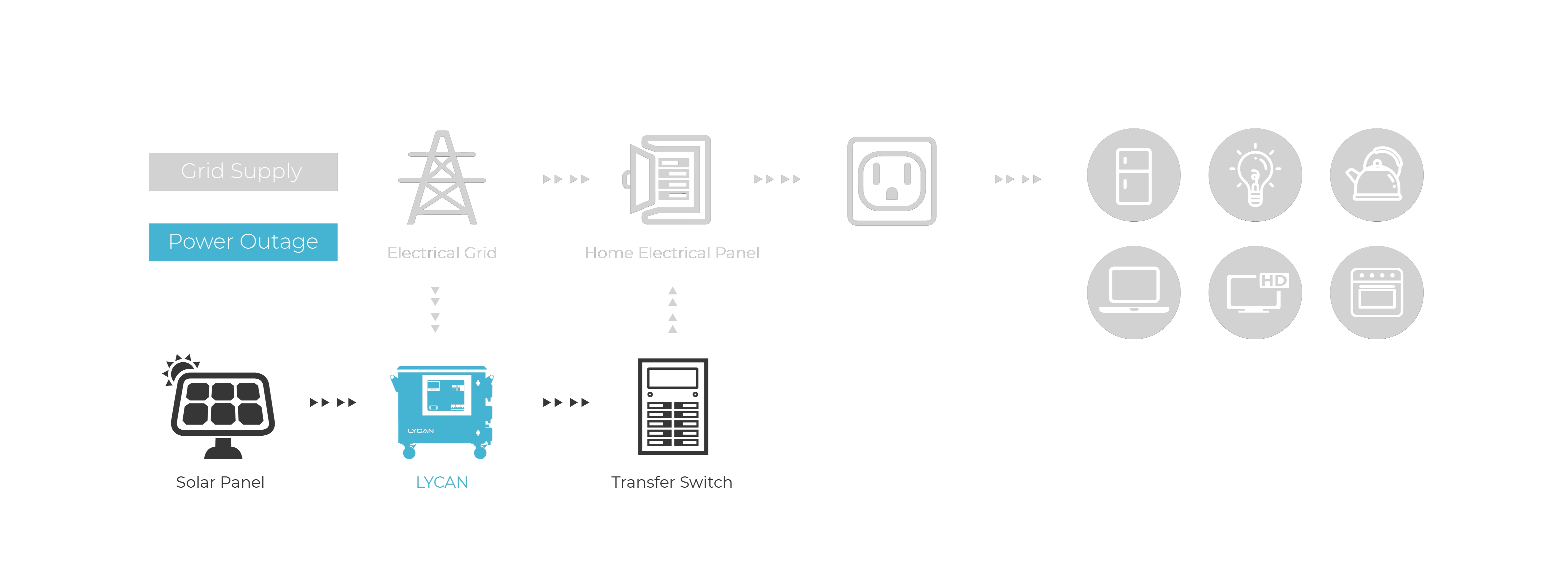

24/7 Uninterruptible Power Supply

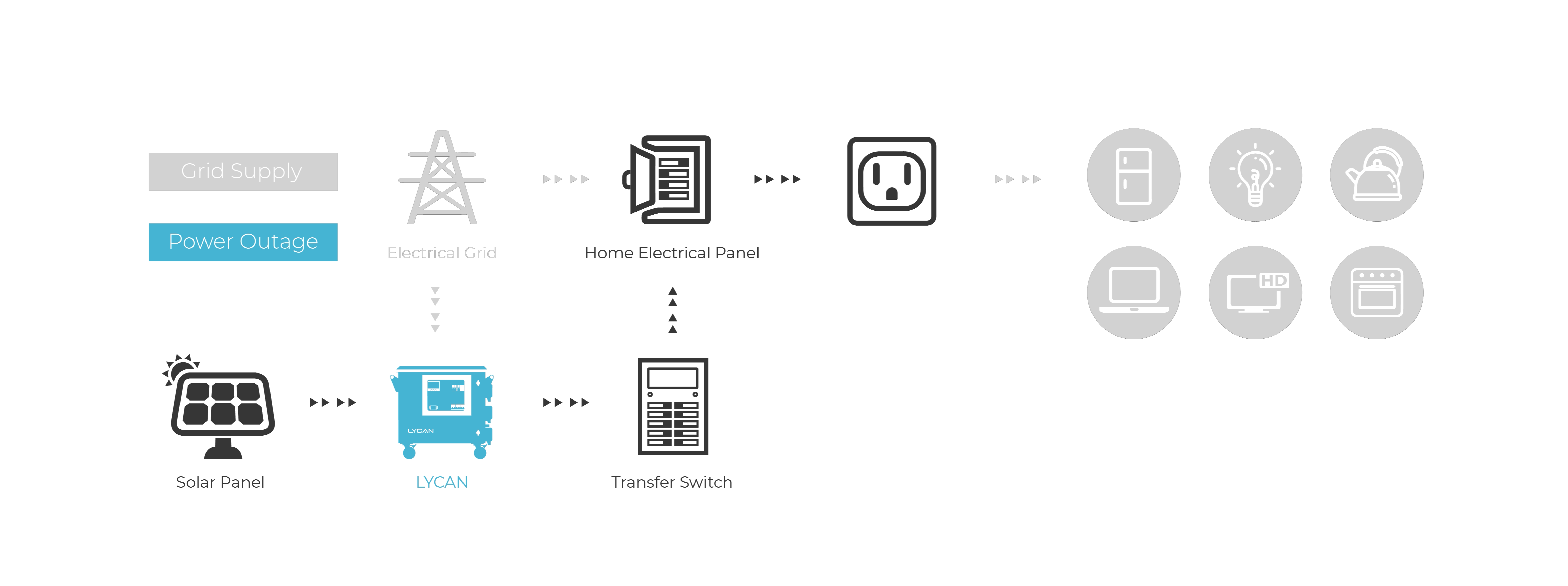

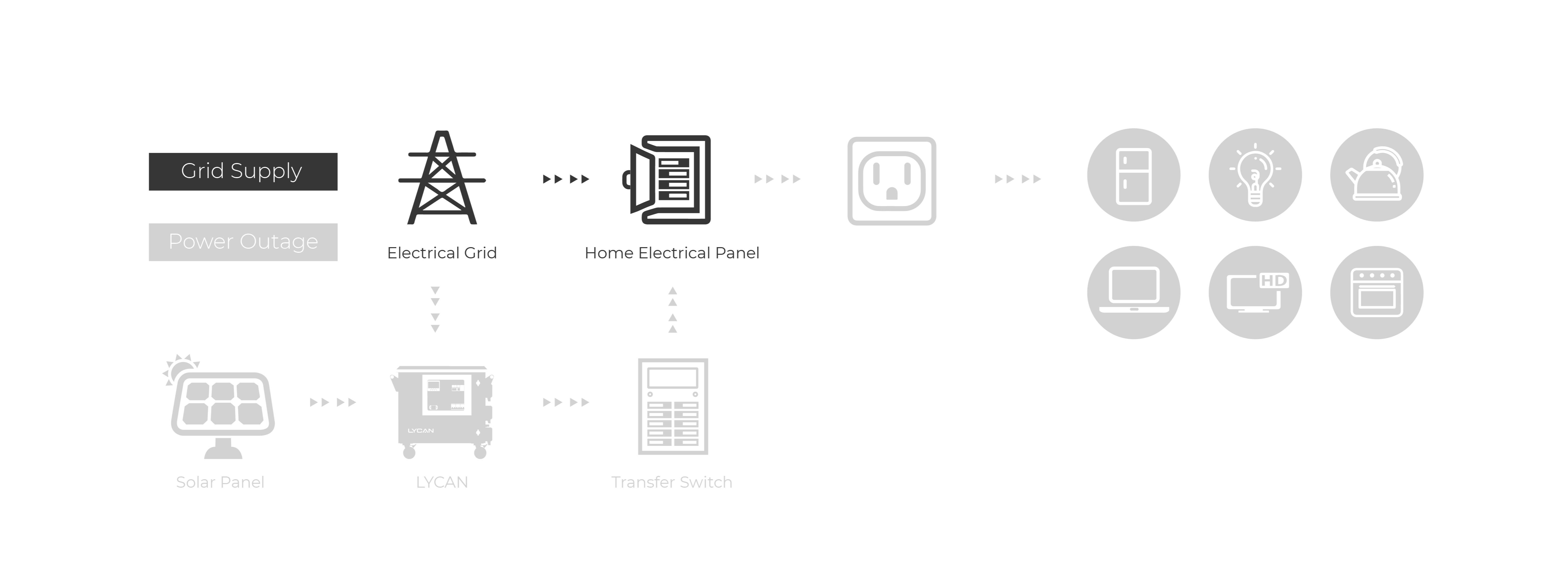

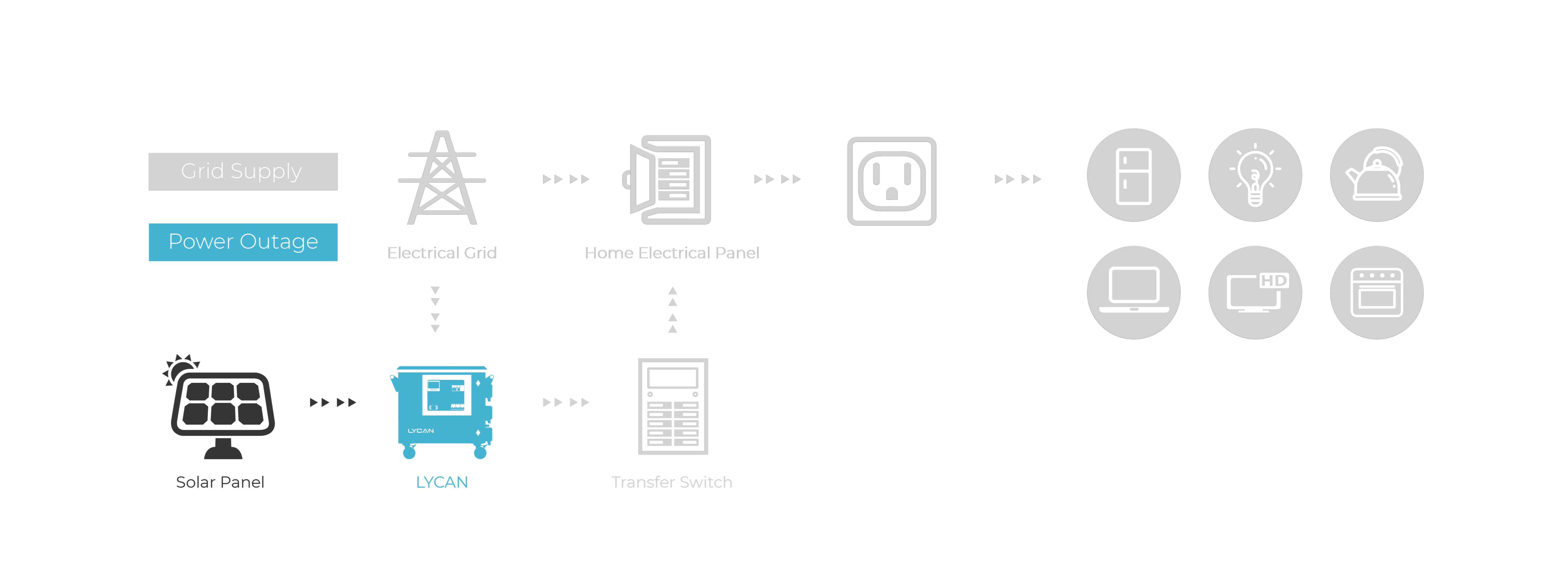

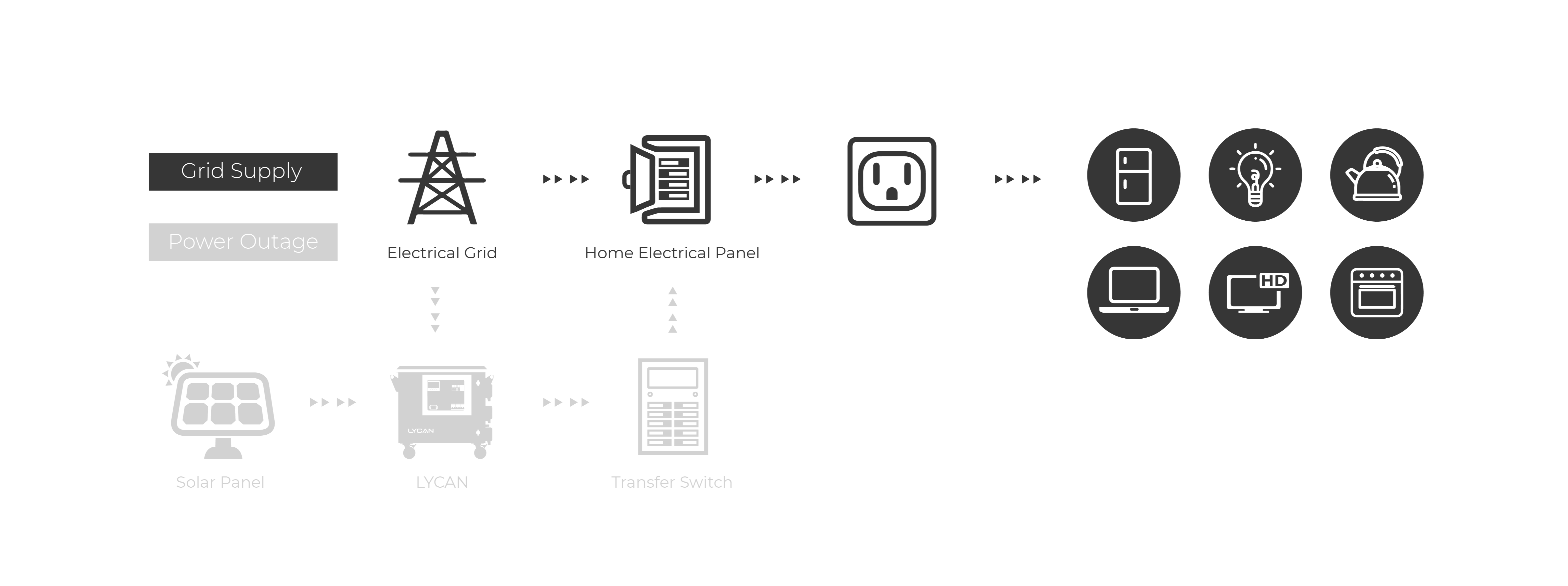

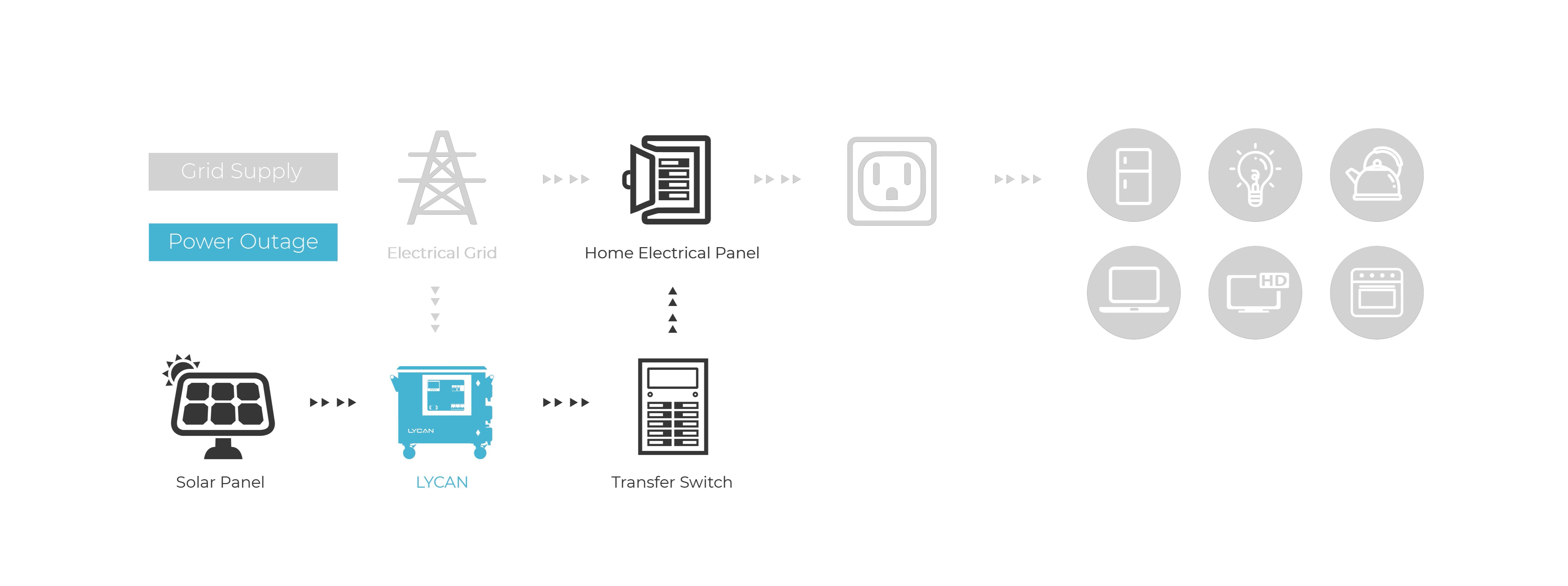

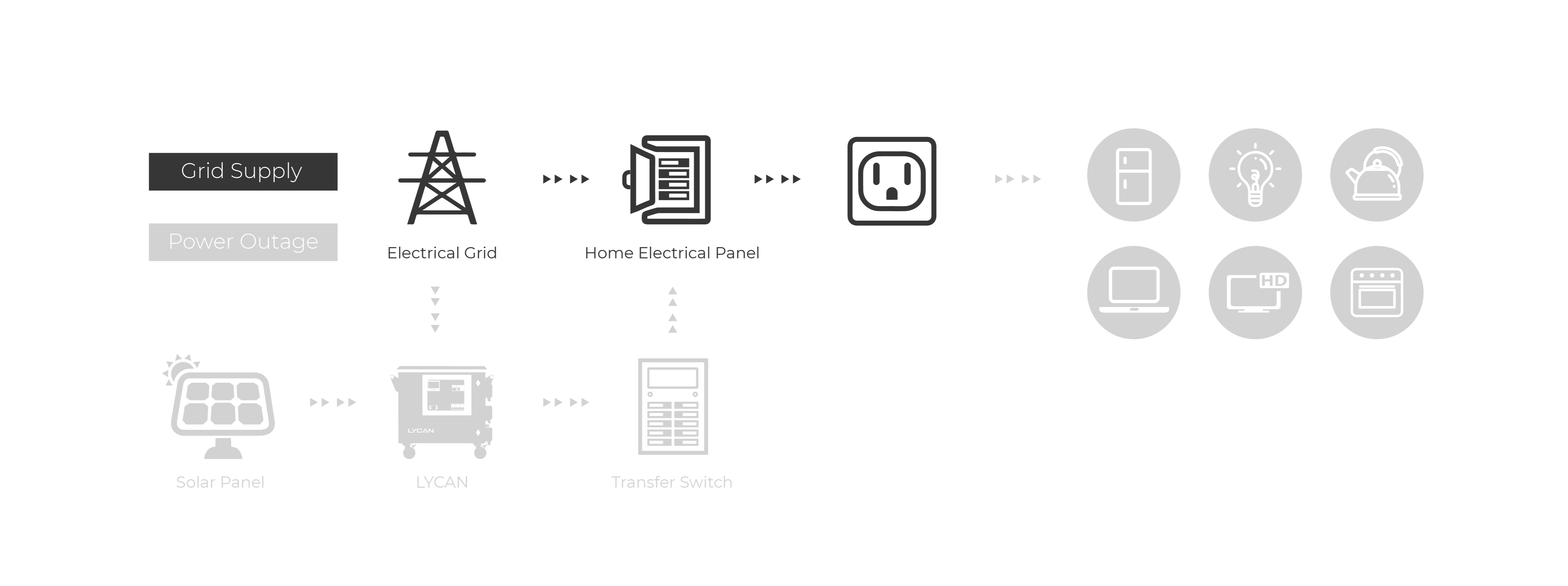

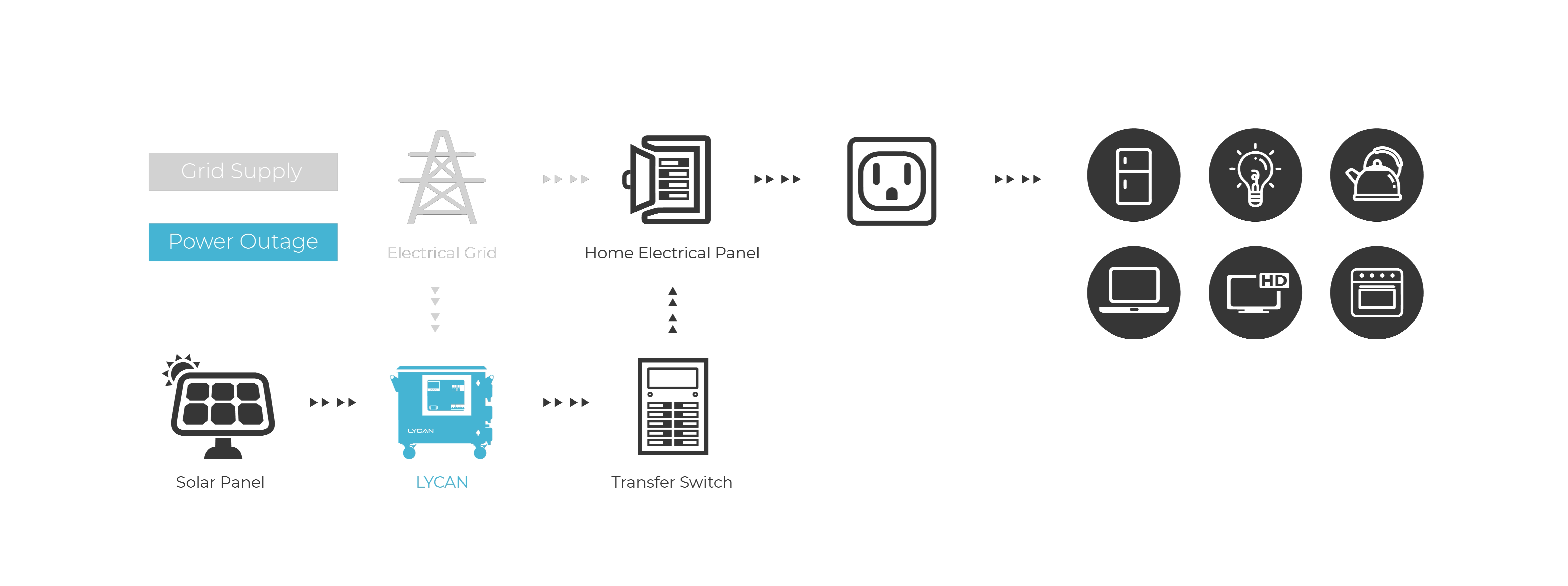

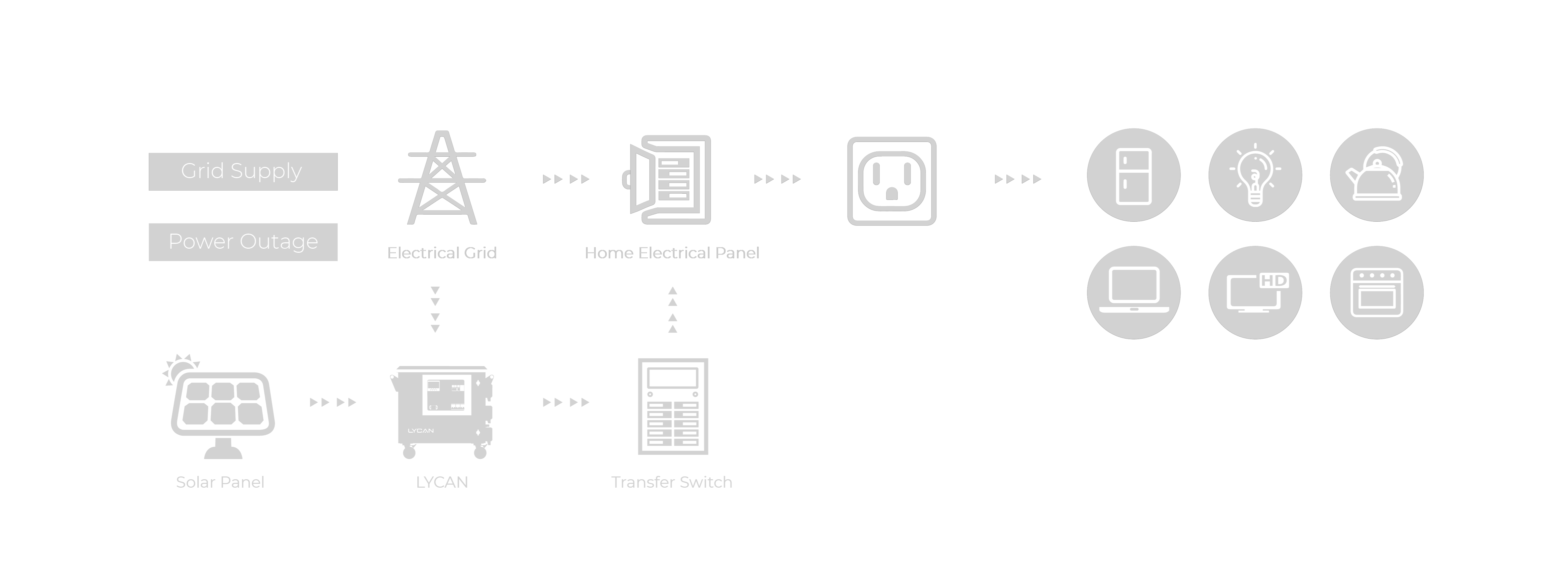

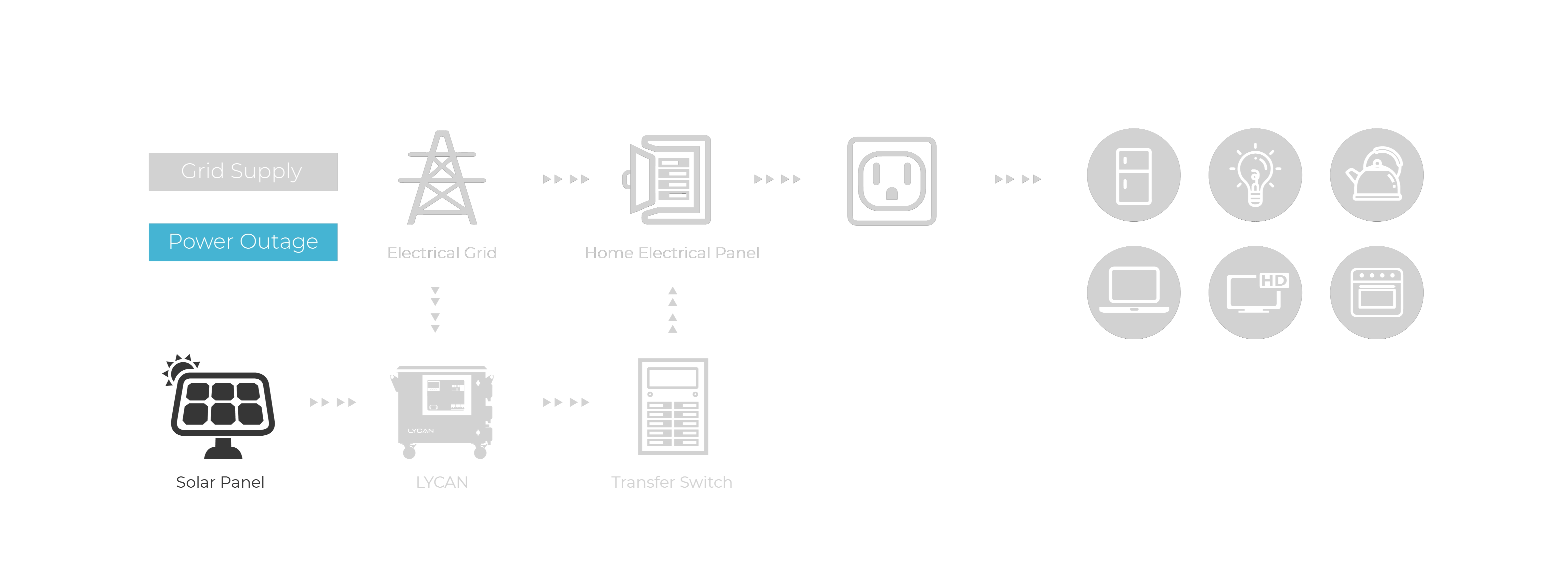

Connect the LYCAN to the electrical panel to provide 24/7 uninterrupted power. The installation is required to be completed by a licensed electrician with two additional accessories, a transfer switch and an adapter cable, which we offer the purchase along with the LYCAN 5000 Power Box.

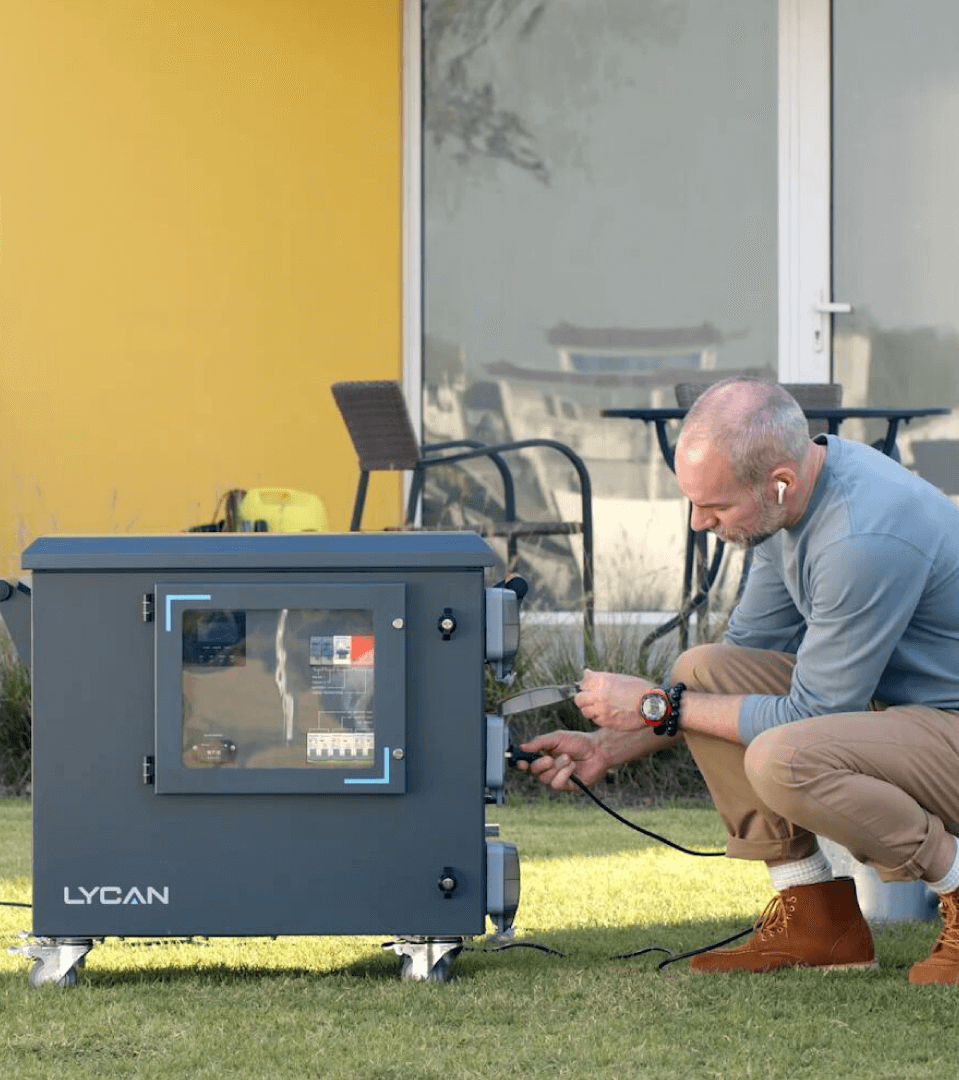

Fast Charging
The LYCAN can be recharged at 6800W input power by using solar energy
and AC grid power simultaneously.
and AC grid power simultaneously.
Solar
4400W
AC Input
2400W
Generator
2400W
With an intelligent maximum power point tracking (MPPT) algorithm, the LYCAN can maximize solar energy generation at any time of the day and obtain a full charge in as short as 2.5 hours. Connecting the LYCAN to both solar panels and AC outlets simultaneously can further shorten the charging time to
1 hour from 0% to 80%.
Powerful Output
The 4.8kWh LYCAN can easily power most heavy-duty home and outdoor appliances with a continuous power output of 3500W and peak power of up to 7000W.
One full charge gives you
Refrigerator
135W
60 Hours
TV
120W
34 Hours
Air Conditioner
1000W
6.2 Hours
Washing Machine
500W
8 Times
Coffee Maker
900W
90 Cups
Heater
1750W
2.9 Hours
Durability

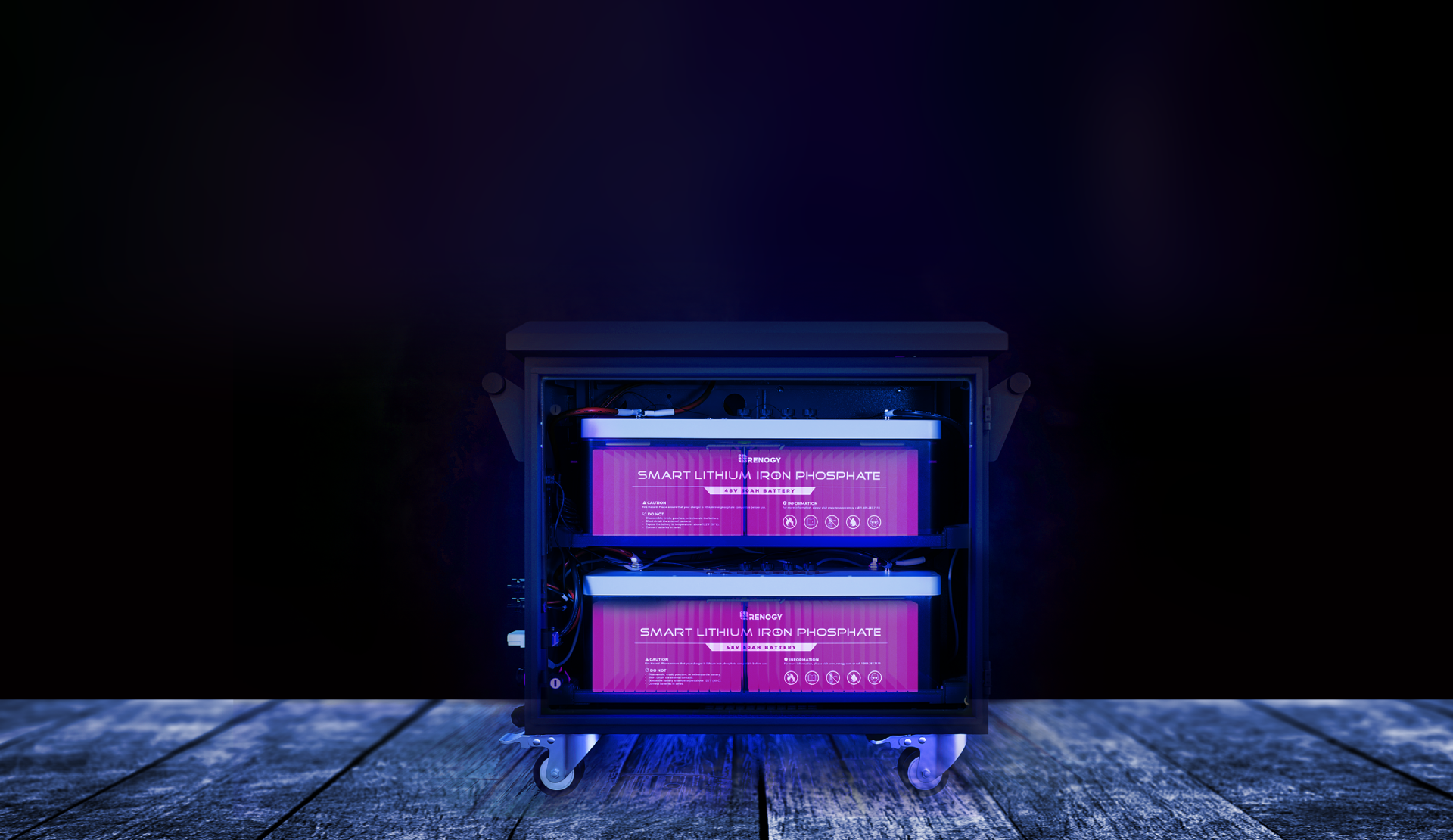

The LYCAN is equipped with state-of-the-art Renogy LiFePO4 batteries with a lifespan of 4500 cycles. Used once a day, these
batteries will last up to 10 years without dropping below 80% capacity.
4500cycles
10years
Built-in Protection
Equipped with circuit breakers and surge protection device. Preventing the influence of overvoltage, overload, and lightning strikes on the equipment to ensure safety.
Advanced pure sine wave technology provides quality AC equivalent to grid power which will protect the lifespan of your electronics and appliances.
LYCAN 5000
Power Box
Power Box
Safe for Outdoor Use (IP55)
High Solar Input (4400W)
Uninterrupted Power Supply
Long Lifespan
Clean and Quiet Operation
Other Portable
Powerstation
Powerstation
No Waterproof Design
Low Solar Input
Limited Upgrade Option
Hard to Repair
Occupy Indoor Spaces
Gas
Generator
Generator
Fuel Required
Ongoing Maintenance
High Maintenace Cost
Power Loss
High Carbon Emissions
Specifications
- Dimension 32.9 x 20.0 x 28.5 in / 835 x 508 x 724 mm
- Weight 264.6 lbs. / 120kg
- Battery Charge Current ( Max ) 100A
- Protection Rating IP55
- Output Power 3500W / 7000w ( Rated / Peak )
- Solar Input Power ( Max ) 4400W
- Operating Temperature Range 14°F~122°F / -10°C~50°C
- Battery Type Lithium lron Phosphate
- Battery Cycle Life 4500 Cycles (80% DOD)
- Rated AC Output Frequency 50Hz / 60Hz ( Adjustable )
Take control of your own energy.
