20A/30A/40A/60A/100A/200A/300A/400A ANL Fuse Set w/ Fuse

SKU: RNG-SET-ANL20-US
Write a Review
$15.99
 reward Renogy Rays
Calculater
Start group buy • $168.99 $235.99
Load More
Renogy 20A/30A/40A/60A/100A ANL Fuse Set w/ Fuse
20A/30A/40A/60A/100A/200A/300A/400A ANL Fuse Set w/ Fuse
$15.99
$15.99
Add to cart
Adding to cart… The item has been added
Shop alone
Start group buy
Option
Renogy 20A/30A/40A/60A/100A ANL Fuse Set w/ Fuse
Start group buy • $168.99 $235.99

Return & refund policy
Need help? Call us now: +1 (909)2877111
Review
Write a Review
Free Shipping
Reliable Warranty
Secure Payment


Description

The Renogy ANL fuse offers complete protection to your system, protects your charge controller, battery, inverter, and connecting wires from over-current, and ensures you get the longevity out of your system that expected. This fuse is composed of high-quality alloy and brass copper materials and comes with a clear protective non-conductive resistant cover which is ideal for custom installation and can be easily added to your solar system.



NOTE

  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us with livechat for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center



Key Features

【Safeguard Your System】

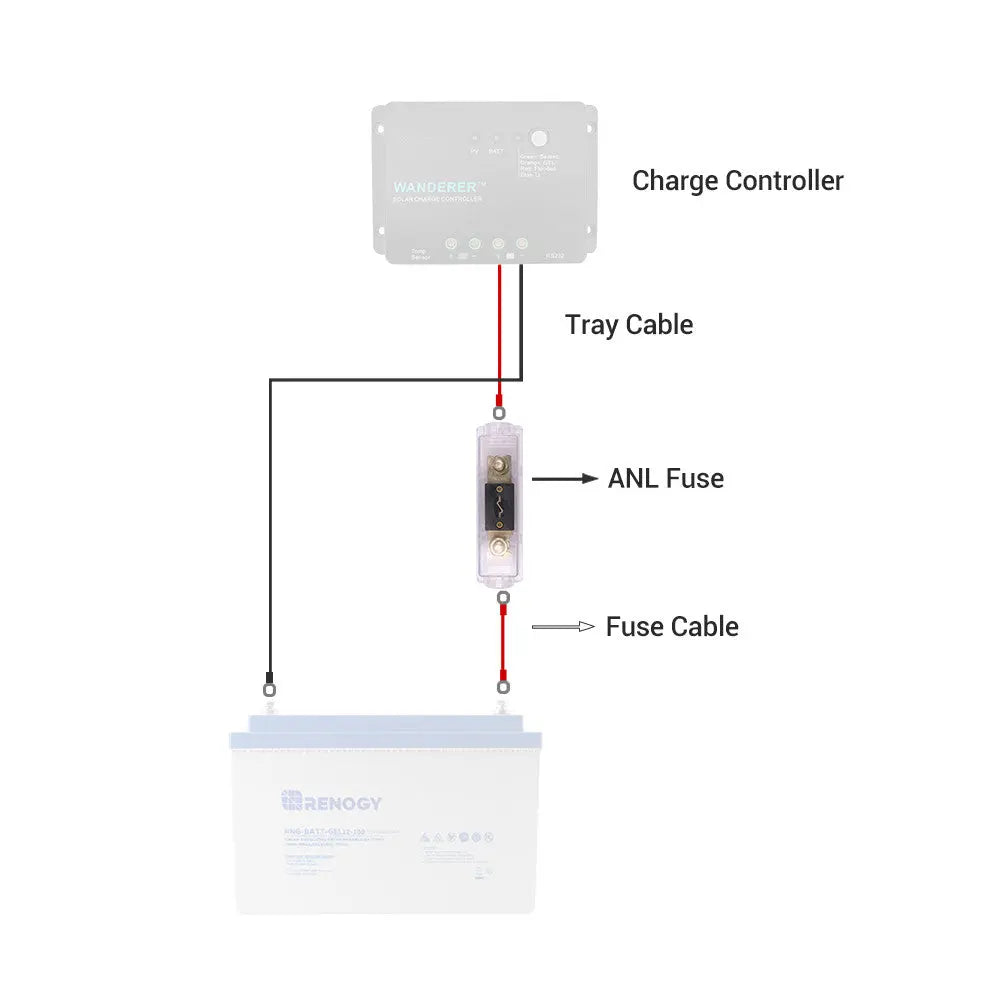

  • The Renogy ANL fuse offers complete protection to your system, protects your charge controller, battery, inverter, and connecting wires from over-current, and ensures you get the longevity out of your system that expected. Ignition protection guarantees the safe use of the fuse in RVs, boats, or any other closed environments.
【Multiple Specifications are Available】
  • Renogy offers multiple specifications of the ANL fuses to meet the requirement of different size systems. Optional specifications including 20A/30A/40A/60A/100A/200A/300A/400A.The protective cover is compatible with all specifications.
【High Quality and Easy to Use Design】

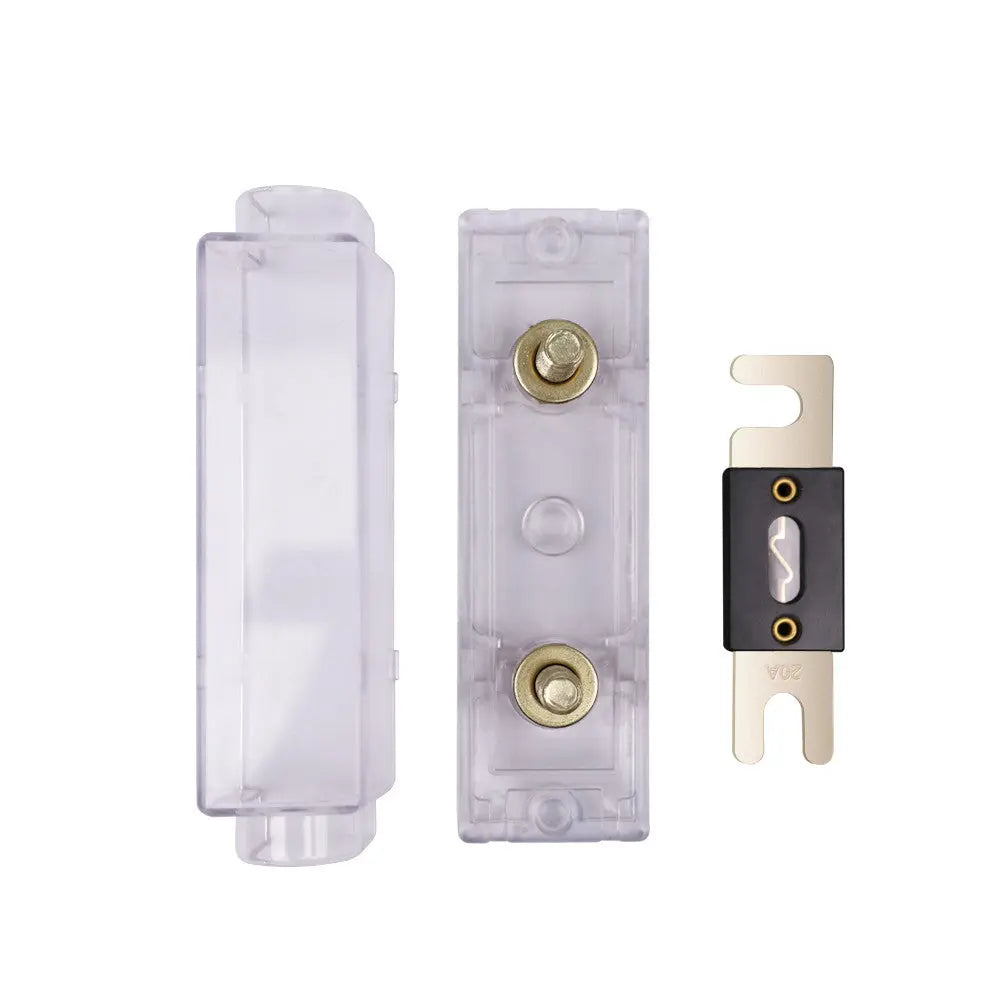

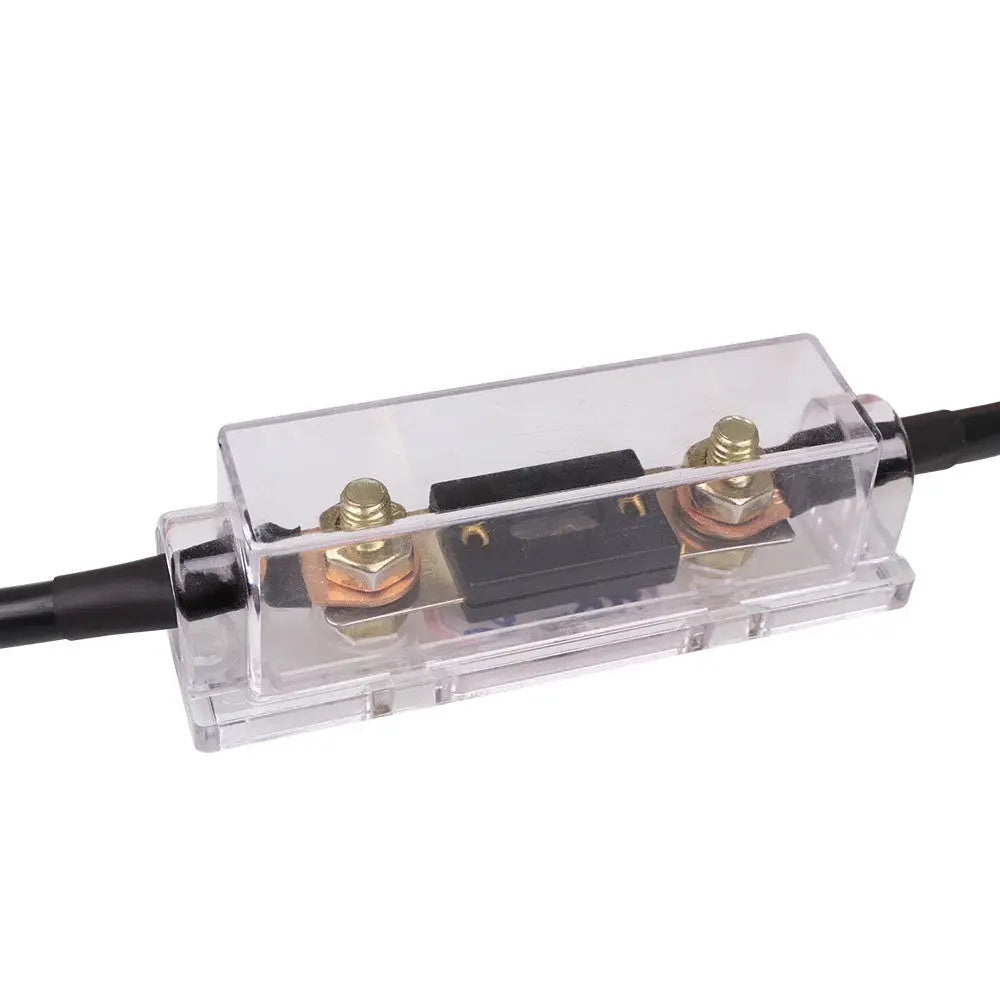

  • The Renogy ANL fuse is composed of high-quality alloy and brass copper materials and come with a clear protective non-conductive resistant cover which is ideal for custom installation and can be easily added to your solar system.
【System Suitability】
  • The fuse is designed to work with RENOGY ANL Fuse Block.
【Environment Friendly】

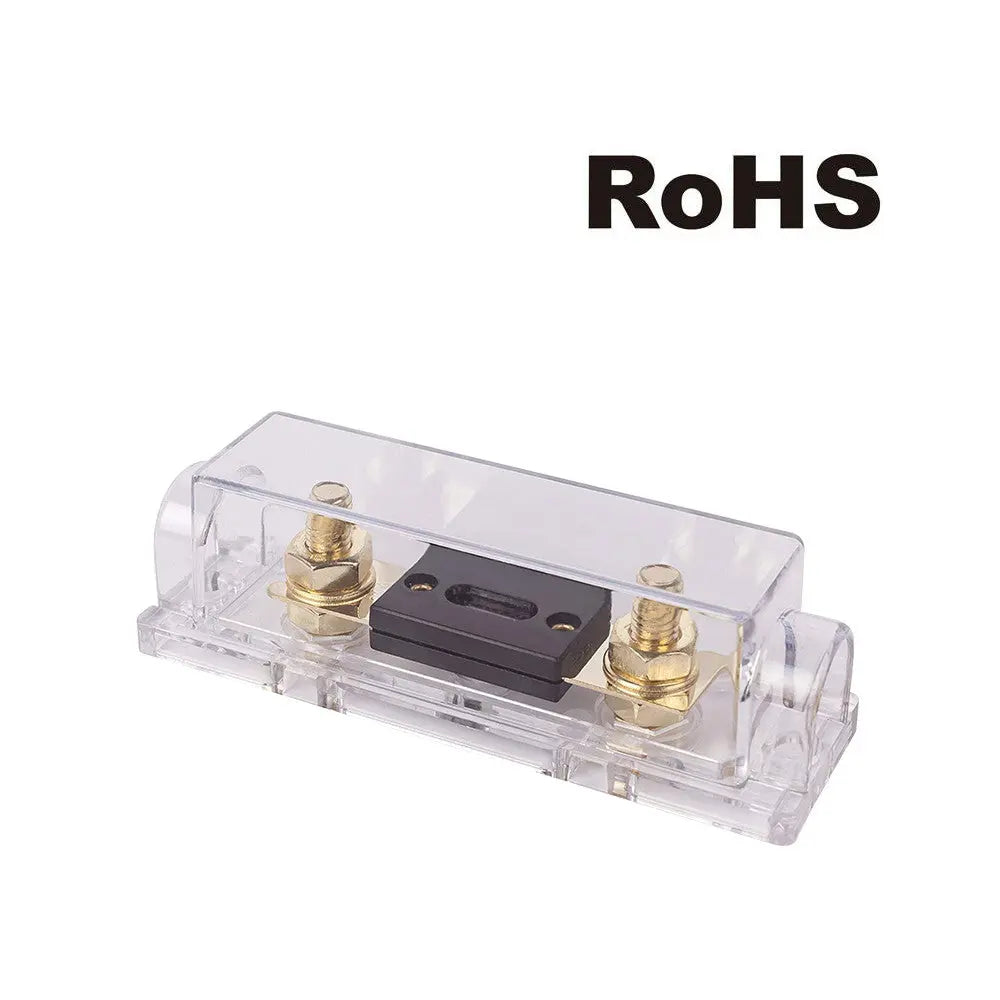

  • The Renogy ANL fuse is RoHS compliant, which confirms that it's free from environmentally hazardous, difficult-to-dispose substances.

Package Includes

Renogy 20A/30A/40A/60A/100A/200A/300A/400A ANL Fuse Set w/ Fuse

1 x

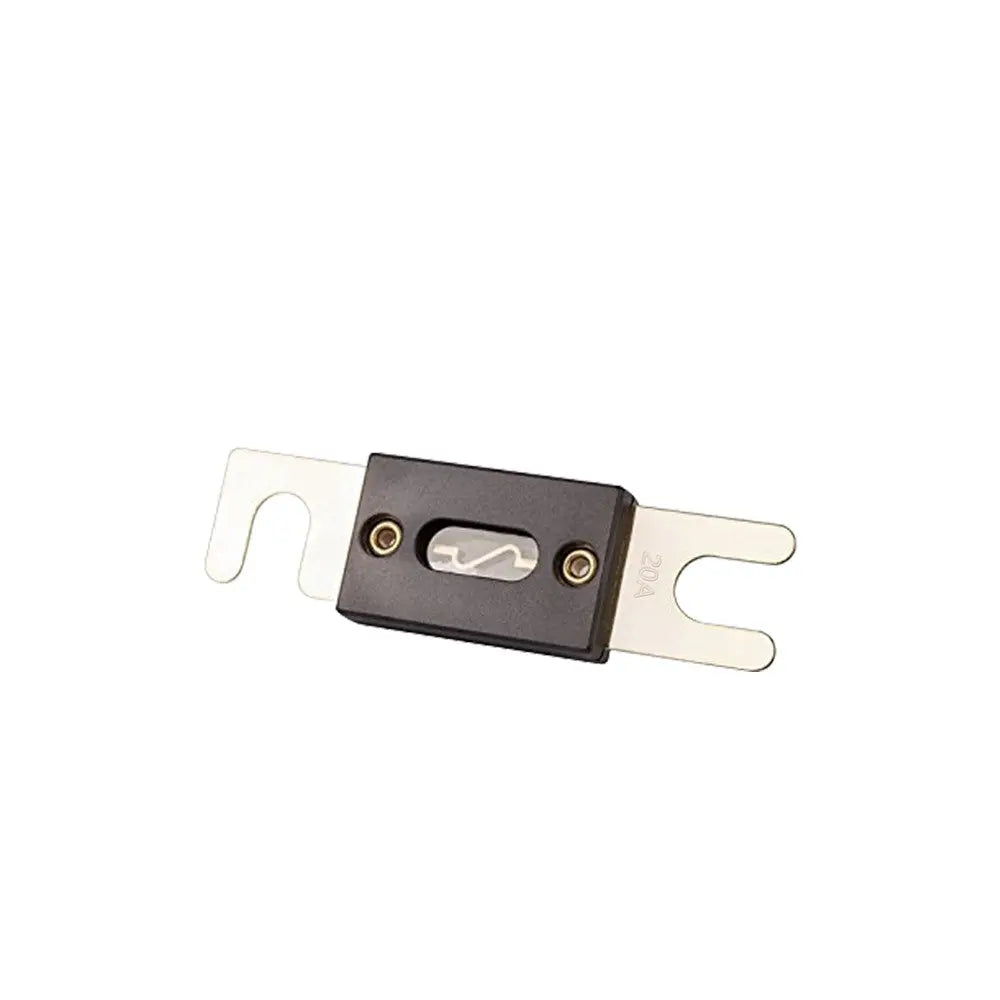

Renogy 20A ANL Fuse Set (Included Fuse)
Current Rating: 20A Voltage Rating: 72V
Interrupt Capacity: 40A
Renogy 30A ANL Fuse Set (Included Fuse)
Current Rating: 30A Voltage Rating: 72V
Interrupt Capacity: 60A
Renogy 40A ANL Fuse Set (Included Fuse)
Current Rating: 40A Voltage Rating: 72V
Interrupt Capacity: 80A
Renogy 60A ANL Fuse Set (Included Fuse)
Current Rating: 60A Voltage Rating: 72V
Interrupt Capacity: 120A
Renogy 100A ANL Fuse Set (Included Fuse)
Current Rating: 100A Voltage Rating: 72V
Interrupt Capacity: 200A
Renogy 200A ANL Fuse Set (Included Fuse)
Current Rating: 200A Voltage Rating: 72V
Interrupt Capacity: 400A
Renogy 300A ANL Fuse Set (Included Fuse)
Current Rating: 300A Voltage Rating: 72V
Interrupt Capacity: 600A
Renogy 400A ANL Fuse Set (Included Fuse)
Current Rating: 400A Voltage Rating: 72V
Interrupt Capacity: 800A


Warranty Information

Panels

25-year transferable power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty

Accessories 1-year material warranty

1. Can the fuse be replaced or does the entire device have to be replaced?


Yes, easily removed and replaced.

2. Mentions a renogy fuse block which i cant find any recommendations for substitutes or links to it?

You can get any fuse holder you want as long as it has the appropriate size fuse to protect the wire. Example-30A for#10 wire. Renogy makes them and also Installgear.

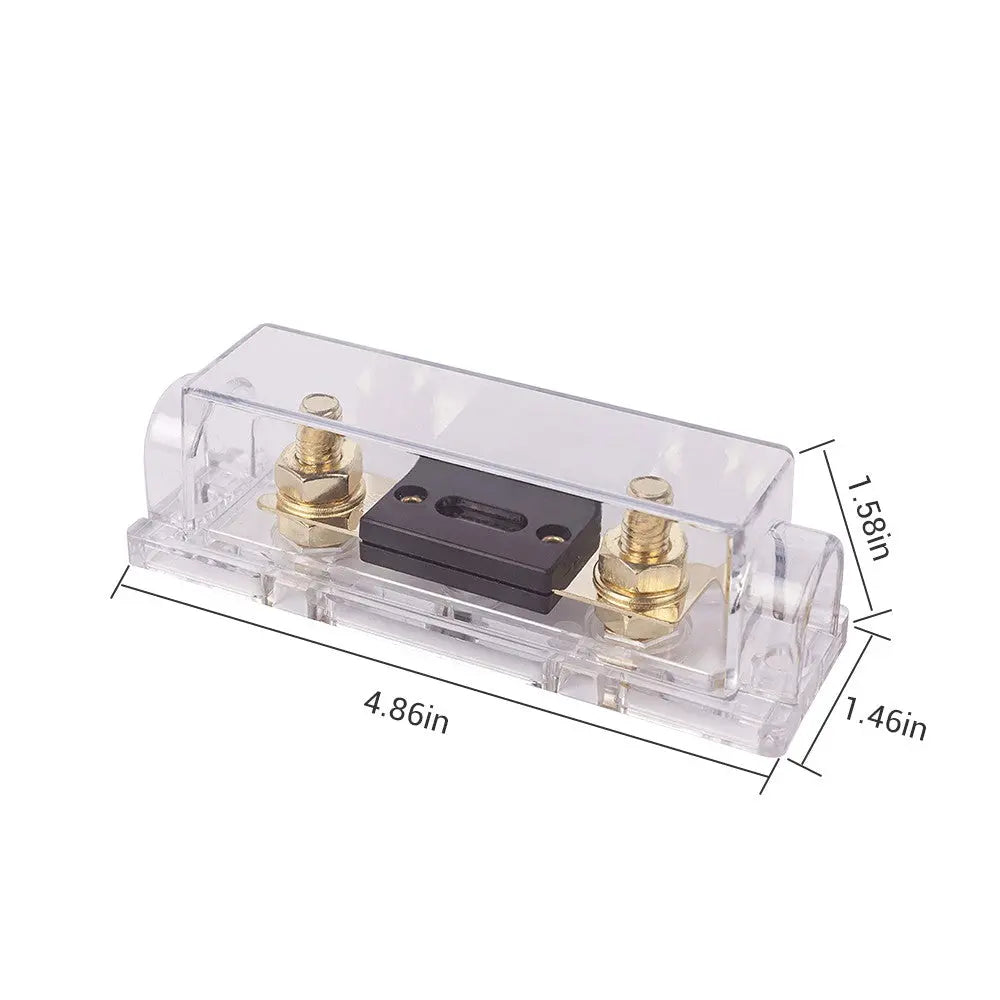

3. What size posts on this holder? Or what size lug works?

The post are 5/16 stud.
4. How do you select the fuse size? Go with the charge controller rating or go one up from there?

20 amp solar charger with 12volt 100 watt solar panel.

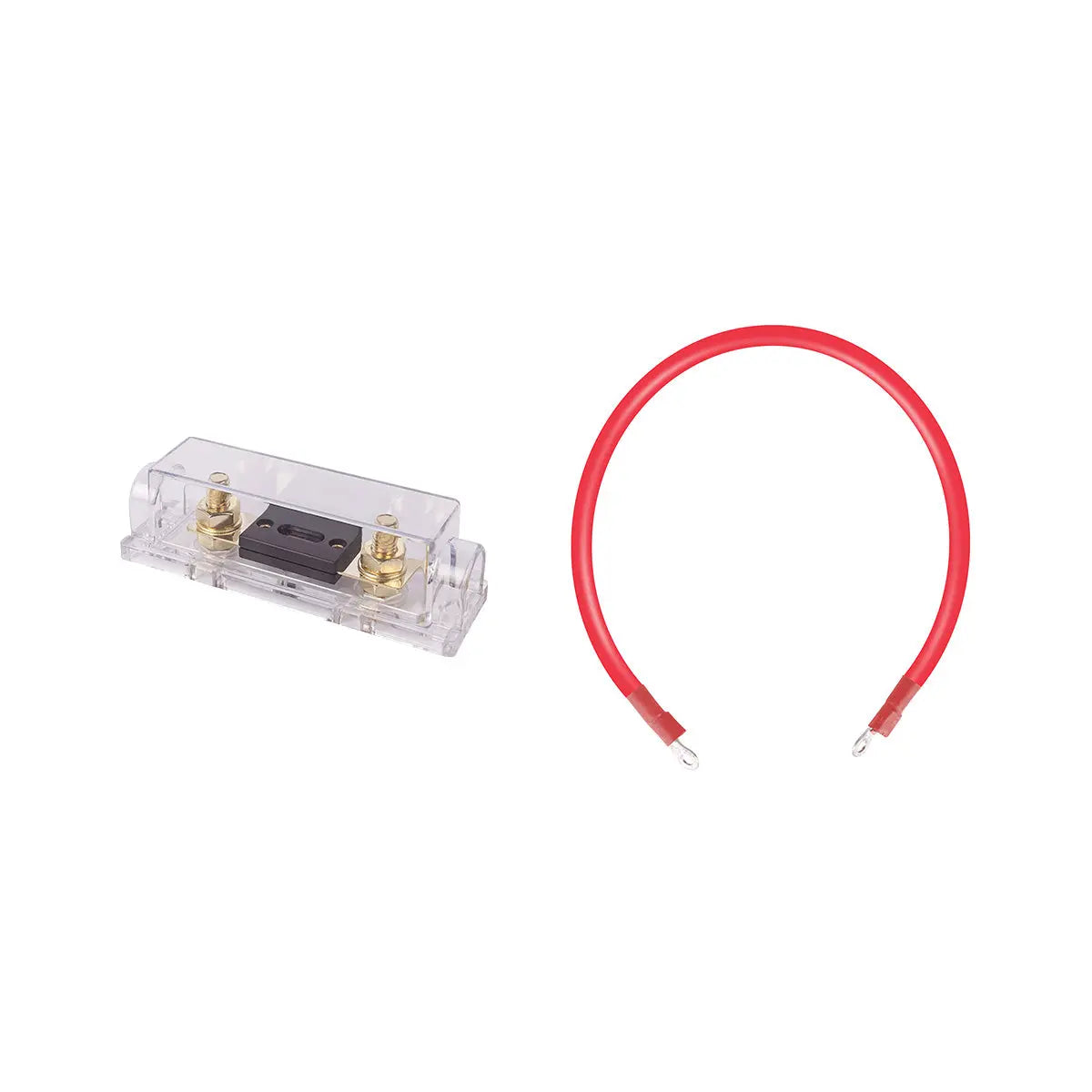

5. Does this include a short fuse cable?

NO, cable is provided you must purchase your own cable separately, which can be found at any Auto parts store.
More questions about your off-grid power system? Learn more from Renogy Learning Center!


Certification



26 Reviews Hide Reviews Show Reviews

  • 5
    Worth the money for the quality!

    Posted by Jayson stebbins on Sep 22nd 2022

    Great quality and looks nice. Holds up to its rated amperage.

  • 5
    ANL Fuse

    Posted by NN on Sep 21st 2022

    Works great! Delivered as expected. No issues yet. Renogy Support is great!

  • 5
    Well made

    Posted by Omar on Sep 5th 2022

    Very well made fuse set! Recommended for purchase!

  • 5
    20 & 40 amp ANL fuse blocks

    Posted by Ray on Aug 5th 2022

    Worked fine in a restricted space on our solar controller and charger on our travel trailer

  • 5
    Well built

    Posted by BR on May 4th 2022

    Easy mounting, it's a quality item. The fuse is will protected from accidentally touching.

  • 5
    40 amp fuse

    Posted by Darry Piper on Mar 4th 2022

    Came to my house quickly, was exactly what I ordered. I easily installed it and it works fine.

  • 4
    Works but cheap looking.

    Posted by Gary on Nov 7th 2021

    Works good but seems cheap. A little fearful to tighten nuts on the studs for fear of the plastic might break. Same for the mounting holes. I hope it holds up under the hood. Wish it could have been made of a sturdier material.

  • 5
    Fuse

    Posted by Josh tolleson on Oct 30th 2021

    It’s a fuse. Looks good, haven’t tripped it yet. Don’t want to test it.

  • 5
    Fuse box

    Posted by Rochelle on Oct 28th 2021

    These work great. We have several of them for our off grid solar panels.
