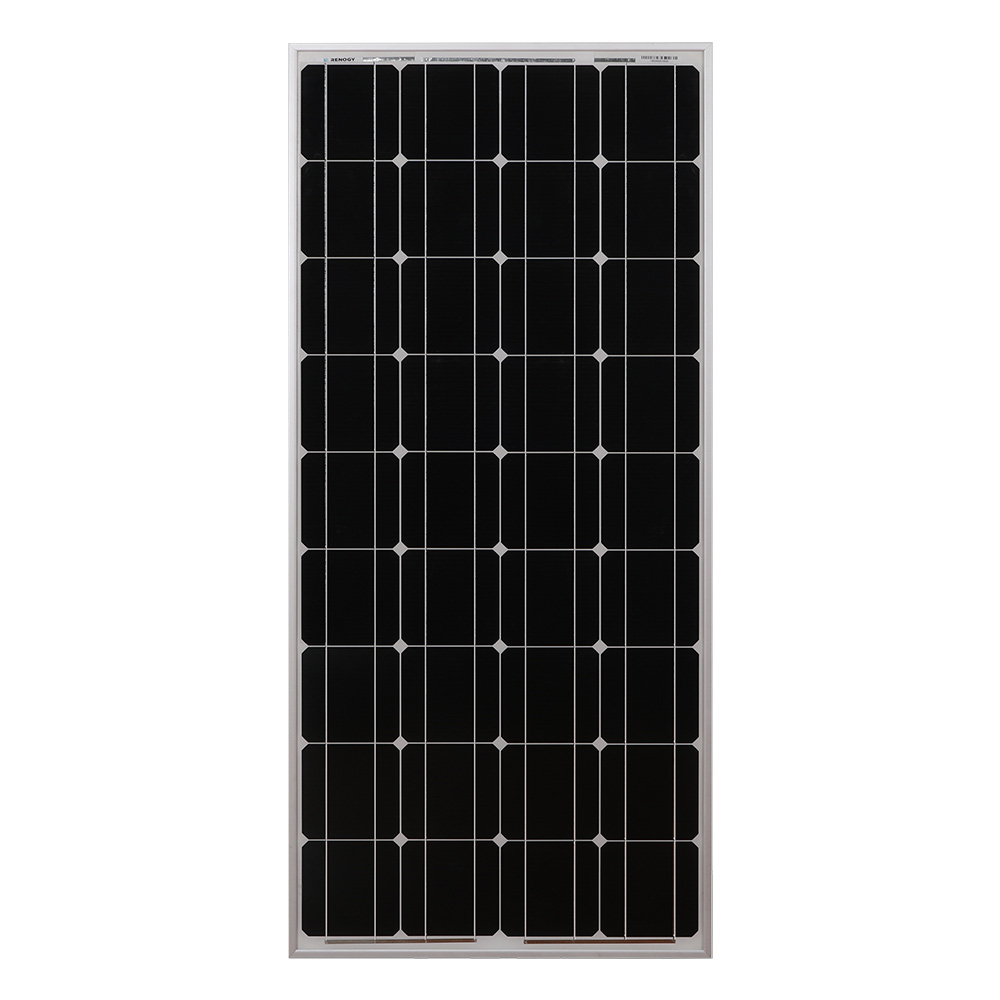

100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel

Quantity: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
$125.99
$139.99
x1

100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel

SKU: RSP100DL-36-US
Write a Review
SAVE $14.00
10%OFF
$125.99
$139.99
+ 1250   Renogy Rays after purchase.
  Learn more
- Extremely Flexible, Up to 240°.
- Ultra Lightweight and Ultra Thin.
- Unmatched durability against hurricanes and hailstorms.
- Seamless integration with diverse roof shapes and types.
- Effortless mounting eliminates wear and tear.
Load More
See the specs
100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel
100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel
$125.99
$139.99
$125.99
$139.99
Add to cart
Adding to cart… The item has been added
Shop alone
Start group buy
Want to purchase in bulk? Request Bulk Purchase Prices

Return & refund policy
Need help? Call us now: +1 (909)2877111
Review
Buy more save more
Frequently bought together
This Item
Rover Li 40 Amp MPPT Solar Charge Controller
G2 Version Controller Only (Communication port
$179.99
$189.99
x1
Add To Bundle G2 Version
+
Frequently Bought With
Rover Li 40 Amp MPPT Solar Charge Controller
G2 Version Controller Only (Communication port
$179.99
$189.99
x1
Add To Bundle G2 Version
$12.99
$19.99
x1
Add To Bundle Added
View more bundles
This Item
$125.99
+
Rover Li 40 Amp MPPT Solar Charge Controller
x 1 + $179.99
Total Bundle Price
$329.98
$305.98
Add Bundle to Cart
Total Bundle Price

KEY FEATURES

【High Power Output】 The Renogy Black Division 100W Lightweight Monocrystalline Solar Panel can provide an average of 500 Watt-hours of electricity per day (depending on sun availability).
【Easy to Transport, Carry and Install】 The solar panel suits most curved surfaces as it is bendable within 240 degrees. It weighs only 1/3 of the rigid panel and presents an all-black glare-free appearance.
【Industry-leading Tech】 It is equipped with half-cut PERC cell technology that enhances solar light capture and electrical performance, therefore improving the output efficiency.
【Reliable and Durable】 This solar panel accomplishes with IP67 rated waterproof junction box and solar connectors. Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind.
【Ready for Installation】 The panel comes with pre-drilled mounting holes and 2.3 feet long solar connector cables for quick and easy installation.




The Renogy Black Division 100W Lightweight Monocrystalline Solar Panel enhances module efficiency while minimizing its weight. It is the perfect option for any off-grid solar system, especially for transportation applications such as RVs and boats. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.

This solar panel combines high efficiency (PERC) monocrystalline solar cells with half-cut cell technology to improve electrical performance and power generation efficiency. This panel comes with pre-drilled mounting holes, solar connectors, and a junction box that allows easy and fast installation.

100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel
Perfect for Curved Surfaces

It works with most curved surfaces, bending up to 240 degrees.

Presenting an all-black glare-free appearance.

100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel
Reliable & Durable

This Renogy solar panel provides an average of 500 watt-hours of electricity per day, depending on sunlight.

It offers 5-year material and workmanship warranty and has passed the CE test.

This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.

100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel
Extreme Weather Endurance

Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind load.

Provide excellent durability in a harsh environment.

100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel
Safety Protection

When there is no sunlight, the diode prevents reverse current flow from the battery to the solar panel, protecting the panel from current damage.

100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel
Ready for Installation

This Renogy solar panel comes with pre-drilled holes for quick installation. Besides, it can also be bonded to the surface by using silicone adhesive or velcro.

The 2.3-foot solar connector cables ensure no length limitations.

100 Watt 12 Volt Black Division Lightweight Monocrystalline Solar Panel
Waterproofness and Extendibility

The IP67 rated waterproof junction box and solar connectors ensure that water and dust will not enter during extended outdoor use.

Cables attached on the back with Solar Connectors are ready for connection and extension.

NOTE
  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK


Package Includes



Black Division 100W Lightweight Monocrystalline Solar Panel

Black Division 100W Lightweight Monocrystalline Solar Panel

1 x




BUILT-IN COMPONENTS

Output Cables: 12 AWG (2.3ft per cable)

Cell Type: PERC Monocrystalline (6.5 x 3.3 in)

Number of Cells: 36 (12 x 3)

Junction Box: IP 67

Fire Rating: Class A

opc:


SPECIFICATIONS

Maximum Power at STC: 100W

Module Efficiency: 15.7%

Optimum Operating Voltage (Vmp): 19.4V

Open-Circuit Voltage (Voc): 23.5V

Optimum Operating Current (Imp): 5.20A

Short-Circuit Current (Isc): 5.51A

Operating Temperature: -40℃ to 80℃ (-40℉ to 176℉)

Maximum Series Fuse Rating: 15A

Maximum System Voltage: 600V DC

Rated Current (MC4 Solar Connectors): 35 A

Weight: 2.4 kg / 5.3 lbs

Dimensions: 1093 x 582x 2.5mm (43 x 23 x 0.1 in)

Maximum AWG Size Range (MC4): 10 AWG

Certifications: CE, ISO

Material and workmanship warranty: 5 years

Performance Warranty: 5 year 90% output warranty



Downloads

Renogy 320W 24V Mono Solar Panel 120-cell

FAQ

1. What do I need to complete my off-grid solar power system?


A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.

2. What do off-grid and on-grid mean?


On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.

3.Why is my solar panel underproducing?


Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.

4. How should I connect solar panels to an electrical circuit (series vs parallel)


Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.

5. How many solar panels do I need?


The best way to gauge how many solar panels you need is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly, decide how many panels or how much power input is needed.

6. Can I walk on flexible solar panels?


We suggest not. Walking on solar panel will exert excessive pressure on small area, it may cause cracks and damage of the panel.

7. Can this solar panel be adapted to a 12V Marine Battery or 48V Lithium Battery?


Yes, it can. The optimum operating voltage of this 550W solar panel is 41.97V. So it's suitable to use for charging your 12V Marine Battery and 48V Lithium Battery (by connecting at least two solar panels in series). Please note that you need to connect the solar panel(s) to a Charge Controller supporting a 12V or 48V system.

8. How to clean solar panels?



You can clean the panels with a non-abrasive sponge and water.

We suggest regular maintanence to swipe the dust, sand and other dirts away. Built up dirt and stain will reduce the power output of the panel.

More questions about your off-grid power system? Learn more from Renogy Learning Center!
